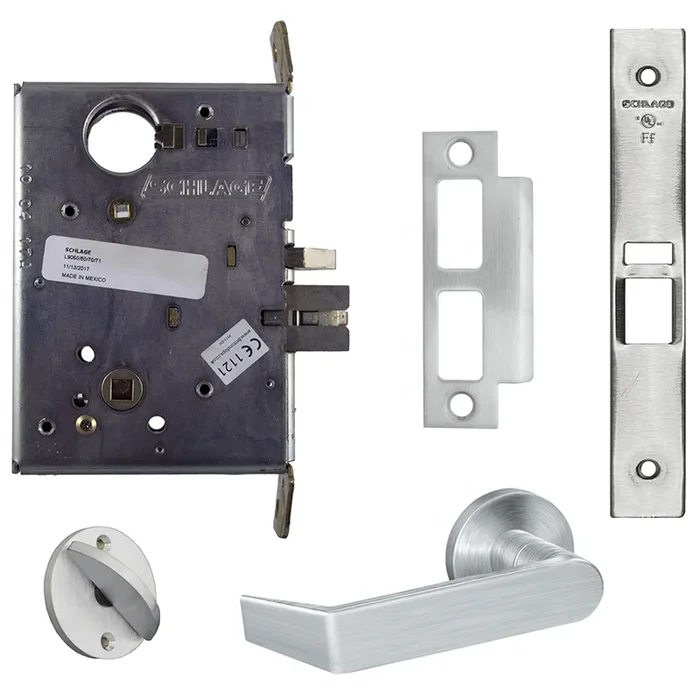

Storeroom Mortise Lock Less Cylinder with 06 Lever and A Rose Satin Chrome Finish – Schlage Commercial

Description

Schlage L9080L06A626 Storeroom Mortise Lock, 06 Lever, A Rose, Satin Chrome Finish

Schlage Commercial L9080L06A626 Storeroom Mortise Lock Less Cylinder with 06 Lever and A Rose Satin Chrome Finish offers an exceptional blend of security and ease of use, ideal for storeroom applications. This durable lock features a latchbolt that can be retracted by key from the outside or by knob/lever from the inside, ensuring quick egress while keeping the exterior knob/lever inoperative for added security.Constructed to exceed ANSI/BHMI Certified A156.13-2012 standards, this lock is classified as Commercial Grade 1, guaranteeing reliable performance in demanding environments. Its mortise lock body fits neatly into the edge of doors with a thickness of 1-3/4 inches, while the satin chrome finish provides a sleek and modern aesthetic. The L9080 model is UL listed for use on 3-hour fire doors, enhancing safety in case of emergencies. With a reversible handing feature and a dimension of 2-1/8″ rose with a 4-5/8″ lever, this lock is both versatile and user-friendly. Backed by a limited 10-year mechanical and 3-year electro-mechanical warranty, the Schlage L9080L06A626 ensures long-lasting security and peace of mind for any commercial space.

Storeroom Mortise Lock Less Cylinder with 06 Lever and A Rose Satin Chrome Finish

For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.

• Handing:
• L9000 Series lock bodies are field-reversible without disassembly. L400 Series locks are non-handed.
• Door thickness: 1-3/4″ (44 mm) standard. 1-3/8″ (35 mm) to 2-1/2″ (64 mm) optional. Over 2-1/2″ (64 mm) door ranges vary by function. No escutcheon available for 1-3/4″ (44 mm) doors standard. 2″ to 2-3/8″ (51 mm to 60 mm) optional. Specify door thickness if other than 1-3/4″.
• Backset: 2-3/4″ (70 mm) only.
• Armored front:
• L9000 Series: 1-1/4″ x 8″ x 7/32″ (32 mm x 203 mm x 6 mm) standard. 1-1/16″ x 8″ x 1-7/32″ (27 mm x 203 mm x 6 mm) optional.
• L400 Series: 4-7/16″ x 3-5/8″ x 1″ (113 mm x 92 mm x 25 mm)
• Case size:
• L9000 Series: 4-7/16″ x 6-1/16″ x 1″ (113 mm x 154 mm x 25 mm)
• Spacing: Knob or lever to cylinder, 3-7/8″ (98mm); knob or lever to thumbturn hub, 2-11/16″ (68mm).
• Bolts: 1″ (25mm) throw stainless steel deadbolt and 3/4″ (19mm) throw stainless steel latch with anti-friction tongue.
• Exposed trim:
• Knobs: #41 and #42 heavy-duty wrought brass, bronze or stainless steel knobs match D Series knobs.
• Levers: Forged brass or bronze and cast stainless steel. Designs available to match D Series levers. 93 Lever design: Extruded brass, bronze or stainless steel. Mediterranean designs: Forged-brass lever and rose.
• Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.
• Trim combinations: Available with knob both sides, lever both sides, or knob and lever with rose or escutcheon both sides.
• Strike: L9000 Series: ANSI curved lip strike 1-1/4″ x 4-7/8″ (32 mm x 124 mm) x 13/16″ (30 mm) lip to center with dust box standard. L400 Series: 1-1/8″ x 3-5/8″ (29 mm x 92 mm) with dust box.
• Cylinder & keys: 6-pin Everest C123 keyway cylinder with two patented keys standard.
• Storeroom – Latchbolt Retracted by Key Outside or by Knob/Lever Inside, Outside Knob/Lever Always Inoperative, Auxiliary Latch Deadlocks Latchbolt When Door is Locked, Inside Knob/Lever is Always Free for Immediate Egress
• Commercial Grade 1
• UL Listed for 3 Hour Fide Door
• ANSI/BHMI Certified A156.13-2012
• Lock Body Mortises Inside the Edge of the Door
• Tested and certified to ANSI/BHMA grade 1 operational and security standards
• UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
• Deadbolt features include anti-saw pin in bolt to prevent cut-through
• Security blocking hub prevents lock access by removing levers
• Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
• Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
• Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
• Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
• Two piece anti-friction tongue in latch bolt reduces wear
• Breakaway spindle keeps door secured in the event of vandalism
• Field reversible latch bolt allows handing change without opening case
• Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

Attributes

Manufacturer surcharge: 4.5%

Alternate Codes: L9080L06A626

Ansi: A156.13-2017 Series 1000

Ansi Function: F07 – Storeroom/Exit

Baa Qualified: Yes

Backset: 2-3/4″ Backset

Bolt Projection: 3/4″ Latch

Bolt Protection: 3/4″

Burglar Rated: No

Category: Mechanical Commercial Locksets

Commercial Residential: Commercial

Country of Origin: Mexico

Country of origin: Mexico

Cylinder Included: No

Cylinder Type: Full Face Cylinder

Dimension: 2-1/8″ Rose with 4-5/8″ Lever and 2-1/2″ Projection

Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets

Door Bore Size: 2-1/8″

Door Range: 1-3/4″

Door Thickness: 1-3/4″

Door Thickness Min: 1-3/4″

Dust Box: Plastic

Finish: Satin Chrome

Finish Code: 626

Finish Color: Satin Chrome

Finish : Satin Chrome

Finish Family: Matte Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 9080-Storeroom Lock

Function Family: Storeroom

Grade: Grade 1

Hand: Field Reversible

Handing: Reversible

Hazardous Material: NO

Installation: Commercial

Knob/ Lever Design: 06

Knob/ Lever Style: Lever

Latch Bolt Face Type: Square Corner

Latch Bolt Faceplate Size: 8″ x 1-1/4″

Latch Bolt Throw: 3/4″

Latch Bolt Type: Deadlatch

Latch Faceplate Dimension: 1-1/4″ x 8″

Lever Design: 6

Lever Knob Design: 06 – Lever

Leverknob Design: 06 Lever

Leverknob Design Family: Straight Return Lever

Limited Warranty: 3 Years

Lock Category: Mortise Lock

Lock Face Size: 8″ x 1-1/4″

Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty

Material: Zinc Base

No Of Inners: 1

Order_ Qty: 1

Origin: Mexico

Pack Height: 5.63″

Pack Height 2: 5.63″

Pack Length: 10.38″

Pack Length 2: 10.38″

Pack Qty: 1

Pack Volume: 313.68 in³

Pack Volume 2: 313.68 in³

Pack Width: 5.38″

Pack Width 2: 5.38″

Pocket Dimensions: 6-5/8″ x 4-1/2″

Projection: 2-1/2″

Restrictions: None

Rose Escutcheon Design: A – Rose

Rose/ Escutcheon: A Rose

Rose/ Escutcheon Size: 2-1/8″

Rose/ Escutcheon Style: Rose

Roseescutcheon Design: A Rose

Roseescutcheon Dimensions: 2-1/8″

Screws: Combination

Series: L Series

Ship Weight: 6.3 lbs.

Std Latch Backset Dim: 2-3/4″

Std Latch Type: Dead Latch (Guarded)

Std Strike Height: 4-7/8″

Std Strike Number: 10-072 1316 626

Std Strike Type: ANSI Strike

Std Strike Width: 1-3/16″

Strike: ANSI Strike

Strike Dimension: 4-7/8″ with 1-1/4″ Lip

Strike Height: 4-7/8″

Strike Number: 10-072

Strike Size: 4-7/8″ x 1-1/4″

Strike Type: ASA

Strike Width: 1-1/4″

Subcategory: Mortise Locksets

Subtype: Mortise Lock

Supplier: Schlage

Type: LOCK SETS

Ul Listing: UL Listed

Ul Listing Type: UL Listed for 3 Hour Fire Door

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 6
