Storeroom Deadbolt Mortise Lock with Large Format IC Less Core – Schlage Commercial

Description

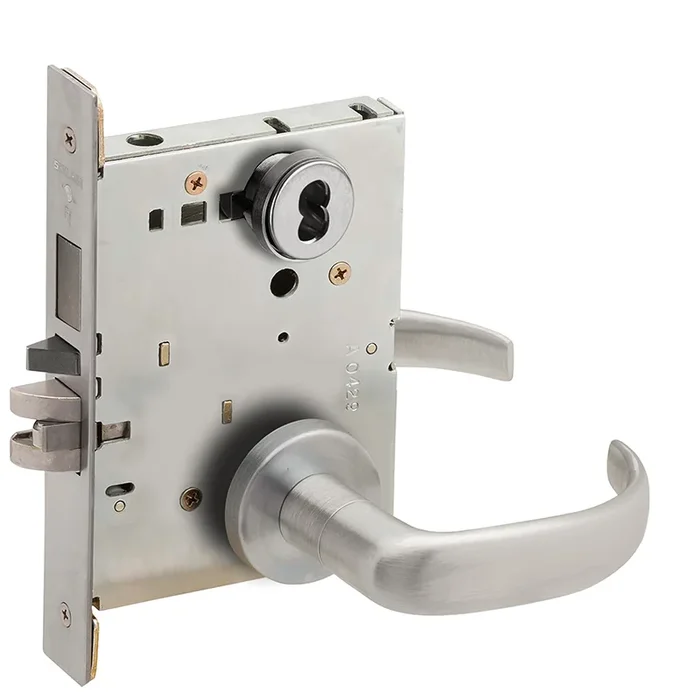

Schlage L9480J17A630 Storeroom Mortise Lock with Deadbolt, Large Format IC Core, Satin SS Finish

Schlage Commercial L9480J17A630 Storeroom with Deadbolt Mortise Lock offers robust security and convenience for commercial environments. Designed with a storeroom function, this lock features a deadbolt mechanism that ensures enhanced protection for high-traffic areas, making it an ideal choice for storerooms and utility spaces. The large format interchangeable core allows for easy rekeying, providing flexibility and adaptability for evolving security needs. Crafted with a satin stainless steel finish, this lock not only delivers durability but also complements modern architectural styles with its sleek aesthetic. The reversible handing makes installation straightforward, accommodating various door configurations effortlessly. With a 2-3/4″ backset, the L9480J17A630 is compatible with ANSI strike plates, ensuring a secure fit for your door. Measuring a 2-1/8″ rose with a 4-3/4″ lever and a 3″ projection, this mortise lock is both functional and visually appealing. Whether for new construction or retrofitting existing doors, the Schlage L9480J17A630 delivers reliable performance and peace of mind. Its design and features make it a smart investment for anyone focused on safety and style in their building projects.

Storeroom with Deadbolt Mortise Lock with Large Format IC Less Core with 17 Lever and A Rose Satin Stainless Steel Finish

• Commercial Grade 1
• UL Listed for 3 Hour Fide Door
• ANSI/BHMI Certified A156.13-2012
• Lock Body Mortises Inside the Edge of the Door
• L Series

Attributes

Baa Qualified: Yes

Backset: 2-3/4″ Backset

Base Material: Stainless Steel

Bolt Projection: 3/4″ Latch, 1″ Deadbolt

Bolt Protection: 3/4″ Latch, 1″ Deadbolt

Category: Mechanical Commercial Locksets

Commercial Residential: Commercial

Country of Origin: Mexico

Country of origin: Mexico

Cylinder Type: Schlage FSIC Less Core

Dimension: 2-1/8″ Rose with 4-3/4″ Lever and 3″ Projection

Door Range: 1-3/4″

Door Thickness: 1-3/4″

Dust Box: Plastic

Finish: Satin Stainless Steel

Finish Code: 630

Finish : Satin Stainless Steel

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 9480-Storeroom Lock w Deadbolt

Grade: Grade 1

Hand: Field Reversible

Handing: Reversible

Hazardous Material: NO

Installation: Commercial

Latch Faceplate Dimension: 1-1/4″ x 8″

Lever Knob Design: 17 – Lever

Leverknob Design: 17 Lever

Limited Warranty: 3 Years

Lock Face Size: 8″ x 1-1/4″

Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty

Material: Zinc Base

No Of Inners: 1

Order_ Qty: 1

Origin: Mexico

Pack Height: 5.63″

Pack Height 2: 5.63″

Pack Length: 10.38″

Pack Length 2: 10.38″

Pack Qty: 1

Pack Volume: 313.68 in³

Pack Volume 2: 313.68 in³

Pack Width: 5.38″

Pack Width 2: 5.38″

Rose Escutcheon Design: A – Rose

Roseescutcheon Design: A Rose

Screws: Combination

Series: L Series

Ship Weight: 6.3 lbs.

Std Strike Height: 4-7/8″

Std Strike Number: 10-072

Std Strike Type: ASA

Std Strike Width: 1-1/4″

Strike: ANSI Strike

Strike Dimension: 4-7/8″ with 1-1/4″ Lip

Strike Height: 4-7/8″

Strike Number: 10-072

Strike Type: ASA

Strike Width: 1-1/4″

Subcategory: Mortise Locksets

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing Type: UL Listed for 3 Hour Fire Door

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 6
