Description

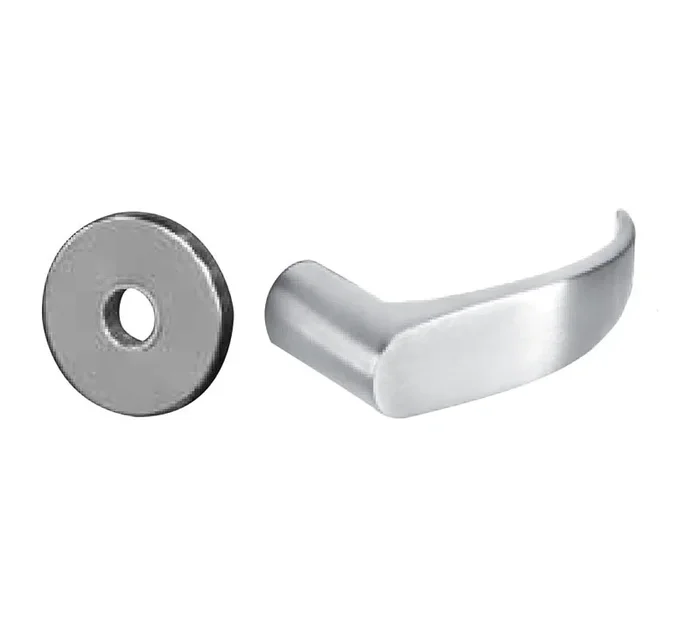

Sargent LC8204LNP26D Storeroom Mortise Lock, P Lever, LN Rose, Satin Chrome Finish
Sargent LC8204LNP26D Storeroom Closet Mortise Lock with P Lever and LN Rose Less Cylinder Satin Chrome Finish delivers a combination of security and style ideal for commercial applications. Designed for storeroom closets, this mechanical lockset features a convenient reversible handing, allowing for flexible installation options to suit various door configurations. With a durable satin chrome finish (26D), the LC8204 not only offers a sleek aesthetic but also enhances resistance to wear and corrosion. The 2-3/4″ backset and a 1-1/4″ x 8″ latch faceplate ensure a precise fit for standard door thicknesses of 1-3/4″. The lockset includes a robust ASA strike measuring 1-1/4″ x 4-7/8″, promoting secure closure. The P lever design, combined with a 5-1/2″ lever length and a 2-1/2″ projection, provides ergonomic ease of use while the LN rose adds a refined touch to any door. UL and cUL certified for three-hour fire rating, this lockset meets high safety standards, making it a reliable choice for any building professional.Elevate your door hardware with the Sargent LC8204LNP26D, where functionality meets contemporary design.
Storeroom Closet Mortise Lock with P Lever and LN Rose Less Cylinder Satin Chrome Finish
- Backset: 2-3/4″ (70mm) only
- Front adjustable at any angle from flat to beveled 1/8″ (3mm) in 2″ (51mm)
- Hubs for Knobs/Levers
- 7800: Sintered iron copper infiltrated
- 8200: Cold forged steel
- R8200: Investment cast steel
- Auxiliary Deadlatch: – Stainless steel and non-handed
- Specify hand on order; – Easily field reversible (if no hand is specified RH will be provided)
- Strike: Brass, bronze or stainless steel; ANSI Standard; curved lip, non-handed (strike box optional)
- Keys: Two, nickel silver (control key or emergency key must be ordered when required)
- Cylinder: Brass, size #41 (1-1/8″) standard (except for Freewheeling, size #46 (1-3/4″)) size #60 for LFIC and size #70 for SFIC.
- Can Be Master keyed Or Grand Master keyed:
- Construction keying available. LA standard keyway.
- Stile: 4-1/2″ (114mm) minimum stile for 7800/8200/R8200, 4-3/4″ (121mm) minimum stile for electrical function locks.
- Door Prep: ANSI/BHMA A156.115 or A156.115W modified per template.
- Thumbturn: Specify LB for ADA extra large thumbturn.
- Warranty: 10 year limited warranty
- 2 year limited warranty on electrified locks.
- Warranty limited to replacement of lock body and/or components.
Attributes
Alternate Codes: LC-8204LNP26D, LC8204LNP26D
Ansi Function: F07 – Storeroom/Exit
Baa Qualified: Yes
Backset: 2-3/4″ Backset
Bolt Projection: 3/4 In. Latch
Bolt Protection: 3/4 In. Latch
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Country of origin: USA
Cylinder Type: Less Cylinder
Design: P Lever and LN Rose
Dimension: 5-1/2″ Lever with 2-1/2″ Projection, and 2-1/8″ Rose
Door Application: Cylindrical Levers
Door Range: 1-3/4″
Door Thickness: 1-3/4 In.
Finish: Satin Chrome
Finish Code: 26D
Finish : Satin Chrome
Fire Rated: 2 Hours {B}
Fire Rating: 2 Hours {B}
Function: 04-Storeroom or Closet
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Latch Backset Dim: 2-3/4 In.
Latch Faceplate Dimension: 1-1/4″ x 8″
Latch Type: Dead Latch (Guarded)
Lever Knob Design: P – Lever
Leverknob Design: P – Lever
Limited Warranty: 10 Years
Lock Face Size: 8 In. x 1-1/4 In.
No Of Inners: 1
Order_ Qty: 1
Origin: USA
Pack Height: 4.38″
Pack Length: 9.25″
Pack Qty: 1
Pack Volume: 227.64 in³
Pack Width: 5.63″
Rose Escutcheon Design: LN – Rose
Roseescutcheon Design: LN – Rose
Screws: Combination
Series: 8200 Series
Ship Weight: 6.1 lbs.
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8 In.
Std Strike Number: 82-0110
Std Strike Type: ASA Strike
Std Strike Width: 1-1/4 In.
Strike: ASA Strike
Strike Dimension: 1-1/4″ x 4-7/8″
Strike Height: 4-7/8 In.
Strike Number: 82-0110
Strike Type: ASA Strike
Strike Width: 1-1/4 In.
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL and cUL 3 Hour Fire Rated
Unit of Measure: Each
