Store / Utility Room Mortise Lock with Large Format IC Less Core by Schlage Commercial

Description

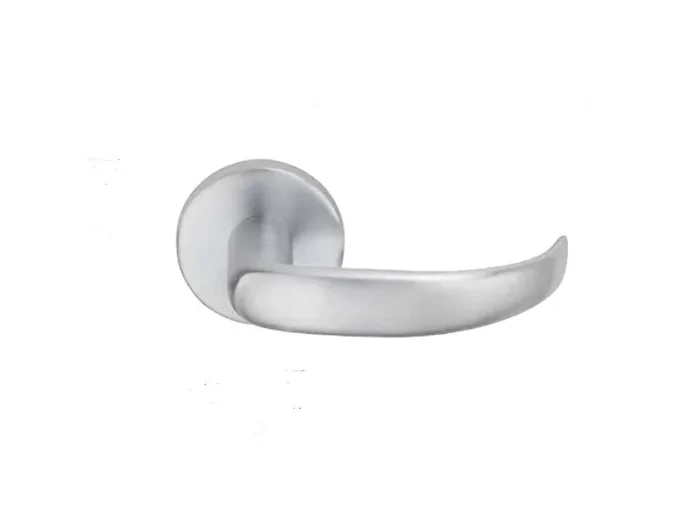

Schlage L9466J17A630 Mortise Lock for Store/Utility Room, Large Format IC, Satin Stainless Steel

Schlage Commercial L9466J17A630 Store / Utility Room Mortise Lock is designed for durability and functionality in demanding environments. This lock features a large format interchangeable core, allowing for easy rekeying and increased security. With a 2-3/4″ backset, it provides a reliable fit for various door configurations. The lock has an elegant satin stainless steel finish that not only enhances its aesthetic appeal but also ensures long-lasting resistance to wear and tear. Its 2-1/8″ rose, paired with a 4-3/4″ lever and 3″ projection, offers a sophisticated look while providing ease of use. The L9466J17A630 is suitable for utility rooms and stores, making it an ideal choice for both commercial and residential applications. Handing is reversible, making installation straightforward and adaptable to your specific needs. This lock includes an ANSI strike for compatibility with standard door frames, ensuring a seamless integration into your security setup. The Schlage Commercial L9466J17A630 embodies a blend of contemporary design and robust performance, making it a smart investment for anyone seeking reliable door hardware solutions. With its dependable construction and professional finish, this mortise lock is built to stand the test of time.

Store / Utility Room Mortise Lock with Large Format IC Less Core with 17 Lever and A Rose Satin Stainless Steel Finish

• Commercial Grade 1
• UL Listed for 3 Hour Fide Door
• ANSI/BHMI Certified A156.13-2012
• Lock Body Mortises Inside the Edge of the Door
• L Series

Attributes

Ansi Function: F14 – Store Door

Baa Qualified: Yes

Backset: 2-3/4″ Backset

Bolt Protection: 3/4″ Latch, 1″ Deadbolt

Category: Mechanical Commercial Locksets

Country of Origin: Mexico

Cylinder Type: Schlage FSIC Less Core

Dimension: 2-1/8″ Rose with 4-3/4″ Lever and 3″ Projection

Door Range: 1-3/4″

Door Thickness: 1-3/4″

Dust Box: Plastic

Finish: Satin Stainless Steel

Finish Code: 630

Finish : Satin Stainless Steel

Fire Rated: 3 Hours {A}

Function: 9466-Store Utility Room Lock

Grade: Grade 1

Hand: Field Reversible

Handing: Reversible

Hazardous Material: NO

Latch Faceplate Dimension: 1-1/4″ x 8″

Lever Knob Design: 17 – Lever

Limited Warranty: 3 Years

Lock Face Size: 8″ x 1-1/4″

Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty

Material: Zinc Base

No Of Inners: 1

Order_ Qty: 1

Rose Escutcheon Design: A – Rose

Screws: Combination

Series: L Series

Strike: ANSI Strike

Strike Dimension: 4-7/8″ with 1-1/4″ Lip

Strike Height: 4-7/8″

Strike Number: 10-072

Strike Type: ASA

Strike Width: 1-1/4″

Subcategory: Mortise Locksets

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing Type: UL Listed for 3 Hour Fire Door
