Description

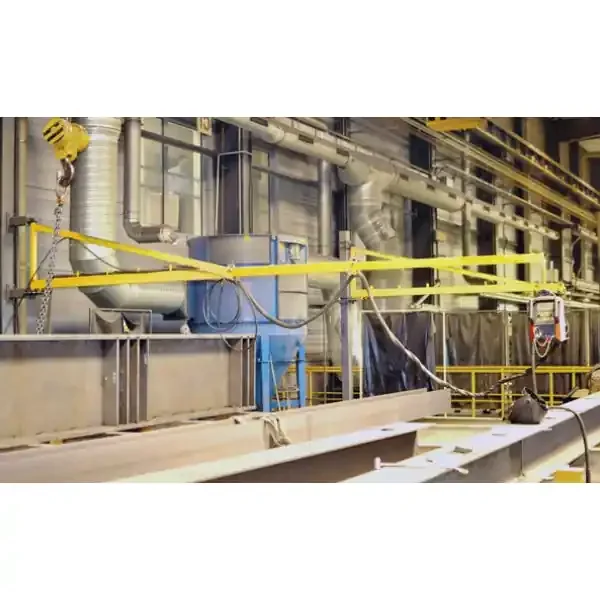

Wall Mounted Telescopic MIG Wire Feeder Boom
Expertly designed to improve manufacturing floor space efficiency and promote a safer workplace. These incredibly useful devices organize a welder’s fabrication area by removing welding cables from the shop floor and locating them on an overhead boom for better cable management and safety.
The TLB8000 is a telescopic wire feeder boom designed to support and easily position a welding wire feeder. The reach of the boom can be set from 128’’ (3251 mm) to 304’’ (7729 mm), and the boom can be rotated up to 180° around the vertical axis.
The reach of the TLB6000 boom can be set from 106’’ (2700 mm) to 236’’ (6000 mm), and the boom can be rotated up to 180° around the vertical axis.
Features:
- Rotates up to 180° around the vertical axis
- 2 models with adjustable reach of 106”- 236” (2700 mm – 6000 mm) and 128”- 304” (3251 mm- 7729 mm)
- Part Numbers: SM-WFB-TLB6000, SM-WFB-TLB8000
Description:
- Expands workspace envelope
- Improves freedom of movement and welder efficiency
- Eliminates wire feeding problems caused by long cable feed assemblies
- Promotes a safer, less cluttered work environment
- Robust design and construction
- Easy installation
- Supports wire feeders up to 110 lbs (50 kg) including wire and spool
Technical Specifications:
| Telescopic MIG Wire Feeder Technical Specifications | ||
|---|---|---|
| Model | TLB6000 | TLB8000 |
| Rotation Angle | 0-180° | 0-180° |
| Maximum Load | 110 lbs (50 kg) | 110 lbs (50 kg) |
| Minimum Dimensions | 106″ x 47″ x 11″ 2700 mm x 1206 mm x 287 mm |
128″ x 47″ x 11″ 3251 mm x 1206 mm x 287 mm |
| Maximum Dimensions | 236″ x 47 x 11″ 6000 mm x 1206 mm x 287 mm |
304″ x 47 x 11″ 7729 mm x 1206 mm x 287 mm |
| Reach | 106″ – 236″ ( 2700-6000 mm) | 128″ – 304″ ( 3252-7729 mm) |
| Weight | 216 lbs (98 kg) | 216 lbs (98 kg) |
Please Note: Wire booms are a large package, and require a freight charge. Please contact E-mail prior to ordering for a freight quote.
