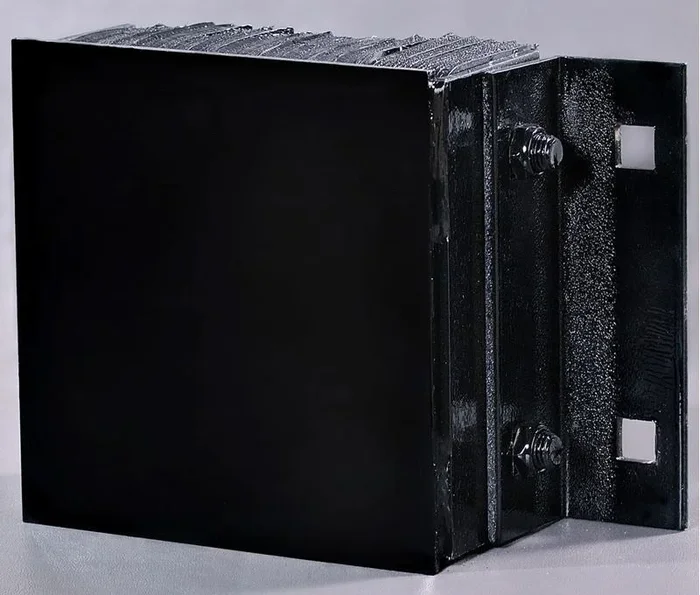

Steel Faced Dock Bumpers

Description

Protect your building and loading docks from heavy traffic!

Uses/Applications:

• Ideal for use in docking areas where excessive friction rom up and down trailer movement occurs
• Can be used in any material-handling system are where heavy-duty protection is required

Features:

• Available ability to deflect and absorb shock with standard laminated bumper beneath the steel-face
• Comes in a wide variety of models and can be mounted in various heights, from flush mount to 12″? above dock, depending on highest impact area

Material:

• 80% recycled material from fabric reinforced rubber pads cut from selected recycled truck tires
• Rubber pads laminated between structural steel angles and secured with 3/4″ steel tie rods
• Standard pad thickness at 4-12″? and 6″? thick
• Heights at 6″?, 10″? and 12″?
• Steel face is heavy 3/8″? thick, heavy duty, high carbon steel that is mounted to standard laminated dock bumper

Installation:

• Structural mounting angles permit welded installations or provide bolting through steel
• No assembly required

Note:

Finish to be black only
