Standard Track Arm GLBLK by LCN – Door Closer Arm

Description

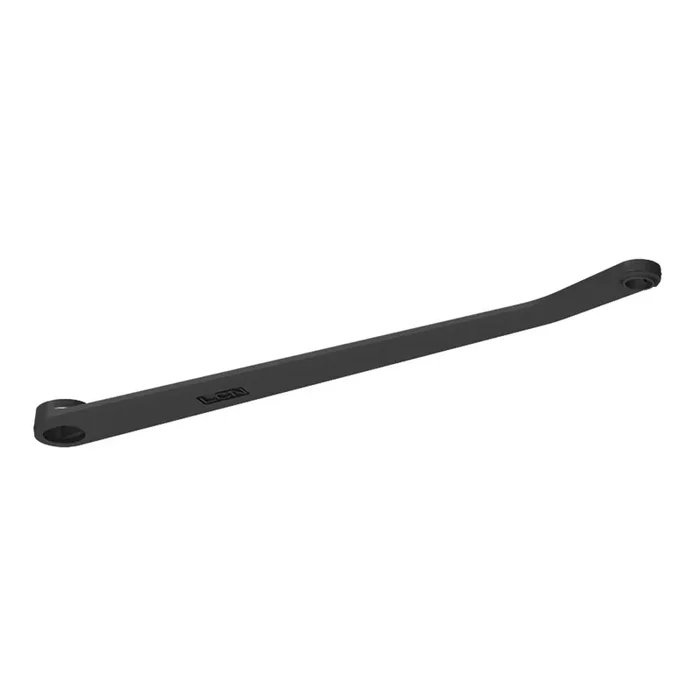

LCN 2030-3077T LH 693 Standard Track Arm – GLBLK

LCN 2030-3077T LH 693 Standard Track Arm GLBLK is a Grade 1 Slide Track Arm designed for high-performance and durability in commercial applications. Crafted with a sleek black painted finish, this left-handed arm complements narrow aluminum transoms with a minimum clearance of 1-3/4 inches.The 2030 Series PACER features a heavy-duty concealed door closer that ensures smooth and quiet door operation, making it ideal for environments where noise reduction is essential. The single lever arm and roller assembly work seamlessly to provide reliable door control, accommodating interior doors up to 4’6″ and exterior doors up to 3’6″ in size. This model meets ADA requirements and is available in standard or custom powder coat finishes, allowing for versatility in various architectural designs. The package includes the standard arm, track, mounting/finish plate, and a complete screw pack for easy installation. Designed specifically for commercial use, the LCN 2030-3077T is built to last, backed by a 15-year limited warranty. Whether you are upgrading an existing system or outfitting a new build, the LCN 2030-3077T offers the reliability and functionality you need to enhance your door operations.

Standard Track Arm GLBLK

Grade 1 Slide Track Arm, Arm Only, Black Painted Finish, Left-Handed

The 2030 Series PACER is a Heavy Duty Concealed Door Closer Designed to Fit in a Narrow Aluminum Transom with a Minimum of 1-3/4″ Clearance. The Single Lever Arm and Roller Assembly Provide Smooth, Quiet Door Control.

The LCN 2030 Series Pacer® is a heavy duty closer designed to fit in a narrow, minimum 1 3/4″ aluminum transom.

The 2030 Series features a single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.

• Standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack
• Sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
• Handed for right or left swinging doors
• Aluminum frame requires minimum 1 3/4” (44 mm) x 4” (102 mm) tube
• Closers to meet ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on arm, fasteners and finish plate

Attributes

Manufacturer surcharge: 4.5%

Ansi: ANSI A156.4

Arm Type: Slide Track Arm, Low Profile

Commercial Residential: Commercial

Finish: 693

Finish Family: Black

Grade: Grade 1

Handing: Left-Handed

Hold Open: No

Installation: Commercial

Limited Warranty: 15 Years

Mounting Location: Header

Mounting Style: Slide Track

Pack Qty: 1

Series: 2030 Series Concealed Closers

Ship Weight: 0.84 lbs.

Subtype: Door Closer Arms

Type: Concealed Overhead

Ul Listing: UL10C

Unit of Measure: Each

Resources

• 2030 Series Concealed Closers Cut Sheet
• LCN 2030 Series Installation Guide
• LCN Closers & Auto Operators Installation Guide
• LCN Closers & Automatic Operators Parts Manual
• LCN Concealed Closer Series Product Guide
• LCN Concealed Closers Catalog
• Overhead Concealed Closer Cross-Reference Sheet
• Von Duprin Finishes Chart
