Standard Track Arm ANDKB by LCN – Durable Door Closer Arm

Description

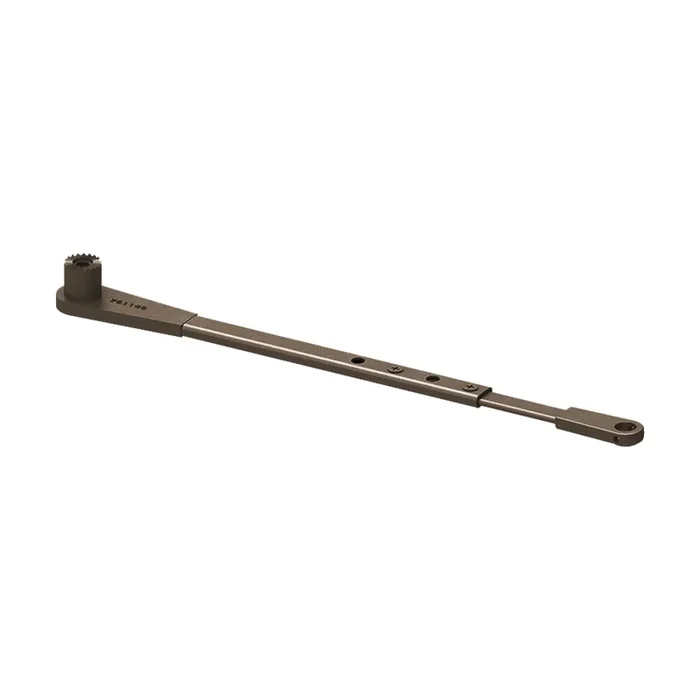

LCN 9130-3077T 710 Standard Track Arm Assembly

LCN 9130-3077T 710 Standard Track Arm ANDKB is a Grade 1, low-energy operator designed for commercial applications, ensuring seamless access for individuals with disabilities, the elderly, and those requiring additional support. This non-handed model features a 90-degree swing, making it suitable for right or left swinging doors, and comes in a dark bronze painted finish that adds a touch of elegance to any entryway. The 9130 Benchmark is ideal for automatic opening applications that may also necessitate manual operation, providing a versatile solution for retrofitting activated or manual doors. It includes essential components such as a motor gearbox, control box, mounting plate, and standard arm, all tailored for easy installation. The operator is ADA compliant and features an on/off switch for effortless control. LED indicators offer clear visibility of power status, and all potentiometers are clearly labeled for user-friendly adjustments. With a standard 27-inch cover and the option for full-length covers up to 36 inches, this product can be customized to fit various door sizes. Designed and manufactured in the USA, the LCN 9130-3077T promises durability and reliability, backed by a 2-year limited warranty.

Standard Track Arm ANDKB

9130 Series Grade 1 Standard Track Arm, 90 Degree Swing, Non-Handed, Dark Bronze Painted Finish

The 9130 Benchmark by LCN is an electrically powered low-energy operator. It provides easy access for people with disabilities, or the elderly. Designed primarily for automatic opening applications that occasionally require manual opening. The Benchmark is a cost-effective solution for retrofitting an activated or manual door.

The LCN 9130 Benchmark Series is an electrically powered low-energy operator.

The LCN 9130 Series provides easy access for people with disabilities, the elderly or the frail. It is designed primarily for automatic opening applications that occasionally require manual opening. The Benchmark is a cost-effective solution for retrofitting an activated or manual door.

• 9130 series operator is shipped with motor gearbox, control box, mounting plate, standard arm, metal cover, standard track, wood and machine screws
• Single interior door, surface mounted
• ADA compliant
• On/Off switch included as standard
• Non-handed for either right or left swinging door
• 27” cover is standard. Full length covers available up to 36” for single doors
• All potentiometers clearly labeled with their functions
• LED lights indicate power to control box and motor gearbox

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Ansi: A156.19

Arm Type: Slide Track Arm, Standard

Baa Qualified: Yes

Commercial Residential: Commercial

Country of origin: USA

Degree Swing: 90 Deg.

Finish: 695

Finish Family: Dark Bronze

Grade: Grade 1

Handing: Non-Handed

Installation: Commercial

Limited Warranty: 2 Years

Mounting Location: Pull Side

Mounting Style: Slide Track

Origin: USA

Series: 9130 Series Electromechanical Benchmark Operators

Ship Weight: 1.8 lbs.

Subtype: Door Closer Arms

Type: Door Closers and Operators

Ul Listing: UL325/228

Unit of Measure: Each

Resources

• 9130 Series Electromechanical Benchmark Operators Cut Sheet
• Choosing the Right LCN Auto Operator
• LCN 4840 Series Product Guide – Automatic Operators
• LCN Auto Operators Catalog
• LCN Closers & Auto Operators Installation Guide
• LCN Electrified Door Control Product Guide
• LCN Electromechanical Auto Operator Series Product Guide
• LCN Electromechanical Automatic Operators Data Sheet
• Von Duprin Finishes Chart
