Description

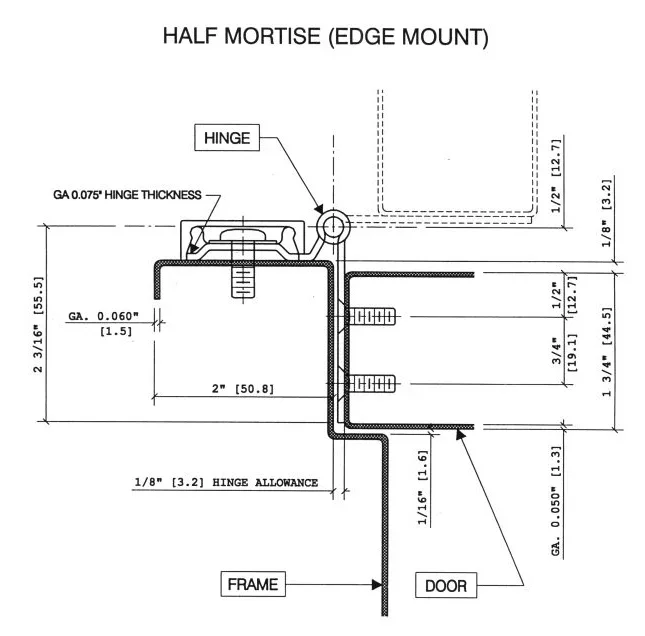

NGP SS304 119″ Stainless Steel Half Mortise Continuous Hinge for 1-3/4″ Doors
NGP SS304 119″ Stainless Steel Continuous Hinge Half Mortise is expertly designed for heavy-duty applications, supporting doors weighing up to 600 lbs. Crafted from 14 gauge type 304 stainless steel, this hinge ensures durability and longevity even in high-traffic environments. The pin and barrel design, complemented by stainless steel hinge pins, offers a robust solution for commercial restroom partitions. What sets this hinge apart is its medical-type self-lubricating flanged bearings that are strategically placed between each 2″ knuckle. This feature guarantees a dust-free, quiet, and smooth operation, making it ideal for settings where noise and maintenance are concerns. The hinge comes in a sleek US32D (630) brushed finish, adding an aesthetic touch to your partitions. Installation is straightforward with the inclusion of #10 x 1″ wood screws for wood doors, along with specific TEK screws for metal frames and doors. With a generous 25-year warranty, you can trust in the quality and reliability of this product. Please note that shipping may incur additional charges for items exceeding standard package sizes. For optimal performance, refer to the installation instructions for precise door sizing. Upgrade your restroom partitions with the NGP SS304 continuous hinge today!
Stainless Steel Continuous Hinge Half Mortise, for 1-3/4″ Doors
- Medical type self-lubricating flanged bearings between each 2″ knuckle provide dust-free quiet and smooth operation
- #1/4-20 x 3/4″ TEK screws for metal frames
- 25 year warranty
- Heavy duty 14 gauge type 304 stainless steel
- #10 x 1/2″ TEK screws for metal doors
- #10 x 1″ wood screws for wood doors
- Standard lengths: 83″, 85″, 95″, 119″
- Pin and barrel design
- US32D (630) brushed finish
- Note: For Door Sizing Refer to Installation Instruction
- For doors weighing up to 600 lbs.
- Stainless steel hinge pins
Attributes
Ship via: No UPS – Common Carrier Only
Application: For doors weighing up to 600 lbs.
Fasteners: #10 x 1″ wood screws for wood doors
Finish: US32D (630) brushed finish
Gauge: Heavy duty 14 gauge type 304 stainless steel
Length: 119″
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: Fire-rated 3 hours on hollow metal doors and 90 minute on wood doors. Maximum size 4’0 x 10″.
Standard-1: ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges: Grade 1 – 150 lb. door.
Warranty: 25 year warranty
