Description

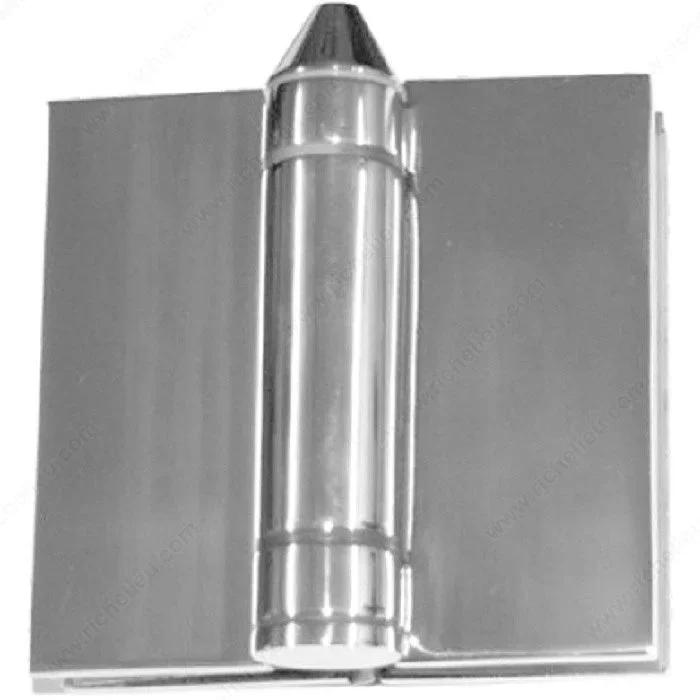

Richelieu PGHGG180170 Adjustable 180 Glass-to-Glass Spring-Loaded Pool Hinge
Richelieu PGHGG180170 Spring-loaded Adjustable 180 Glass-to-Glass Pool Hinge offers a robust solution for your glass balustrade projects, allowing for seamless operation with a sleek design. This hinge is engineered to adjust to an impressive 180°, making it ideal for outward-opening installations on adjacent glass panels. Its stainless steel 316 construction ensures durability and resistance to corrosion, perfect for both interior and exterior applications. The hinge features a reversible mounting side, facilitating flexible installation options. It requires glass drilling for proper setup, accommodating safety glass thicknesses ranging from 13/32 to 15/32 inches. With a maximum door width of 39 3/8 inches and a weight capacity of up to 88.2 pounds for two hinges, it provides reliable support for your glass installations. Adjusting the tension is straightforward-simply remove the coned cap, simplifying maintenance and ensuring optimal performance over time. The hinge dimensions are 3 15/16 inches in height, 4 3/16 inches in length, and 1 9/16 inches in width, making it a compact yet robust choice for various applications. Enhance your architectural projects with Richelieu’s PGHGG180170 hinge, where quality meets functionality in every detail.
Spring-loaded Adjustable 180 Glass-to-Glass Pool Hinge
Hinge adjustable to 180°, designed to open outward and be installed on an adjacent glass panel.
In order to adjust the tension, simply remove the coned cap.
Application
Used in all manner of glass balustrade projects.
Installed on adjacent glass panels.
Glass drilling is necessary for installation.
Attributes
Color/ Finish: Stainless Steel
Finish: Stainless Steel
Glass Drilling: Required
Height: 100 mm
Length: 106 mm
Manufacturing Material: Stainless Steel: 316
Material: Stainless Steel: 316
Milling C/C: 66 mm
Milling Diameter: 16 mm
Mounting Side: Reversible
Product #: PGHGG180170
Product number: PGHGG180170
Product №: PGHGG180170
Recommended Door Width: Max. 1 000 mm
Recommended Location Usage: Interior, Exterior
Safety Glass Thickness: 10 to 12 mm
Type of Mounting: Glass-to-Glass / 180°
Unit 1: case – 20
Weight capacity for 2 hinges: Max. 40 kg
Width: 40 mm
Resources
- Glass Cutout Template
- Installation instructions
