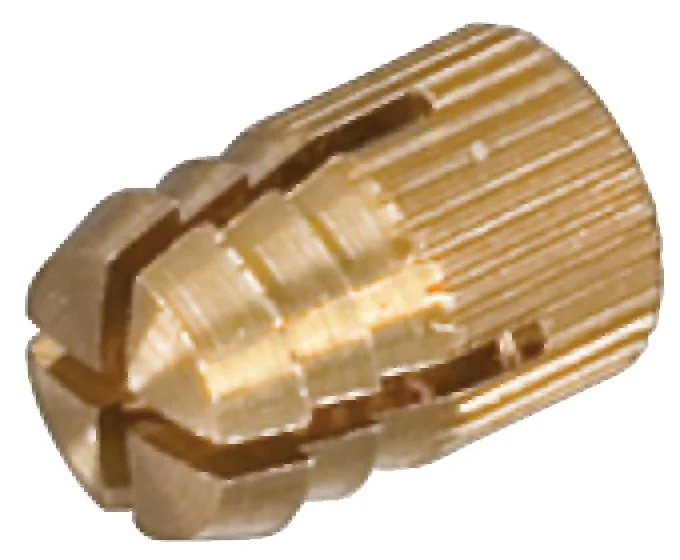

Hafele 051.45.004 M4 Internal Thread Spreading Dowel

Hafele 051.45.004 Spreading Dowel, M4 Internal Thread is an essential component for securely installing Grass concealed hinges in various materials. Designed specifically for a 5 mm drill hole, this brass dowel ensures reliable anchoring with its robust construction. Ideal for door thicknesses starting from 10 mm, this spreading dowel simplifies the installation process, making it a preferred choice for professionals and skilled DIYers alike. The installation process is straightforward: first, drill a 5 mm hole, then insert the spreading sleeve. Next, fit the hinge and secure it using M4 x 8 mm threaded screws for optimal stability. For chipboard and MDF applications, a Euro cylinder screw (Ø 6.3 x 10.5 mm) can be utilized in a similar manner. It is important to note that pull-out resistance may vary depending on the type and thickness of the supporting material, so consulting with the material supplier is advisable. With a blank finish, the Hafele 051.45.004 is not only functional but also discreet, blending seamlessly into various applications. For bulk orders of 10,000 pieces or more, please reach out to Hafele purchasing for assistance. This dowel is a reliable addition to any professional’s toolkit, ensuring durable and effective installations.

Spreading Dowel, M4 Internal Thread

For 5 mm hole, Brass

Processing reference for the installation of Grass concealed hinges: HPL and mineral material: spreading sleeve Ø 5 mm and threaded screw countersunk head M4 x 8 mm: 1. Drill Ø 5 mm drill hole 2. Insert spreading sleeve 3. Put on hinge and fix with screws Chipboard and MDF: Euro cylinder screw Ø 6.3 x 10.5 mm: 1. Drill Ø 5 mm drill hole 2. Put on hinge and fix with screws Depending on the type and thickness of the supporting material, the pull out resistance may vary even with the same fixing method. With regard to the selection and processing of the supporting material, please contact your supporting material supplier.

Attributes

Area of application: for door thickness from 10 mm

Color/finish: blank

For drill hole Ø: 5.00 mm

Installation: For press fitting

Internal thread: M4

Length: 8.00 mm

Material: Brass

Order reference: For orders of 10,000 pieces or more please contact purchasing before placing the order.

Version: With M4 internal thread
