Description

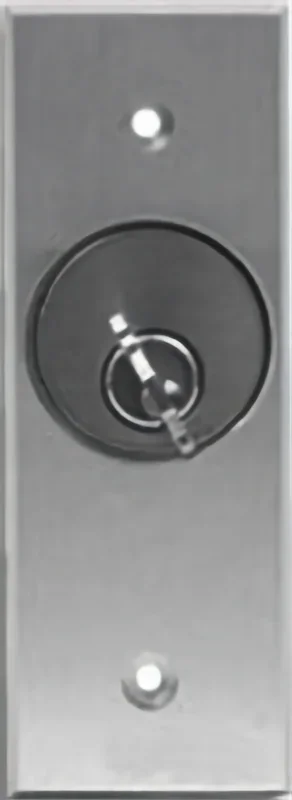

Rutherford Controls 960N-MA-28 SPDT Narrow Maintained Key Switch
Rutherford Controls 960N-MA-28 SPDT Narrow Maintained Key Switch offers reliable security and ease of use for various commercial and industrial applications. Designed with tamper-resistant features, this switch is constructed from extruded aluminum with a durable 1/4″ plate and beveled edges, ensuring longevity even in high-traffic areas. This key switch operates in maintained mode (SPDT), providing a straightforward solution for controlling access. Its one-piece bracket houses a two-position switch holder, allowing for quick installation on standard single gang boxes or narrow-stile door frames. The device is compatible with standard mortise cylinders with both straight and clover cams, accommodating cylinder lengths of 1-1/8″ and 1-1/4″. The 960N-MA-28 is available with a brushed anodized aluminum finish, enhancing its aesthetic appeal while ensuring protection against wear. A comprehensive hardware kit is included, featuring stainless steel tamper-proof screws and a spanner bit for easy setup. Additionally, the switch is backed by a 3-year limited warranty, reflecting its quality and reliability. Ideal for vestibules, storefronts, and healthcare facilities, the Rutherford Controls 960N-MA-28 provides a secure and user-friendly option for access control needs. Enhance your security setup with this robust and functional key switch.
SPDT Narrow Maintained Key Switch
Notice: The info below is not item specific.
The 960 tamper resistant keyswitch series is available in momentary (SPDT/DPDT), maintained (SPDT/DPDT), or time-delay (2-SPDT) operating versions. The keyswitch is a one-piece bracket with two-position switch holder. The RCI 960RO provides a screen-printed reset/override with directional arrows to indicate the simple function of the corresponding switch. The RCI 960 & RCI 960RO are compatible with standard mortise cylinders with straight or clover cams in 1-1/8″ or 1-1/4″ cylinder lengths (1-1/4″ key cylinders available).
Features:
- Extruded aluminum 1/4″ plate with beveled edges for tamper-resistance and durability
- Momentary (SPDT/DPDT), maintained (SPDT/DPDT) or time-delay (2-SPDT) switches available
- Hardware kit includes stainless steel tamper-proof screws and spanner bit
- Faceplate available in brushed anodized aluminum (28) or brushed anodized dark bronze (40) finish
- 3 Year Limited Warranty
- Quickly mounts to single gang box (standard) or narrow-stile door frames
- One-piece bracket with two-position switch holder
- Compatible with standard mortise cylinders with straight or clover cams in 1-1/8″ or 1-1/4″ cylinder lengths (1-1/4″ key cylinders available)
- Also available with reset/override (RO) feature
- LED lamps and other accessories are also available
- Standard: 3″W x 4-3/4″H (76mm x 121mm)
- Narrow: 1-5/8″W x 4-3/4″H (41mm x 121mm)
Applications:
- For commercial, industrial and institutional applications in high use areas:
- Vestibules
- Storefront
- Commercial
- Industrial
- Health Care
Attributes
Alternate Codes: 123026, 960N-MA-28, 960NMA28, 960N-MA X 28
Category: Access Control, Hardwired, Pushplates/Buttons & Switches
Current Draw: 1A @ 250 VAC/VDC, 3A @ 125 VAC/VDC
Door Application: Pushplates/Buttons & Switches
Finish Color: Brushed Anodized Aluminum
Height: 4-3/4″
Manufacturer: RCI Rutherford Controls
Material: Aluminum, Extruded
Relay Action: Maintained (MA)
Relay Type: SPDT
Series: 960
Switch Type: Key Switch
Voltage: 125, 250
Voltage Type: VAC – Alternating, VDC – Direct
Width: 1-5/8″
