Description

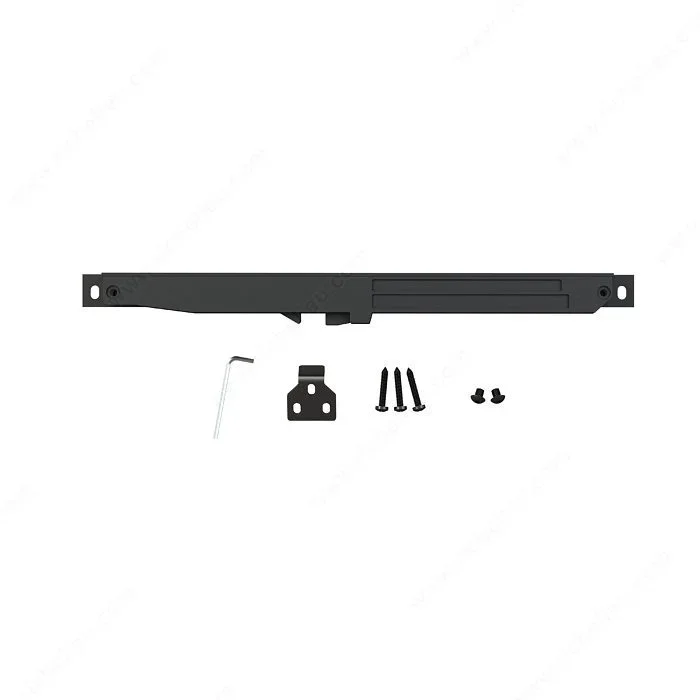

Richelieu 24600490 Soft-Close Sliding Door Mechanism
Richelieu 24600490 Soft-Close Mechanism for Sliding Door enhances the functionality of barn door flat bar sliding systems, ensuring a smooth and quiet closing experience. Designed specifically for wood doors weighing up to 176 lb (80 kg), this soft stop damper mechanism helps to slow the movement of the door, preventing slams and reducing wear over time.The installation is straightforward, as the mechanism is discreetly mounted behind the flat bar track, maintaining the clean aesthetics of your sliding door setup. It is compatible with top-hung doors measuring between 1 3/8 to 1 3/4 inches in thickness and 36 to 40 1/8 inches in width, providing versatility for various design applications. Crafted from durable plastic and finished in an elegant black, the Richelieu soft-close mechanism not only enhances usability but also complements contemporary designs. The one-way operation ensures that the door closes softly every time, making it an ideal choice for residential and commercial spaces alike.With screws included for easy installation, this mechanism is packaged in a convenient box and ships via UPS, making it accessible for builders and homeowners. Elevate your sliding door experience with the Richelieu 24600490 Soft-Close Mechanism.
Soft-Close Mechanism for Sliding Door
Soft stop damper closing mechanism for barn door flat bar sliding systems for wood doors weighing up to 176 lb (80 kg) each.
This optional mechanism works with the track stopper to assist in slowing the moving door. The mechanism is hidden behind and mounted to the back of the flat bar track.
Attributes
Application: Barn Door
Brand: Onward, Richelieu
Depth: 21 mm
Detailed Door Movement: Barn door
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 1 3/8 to 1 3/4 in
Door Width: 850 to 1 020 mm
Finish: Black
Load Capacity: 176 lb*
Manufacturing Material: Plastic
Material: Plastic
Overall Height: 20 mm
Packaging format: Box
Product #: 24600490
Product Type: Soft-Close and Hardware
Product number: 24600490
Product type: Soft-Close and Hardware
Product №: 24600490
Screw/ Nail: Included
Screw/ Nail Included: Yes
Soft- Close Type: One-Way Operation
Soft- Closing: Yes
Unit: Box
Unit 1: carton – 10
Unit 2: carton – 10
Weight Capacity per Door: 80 kg
Width: 340 mm
Resources
- Instructions
