Description

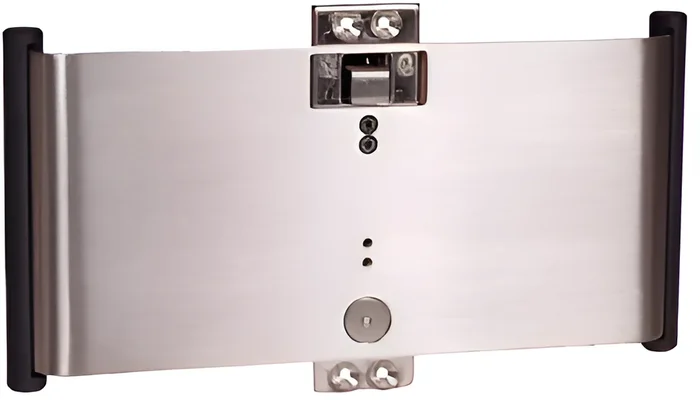

Trimco 1069FP-A-LH.630 Sliding Door Pull Full Privacy ADA, 630/US32D Stainless Steel
Trimco 1069FP-A-LH.630 Sliding Door Pull Full Privacy ADA is expertly crafted to cater to pocket door applications while meeting the stringent requirements of the Americans with Disabilities Act (ADA). This stylish and functional pull features elegant black nylon handles, making it a perfect addition to both contemporary and traditional spaces. Designed for durability, the 1069FP ensures ease of use, allowing operation with a heel, the edge of the hand, or the arm, which is particularly beneficial in high-traffic areas. Installation is straightforward, and the pull accommodates frame widths ranging from 4-3/4″ to 5-1/2″, suitable for both 1-3/8″ and 1-3/4″ wood doors. The full privacy function provides peace of mind, with exterior emergency access options. Its versatility makes it ideal for various applications, including assisted living facilities, hospitals, offices, universities, and K-12 schools. The Trimco 1069FP is available in a sleek satin stainless steel finish, ensuring it blends seamlessly with a range of design aesthetics. With a focus on functionality, safety, and style, this sliding door pull is a reliable choice for enhancing accessibility and privacy in any environment.
Sliding Door Pull Full Privacy ADA, 630/US32D Stainless Steel
Notice: The info below is not item specific.
The 1069 series pocket door pulls are uniquely designed to meet American with Disabilities Act (ADA) requirements for pocket door applications. With a contemporary design and stylish black nylon handles the 1069 series is built for the most demanding applications while remaining aesthetically pleasing. The 1069 series is available in multiple functions and is fully customizable for most pocket door applications with wood doors.
Features:
- Complete pocket door ADA solution.
- Stylish black nylon handles standard.
- Easy installation and operation. Operates with heel, edge of hand or with the arm.
- Standard is for frame width up to 5.5″ can be made for any frame width.
- Can be used on a 1-3/8″ door, as well as a 1-3/4″ door.
- Multiple functions for different applications.
- Exterior emergency access on full privacy.
- For wood doors only
Functions:
- 1069: ADA Pocket door pull, passage
- 1069L: ADA Pocket door pull, latching (non-locking)
- 1069FP: ADA Pocket door pull, full privacy
Applications:
- Assisted living
- Hospitals and health care facilities
- Office buildings
- Universities and higher education
- Hospitality
- K-12 Schools
- Senior living
Finishes:
- 605 – Polished brass
- 606 – Satin brass, clear coated
- 609 – Satin brass, blackened, satin relieved, clear coated
- 612 – Satin bronze, clear coated
- 613 – Dark oxidized satin Bronze, oil rubbed
- 622 – Satin black coated
- 628 – Satin aluminum, clear anodized
- 629 – Polished stainless Steel
- 630 – Satin stainless steel
- Easy Installation and Operation
- Complete Pocket Door ADA Solution
- Operates with Heel, Edge of Hand, or With the Arm
- Multiple Functions for Different Applications
- Stylish Black Nylon Handles Standard
Attributes
Alternate Codes: 1069FP-A-LH-3.630, 1069FPALH3.630, 1069FP-A-LH.630, 1069FPALH.630, TRM1069 FP630-LH, TRM1069FP 630 LH, TRM1069FP630 LH, TRM1069FP-A-LH-3.630
Category: Door Accessories, Push & Pull Plates
Dimension: 8-1/2″ x 4-1/2″
Door Application: Push & Pull Plates
Door Range: 1-3/8″ to 1-3/4″
Door Thickness: 1-3/8″ to 1-3/4″
Finish: Satin Stainless Steel
Finish Code: 630
Finish Color: Satin Stainless Steel
Frame Width: 4-3/4″ to 5-1/2″
Function: Privacy
Handing: Left Hand
Hazardous Material: NO
Manufacturer Warranty: Limited Lifetime Warranty
Material: Stainless Steel
No Of Inners: 1
Order_ Qty: 1
Series: 1000 Series
Strike: Pocket Strike
Strike Dimension: 1″ x 2-1/8″
Subcategory: Pocket Door Locks
