Single Pivot Institutional Hinge Cup, Aximat 300 – Hafele Grade 1

Description

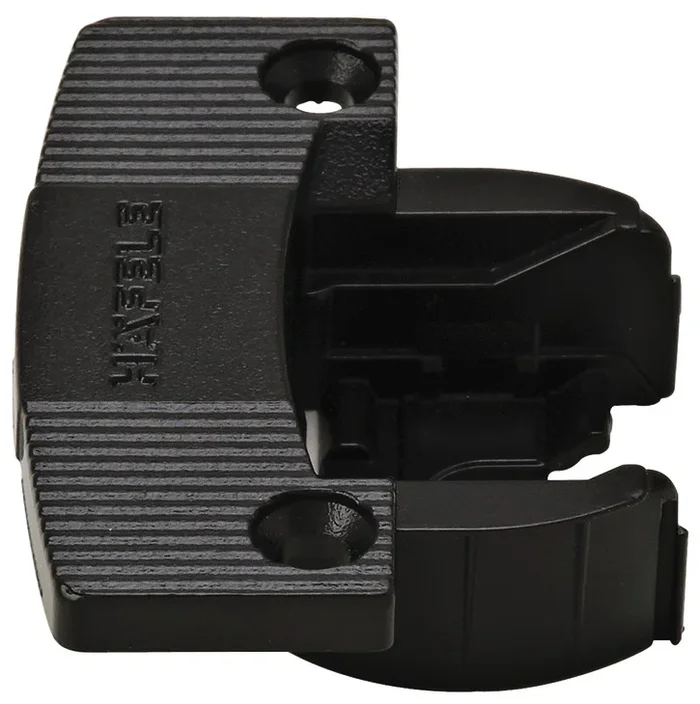

Hafele 344.06.850 Aximat 300 Grade 1 Single Pivot Institutional Hinge Cup, Screw Mount

Hafele 344.06.850 Single Pivot Institutional Hinge Cup, Aximat 300, Grade 1, Screw Mount offers a sleek and sophisticated solution for your cabinetry needs. With only 5 mm (3/16″) of the knuckle visible, this hinge combines aesthetic appeal with functionality. Its integrated catch ensures that doors remain securely closed without the need for additional magnetic catches, making it an excellent choice for institutional settings. Tested in accordance with ANSI/BHMA Grade 1 standards, this hinge guarantees durability and reliability. The design allows for side adjustment, ensuring the hinge lies directly against the door for a seamless look. Additionally, the rapid and precise height adjustment feature enables easy door alignment, enhancing the overall functionality of your storage solutions. This hinge is available in a twin-mounted version, allowing for the installation of two doors on a single side panel, which is ideal for maximizing space in single cabinets and storage walls. Please note that installation of a safety screw in the arm is required for optimal performance. The cup drilling depth measures 13.00 mm with a diameter of 35.00 mm, accommodating standard assembly requirements. For a complete installation, #6 wood screws for hinge attachment are not included. Available in a sleek black finish, the Hafele Aximat 300 is perfect for modern applications.

Aximat – Single Pivot Institutional Hinge Cup, Grade 1, Screw Mount

Aximat 300, Black

Sleek sophisticated design, only 5 mm (3/16″) of knuckle is visible Integrated catch keeps doors closed, no additional magnetic catches required Tested in accordance with ANSI/BHMA Grade 1 standards
Side adjustement, hinge lies directly against the door. Rapid and precise height adjustment of door.
Available in Twin mounted version, 2 doors can be mounted on a single hinge on a single side panel

Installation of safety screw in arm is required.

Attributes

Area of application: For single cabinets and storage walls

Color/finish: Black

Cup drilling depth: 13.00 mm

Cup drilling Ø: 35.00 mm

Door processing for assembly: with cup drilling

Drilling pattern: 45/9.5

Order reference: #6 wood screws for hinge attachment are not included

Resources

• Aximat 300 Hinge Test Report
• CAD data
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 9.5
• Technical data sheet
