Description

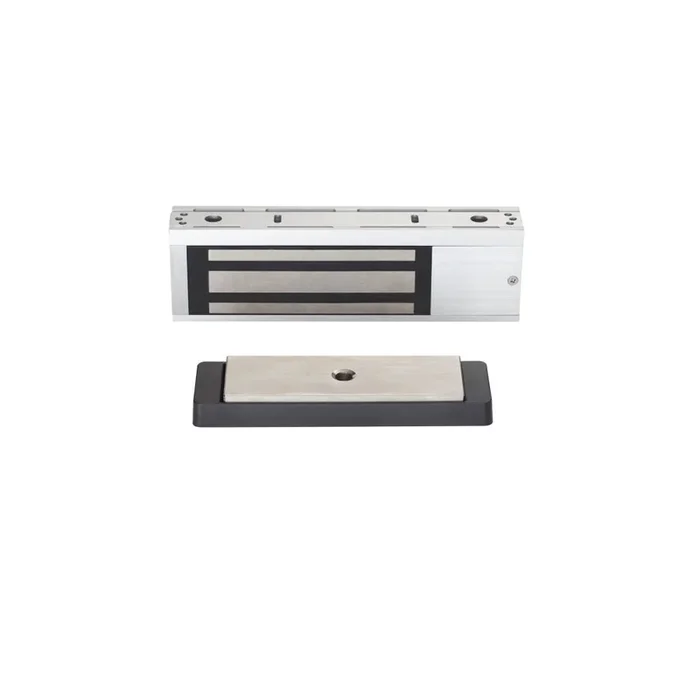

Schlage M450 High Security Magnetic Lock – Single
Schlage Electronics M450 Single High Security Magnetic Lock offers an impressive 1000 lb. hold force rating, making it an ideal choice for high-security applications in commercial and institutional settings. Designed for ease of installation, the bayonet mount eliminates the need to hold the lock overhead during setup, streamlining the process. This magnetic lock features a symmetrical design with field-selectable handing, allowing for optimal placement on doors with a thickness of 1-3/4 inches. For enhanced functionality, the “Plus” models come equipped with a magnetic bond sensor (MBS), adjustable relock time delay (RTD), and a door position switch (DPS). The automatic voltage selection (AVS) feature ensures compatibility with dual voltage 12/24 VDC systems, making it versatile for various applications. Constructed from durable aluminum, the M450 is built to withstand the rigors of daily use while maintaining its integrity. The M450 is UL 10C Listed and cUL certified, ensuring compliance with stringent safety standards. With a limited lifetime warranty on the magnetic components and a one-year electro-mechanical warranty, you can trust in the reliability of this advanced security solution. Protect your property effectively with Schlage’s commitment to strong, dependable security products.
Single High Security Magnetic Lock
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
- Symmetrical design with field-selectable handing for optimum placement
- 1000 lb. hold force rating for high security applications
- “Plus” models offer magnetic bond sensor (MBS), adjustable relock time delay (RTD) and door position switch (DPS)
- Automatic voltage selection (AVS)
- Bayonet mount simplifies installation by eliminating the need to hold lock overhead while securing
Attributes
Manufacturer surcharge: 7.0%
Amp Draw: 750/380mA @ 12/24 VDC Current
Base Material: Aluminum
Base Series: M400 Series
Category: Commercial Electronic Devices
Commercial Residential: Commercial
Dimension: 3″ x 10-1/4″ x 1-3/4″
Door Range: 1-3/4″
Door Thickness: 1-3/4″
Finish : Satin Aluminum
Finish Family: Matte Silver
Fire Rated: No
Function: Single Door
Grade: Grade 1
Hazardous Material: NO
Holding Force: 1000 Lbs.
Installation: Commercial
Limited Warranty: Limited Warranty
Magnet Size: 10-3/4″ x 3″ x 1-3/4″
Manufacturer Warranty: Limited Lifetime Magnetic and 1 Year Electro Mechanical Warranty
Material: Aluminum
No Of Inners: 1
Operating Voltage: 12VDC/24VDC
Order_ Qty: 1
PO date: 2024-11-14
Pack Qty: 1
Power Supply: Wired
Product Height: 3″
Product Length: 10.25″
Product Type Used With: Push Button, Reader, or Sensor
Product Width: 1.75″
Series: Schlage Electronics Electromagnetic Locks
Ship Weight: 10 lbs.
Subcategory: Maglocks
Subtype: Magnetic Locks
Type: Electronics
Ul Listing: UL 1034, UL 10C 3 hour fire rating
Ul Listing Type: UL 10C Listed, cUL
Unit of Measure: Each
Use With: High Security
