Single Gang Pushbutton by Schlage Electronics – Durable Electrical Switch

Description

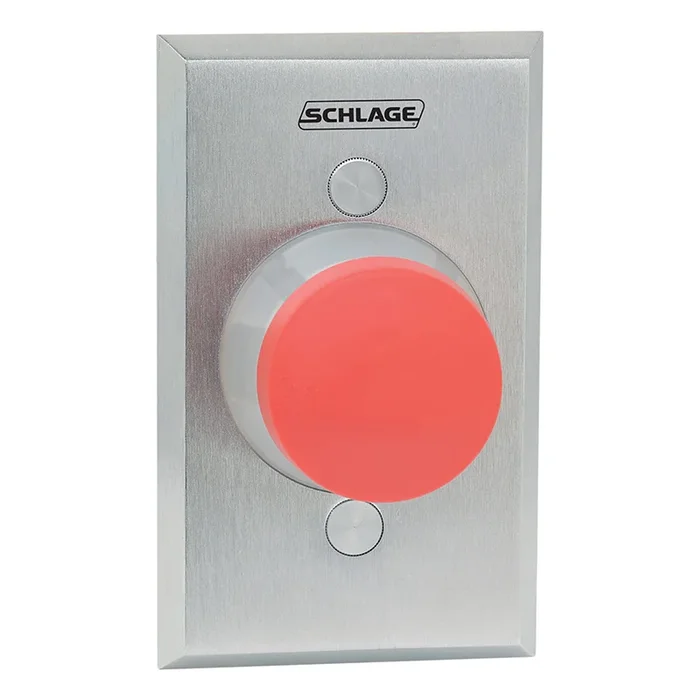

Schlage 623RD DA SF-626 Single Gang Pushbutton Switch

Schlage Electronics 623RD DA SF-626 Single Gang Pushbutton is designed to enhance access control for both commercial and residential environments. This durable pushbutton features a 1-5/8″ mushroom button in a striking red finish, ensuring visibility and ease of use. With a delayed action setting adjustable from 0 to 60 seconds, it provides flexibility for varied applications, allowing users to manage ingress and egress efficiently. Constructed with a vandal-resistant design, this pushbutton is built to withstand the rigors of high-traffic areas. The satin chrome finish (626/US26D) offers an appealing matte silver aesthetic that complements a range of architectural styles. Installation is straightforward, thanks to the single gang mounting plate, making it a great choice for installers looking for efficiency.Equipped with screw terminal connections for momentary action models and optional L2/ILL PC boards for backlit illumination, the 623RD enhances visibility with green and red LEDs for easy monitoring. This pushbutton operates on 12/24 VDC and features a delayed electronic SPDT relay action, making it an ideal addition to any access control system. Choose the Schlage Electronics 623RD for reliable performance and architectural elegance in your access solutions.

Single Gang Pushbutton

1-5/8″ Mushroom Button, Single Gang, Red, Delayed Action (0-60 Seconds), Satin Chrome

Schlage pushbuttons are used to control the ingress and/or egress of a door. The 620 and 631 Series pushbuttons are easy to install and operate. Their standard and narrow stile plates offer ultimate flexibility. The 620 to 631 Series have multiple button configuration and finish options provide enhanced architectural appeal. Schlage 620 and 631 Series pushbuttons also offer significant installer-friendly innovations such as screw terminal connections for the momentary action models and easy-to-install L2/ILL optional PC board, offering backlit illumination for the cone with green and red LEDs for monitoring purposes. Additional options include delayed action, double pole double throw a heavy-duty plate with several architectural finishes and extreme-duty pushbuttons.

Attributes

Manufacturer surcharge: 4.5%

Button Size: 1-5/8″

Commercial Residential: Commercial

Environment: Vandal Resistant

Finish: 626/US26D

Finish Family: Matte Silver

Installation: Commercial

Mounting Plate Size: 1 Gang

Operating Voltage: 12/24 VDC

Pack Qty: 1

Pbs Options: 6082533

Relay Action: Delayed Electronic

Relay Type: SPDT

Series: Schlage Electronics System Accessories

Subtype: Pushbuttons

Type: Sensors, Switches, Relays, Timers

Unit of Measure: Each

Resources

• 2021 Electronic Access Control Catalog
• Schlage Electronics System Accessories Cut Sheet
• Von Duprin Finishes Chart
