SimpleSwing Operator, Single by Record-USA | Efficient Door Operator Solution

Description

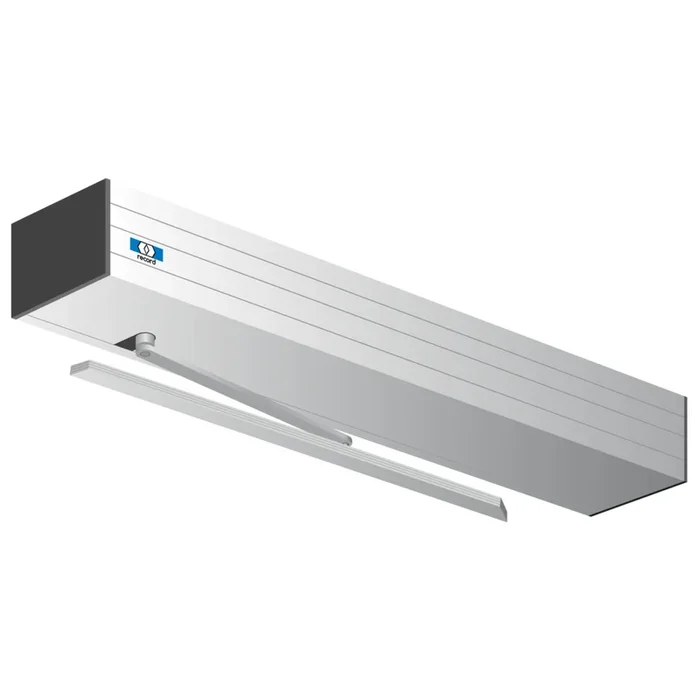

Record SS8202C1TNN 36 SimpleSwing Single Operator

record-usa SS8202C1TNN 36 SimpleSwing Operator is a heavy-duty surface-mounted electromechanical door operator designed for efficiency and reliability. With a 36″ header and a standard slide track arm featuring a positive stop, this operator is capable of accommodating doors up to 48″ wide and allows for a smooth 90-degree swing. Finished in a durable aluminum paint, it is engineered for left-handed installations, making it ideal for both commercial and residential applications. This innovative operator is powered by a 1/4hp motor, ensuring robust performance even in demanding environments. The built-in programmable controls are compatible with electric strikes, enhancing versatility. Moreover, it operates effectively in a temperature range of -40°F to +140°F, making it suitable for various climates. The SS8202C1TNN meets ANSI/BHMA 156.19 and UL325/UL228 standards and comes with a three-year limited warranty, reflecting its quality and durability. It is ADA compliant, ensuring accessibility for all users. Easily shipped via UPS, this model is a reliable choice for those seeking a sophisticated door control solution that prioritizes safety and convenience. Enjoy peace of mind with the reliability and performance of the record-usa SimpleSwing Operator.

SimpleSwing Operator, Single

SimpleSwing Heavy Duty Surface Mounted Electromechanical Door Operator, 36″ Header, Slide Track Arm Standard with Positive Stop, Push Side Mounted, Up to 48″ Door, 90 Deg. Swing, Aluminum Painted Finish, Left Handed

SimpleSwing door operators are controlled by a proprietary control system that is patented, powerful and intelligent providing for a complete door control throughout the opening and closing cycle even when multifaceted tasks are required.

The Record SS8200 is a heavy duty low energy operator that can be specified for almost any interior or exterior application.

With built-in programmable controls and interfaces for electric strikes—combined with up to a 3-year warranty—the SS8200 simply out performs the competition.

• Header width dimensions: 4.5″ x 5″
• Motor: 1/4hp
• Opening angle with track arm: 90 degrees
• Opening angle with standard arm: 120 degrees
• Electrical requirements: 120 VAC @ 15amps 60hz
• Power Supply: 24V AC/DC @.5amp for magnets, electric strikes
• ANSI/BHMA 156.19
• UL325/UL228
• Operating Conditions: -40°F and +140°F

Attributes

Accessible: Yes

Ada Compliance: Yes

Ansi: A156.19

Arm Type: Slide Track Arm, Standard

Aux Power: 24V AC/DC @ 0.5A

Baa Qualified: No

Commercial Residential: Commercial

Country of origin: Switzerland

Cover: Metal

Degree Swing: 90 Deg.

Door Size: Up to 48″

Door Weight: 254 lbs. Push, 198 lbs. Pull

Finish: 689/US28

Finish Family: Matte Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Handing: Left-Handed

Hold Open: Yes

Hold Open Type: Electric

Installation: Commercial

Limited Warranty: 3 Years

Mounting Group: Electromechanical

Mounting Location: Push Side

Mounting Style: Slide Track

Origin: Switzerland

Pack Qty: 1

Physically Handicapp: Yes

Reveal Size: 6″

Series: SimpleSwing Heavy Duty Door Operators

Stop: Positive Stop

Subtype: Door Operators

Type: Surface

Ul Listing: UL325

Unit of Measure: EACH

Voltage: 120V
