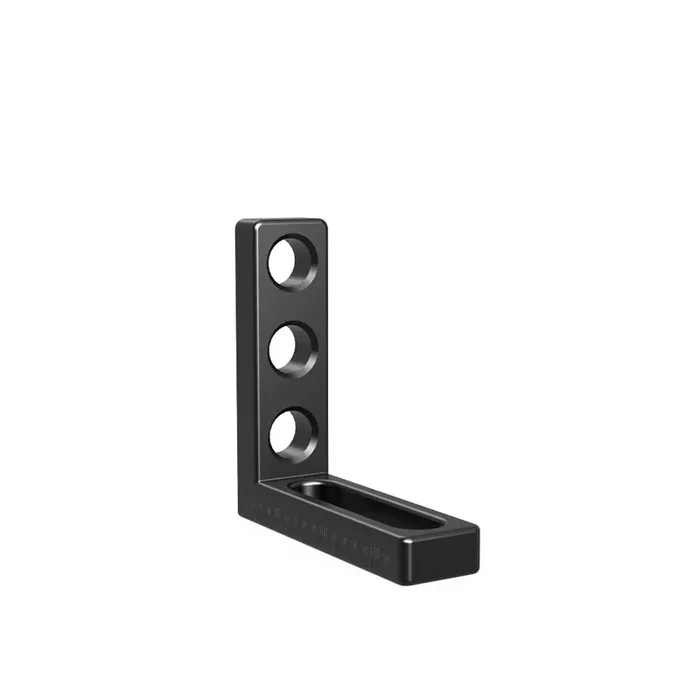

Siegmund System 28 175mm L Stop and Clamping Square

Description

The Siegmund 2-280110.N: 175mm L Stop and Clamping Square (Nitrided) can be utilized as a multifunctional adjustable angle, by combining system bore holes and oblong slot. A height-adjustable support can be created, by combining the Stop and Clamping Square 75mm L (Item No. 2-280105.N) and the Stop and Clamping Square 175mm SL (Item No. 2-280109.N). This component also functions well as a stop for large parts.

Specs and Features:
– Item No. 2-280110.N
– Length: 175mm (6.88”)
– Width: 50mm(1.96”)
– Height: 175mm (6.88”)
– Material Thickness: 25mm (0.98”)
– Weight: 4.3 Ibs.
