Description

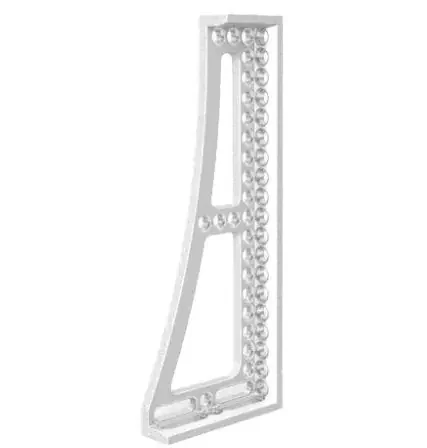

Aluminum Titanium 500 GK Left Stop and Clamping Square for Siegmund System 16 Welding Tables
Dimensions: 195mm L x 49mm W x 500mm H (14mm Thickness)
Finish: Aluminum Titanium Alloy
The Siegmund 500 FK Left Stop and Clamping Square (Aluminum/Titanium), facilitates a multitude of clamping options, due to its three-dimensionality. It is especially designed for working with heavy parts, and can be used as a stop as well as a table extension. Stop and Clamping Squares are manufactured using an aluminum-titanium alloy, to reach maximum stability. Ordering in pairs is recommended.
Aluminum-Titanium: We use this lightweight and high-strength material for weight reasons for some large stop and clamping squares. However, the hardness of nitrided cast steel can not be achieved here.
Specs and Features:
– Item No. 2-160138
– Aluminum/Titanium
– Stop on Left
– Standard mm Fine Scale
– Length: 195mm (7.67”)
– Width: 49mm (1.92”)
– Height: 500mm (19.68”)
– Material Thickness: 14mm (0.55”)
– Weight: 11.7 Ibs.
