Description

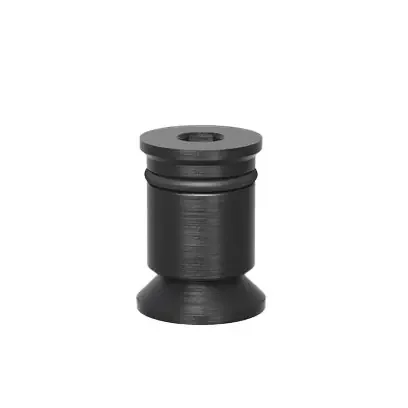

The Siegmund Connecting Bolt, especially designed as a fixed long-term connection of large Siegmund Elements, e.g. tables or U-shaped squares. The countersunk hexagon socket and the ability of the clamping bolt to center itself, enable easy assembly. The flat head and the flat bolt contain a hexagon socket for clamping.
This bolt is used to connect 2 Siegmund Components together.
The connecting bolt provides a sturdy screw Connection. The Connecting Bolt should not be used in oblong holes.
Specs and Features:
– Item No. 2-160560.N
– Nitrided
– With Hexagon Socket
– Length: 25mm (0.98”)
– Diameter: 16mm (0.63”)
– Shearing Force: 50kN
– Tightening Torque Steel: 15Nm
– Tensile Force: 4kN
– Weight: 0.06 Ibs.
