SFIC 1-1/16in Deadbolt Inverted Drawer Lock – Olympus Lock

Description

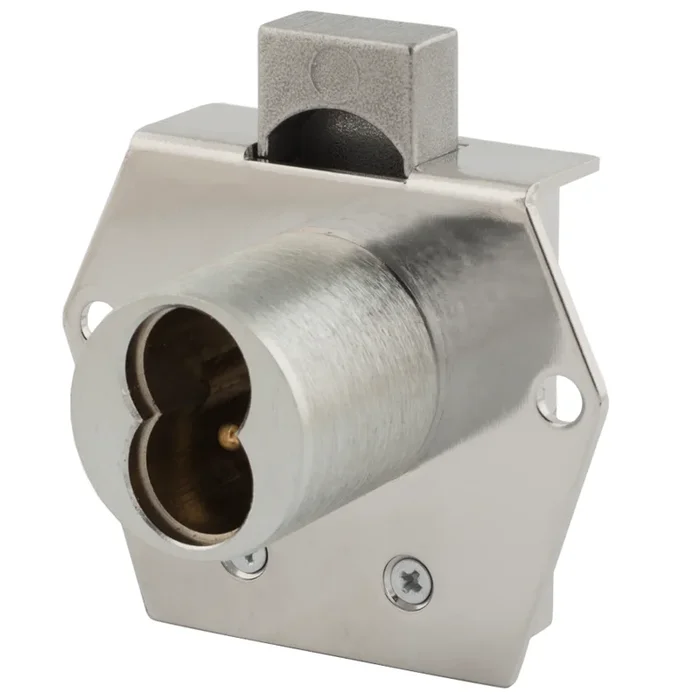

Olympus Lock 725RD-DW-IH-US26 SFIC 1-1/16″ Deadbolt Inverted Drawer Lock, Less Core, Grade 1, Bright Chrome

Olympus Lock 725RD-DW-IH-US26 SFIC 1-1/16in Deadbolt Inverted Drawer Lock is engineered for durability and security, making it an ideal choice for a range of applications. This small format interchangeable core (SFIC) lock is designed to retrofit Best 5L series cabinet locks, providing a seamless upgrade for enhanced security. With a barrel diameter of 1-1/8 inches and a standard cylinder length of 1-1/16 inches, it fits standard drawer and cabinet constructions perfectly. The 725RD-DW-IH features a deadbolt locking mechanism, ensuring a robust barrier against unauthorized access. This lock is versatile, accommodating various functions including right-hand, left-hand, drawer-vertical, and inverted drawer orientations. It accepts 6 or 7 pin SFIC cores from manufacturers like Best, Arrow, and Schlage, allowing for tailored security solutions. Constructed to meet ANSI/BHMA A156.11 grade 1 performance requirements, this lock exemplifies strength and reliability. The bright chrome finish (625/US26) not only enhances its aesthetic appeal but also provides added protection against wear and corrosion. With optional key-retaining functionality available, the Olympus Lock 725RD-DW-IH is a smart investment for homeowners and building professionals seeking a secure, stylish, and reliable locking solution.

SFIC 1-1/16in Deadbolt Inverted Drawer Lock, Small Format IC Prep, Less Core, 1-1/8in Barrel Diameter, Grade 1, 625/US26 Bright Chrome

Notice: The info below is not item specific.

Features:

• Cabinet lock, rim – surface mount
• Deadbolt locking mechanism
• Retrofits Best 5L series cabinet locks
• Available in right-hand, left-hand, drawer-vertical and drawer-inverted function.
• Key retaining function available for DW-VH function.
• Accepts Best, Arrow or equivalent small format interchangeable core cylinders
• Accepts 6 or 7 pin SFIC cores.
• Barrel diameter: 1-1/8″
• Standard barrel length: 1-1/16″
• Optional barrel length: 1-3/8″ (US26D finish only)
• Plastic spacers available separately WP725 and WP726

Specifications:

• Retrofits: Best 5L7RD
• Function: Rim (surface) mounted deadbolt
• Handing: Available for doors or drawers
• Testing platforms: Passed ANSI/BHMA A156.11 grade 1 performance requirements.
• Barrel diameter: 1-1/8″
• Cylinder length: 1-1/16″ or 1-3/8″
• Standards: UL437; UL; Conforms to ANSI grade 1
• Cores: Not included
• Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores
• Compatible electronic cylinders: Medeco NexGen XT or VIDEX CyberLock SFIC cylinders.

Functions:

• 725RD-DR-RH:
• : Lock body – for small format IC
• Function: RH Door
• Cylinder Length: 1-1/16″
• Finish: 26D, US26, US3, US4, 10B
• 725RD3DR-RH:
• : Lock body – for small format IC
• Function: RH Door
• Cylinder Length: 1-3/8″
• Finish: 26D
• 725RD-DR-LH:
• : Lock body – for small format IC
• Function: LH Door
• Cylinder Length: 1-1/16″
• Finish: 26D, US26, US3, US4, 10B
• 725RD3DR-LH:
• : Lock body – for small format IC
• Function: LH Door
• Cylinder Length: 1-3/8″
• Finish: 26D
• 725RD-DW-VH:
• : Lock body – for small format IC
• Function: VH Drawer
• Cylinder Length: 1-1/16″
• Finish: 26D, US26, US3, US4, 10B
• 725RD3DWVH:
• : Lock body – for small format IC
• Function: VH Drawer
• Cylinder Length: 1-3/8″
• Finish: 26D
• 725RD-DW-IH:
• : Lock body – for small format IC
• Function: IH Drawer
• Cylinder Length: 1-1/16″
• Finish: 26D, US26, US3, US4, 10B
• 725RD3DW-IH:
• : Lock body – for small format IC
• Function: IH Drawer
• Cylinder Length: 1-3/8″
• Finish: 26D
• 725RD-DWKVH: Below locks are with “key-retaining” function (key removable in locked position only)
• : Lock body – for small format IC
• Function: VH Drawer
• Cylinder Length: 1-1/16″
• Finish: 26D, US26, US3, US4, 10B
• 725RD3DWKVH: Below locks are with “key-retaining” function (key removable in locked position only)
• : Lock body – for small format IC
• Function: VH Drawer
• Cylinder Length: 1-3/8″
• Finish: 26D

Finishes:

• US26 – polished chrome
• US26D – satin chrome
• US4 – satin brass
• US3 – polished brass
• US10B – oil rubbed bronze
• 1-3/8″ barrel length locks available in US26D finish only.

Attributes

Alternate Codes: 725RD-DW-IH-US26, 725RDDWIHUS26
