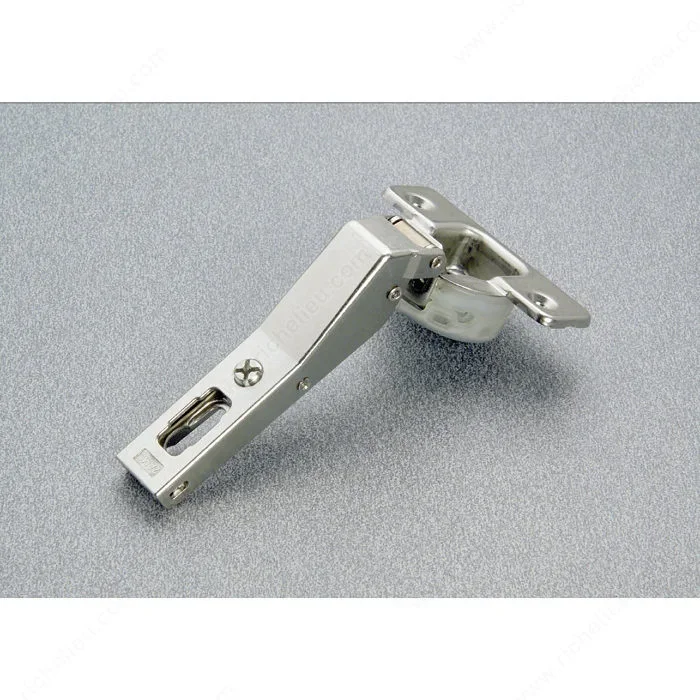

Richelieu H10C2PBM99 Series 100 Concealed Hinge 45 Installation Guide
Richelieu H10C2PBM99 Series 100 Concealed Hinge 45 offers a seamless and efficient solution for corner and bi-fold doors. Designed with versatility in mind, this hinge accommodates door thicknesses ranging from 3/4 to 1 3/8 inches, making it ideal for a variety of cabinetry applications. The nickel finish not only enhances aesthetic appeal but also ensures durability and resistance to wear. One of the standout features of this hinge is its ability to achieve a hinge opening angle of +45°, allowing for optimal access and functionality in tight spaces. The spring-closing mechanism provides a reliable and smooth operation, ensuring that doors close securely every time. With a milling diameter of 1 3/8 inches and a milling depth of 15/32 inches, installation is straightforward, facilitating the use of dowel fixing for a sturdy attachment. This product is readily available for shipping via UPS, ensuring that you can incorporate it into your projects promptly. Whether you’re a building professional or a discerning homeowner, the Richelieu H10C2PBM99 Series 100 Concealed Hinge is designed to meet your needs with precision and style, making it a valuable addition to any standard door setup.
200 Series – Positive Angled Hinges 94 for Thick Doors
Attributes
Brand: Salice
Cabinet Angle: +45°
Closing Mechanism: Soft-Closing
Door Position: Corner / Bi-Fold
Door Thickness: 19 to 35 mm
Drilling Distance: 1/8 to 11/32 in*
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +45°
Mechanism: Spring Closing
Milling Depth: 12 mm
Milling Diameter: 35 mm
Product #: H10C2PBM99
Product number: H10C2PBM99
Product №: H10C2PBM99
Production Time: Stock
Series: 200 Series
Unit 1: case – 150
Use Type: Standard Door
Resources
- Instructions
- Line art
- Overlay Chart
