Sentronic Holder/Closer GLBLK – LCN Electrical Door Hardware

Description

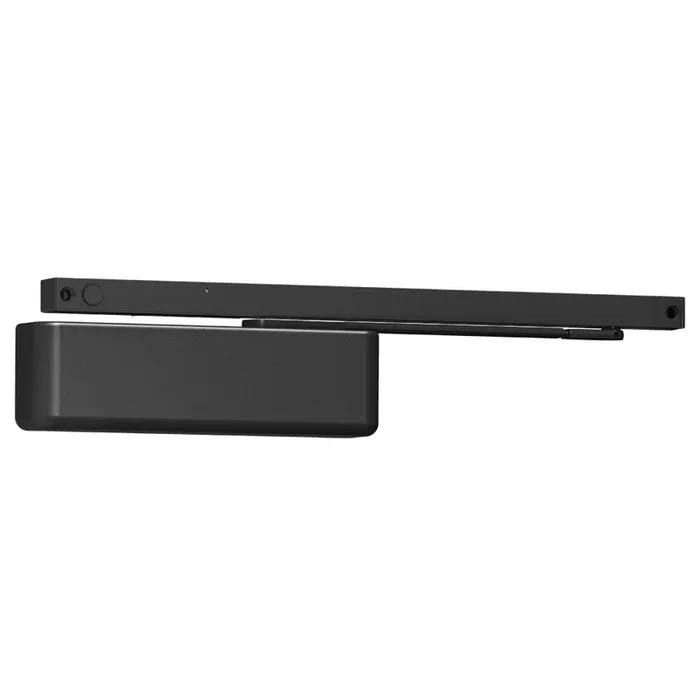

LCN 4040SE-STD 120V 693 Sentronic Holder/Closer GLBLK

LCN 4040SE-STD 120V 693 Sentronic Holder/Closer GLBLK offers a robust solution for fire and smoke barrier doors, featuring a heavy-duty, non-handed design that ensures reliable performance. This Grade 1 door closer is equipped with a standard arm track and is suitable for both push and pull side mounting, allowing for versatile installation in commercial settings. The adjustable size range from 1 to 4 accommodates various door specifications, while the 110-degree swing provides ample access. The innovative hold-open mechanism keeps the door ajar until a current interruption occurs, at which point the door closes securely, ensuring safety compliance. With a momentary on/off switch for testing the door release, this closer also includes over-voltage protection for added reliability.Constructed with a plastic cover and finished in a sleek black paint (693), the 4040SE is not only functional but also aesthetically pleasing. It meets ANSI A156.15 standards and is ADA compliant, making it a suitable choice for accessible environments. The closer is designed for interior doors up to 4 feet wide and comes with either concealed or surface wiring options to integrate seamlessly with alarm systems. With a limited 2-year warranty, the LCN 4040SE is an excellent investment in safety and durability.

Sentronic Holder/Closer GLBLK

4040SE Series Grade 1 Door Closer, Standard Arm Track, Push or Pull Side Mounting, 120V, 110 Degree Swing, Adjustable Size 1 to 4, Plastic Cover, Non-Handed, Black Painted Finish

The 4040SE SENTRONIC is a heavy duty, non-handed, nonsized closer/holder designed to provide single point hold-open for fire and smoke barrier doors. The door is held open until current interruption releases the holding mechanism and the door closes. Single lever (track) arm closer is specifically designed for interior doors. Choice of finishes, track functions, and installation accessories meet virtually all life safety requirements.

Heavy duty, non-handed and non-sized, designed to provide a single point hold-open for fire and smoke barrier doors.

The door is held open until current interruption releases the holding mechanism and the door closes.

• Standard 4040SE series closer shipped with a standard arm, 24V or 120V (please specify) SE track, standard cover, and wood and machine screw pack. SEL tracks are optional.
• Non-sized cylinders for interior doors to 4’0″.
• Hold-open force is adjustable.
• Momentary on/off switch board assembly for testing door release also provides over-voltage protection. Field replaceable.
• Functions as a full rack and pinion closer when hold-open is not engaged or current is interrupted.
• Closer mounts on either push or pull side of the door.
• Non-handed for mounting on either right or left hand door.
• Concealed or surface wiring.
• Interfaces with alarm systems. Consult factory for full details.
• Standard or optional custom powder coated finishes on cover and arm.
• Optional plated finishes

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Ansi: A156.15

Baa Qualified: Yes

Closer Size: 1 to 4

Cold Weather Fluid: Yes

Commercial Residential: Commercial

Country of origin: USA

Cover: Plastic

Degree Swing: 110 Deg.

Finish: 693

Finish Family: Black

Fire Rated: Yes {Variable}

Fire Rating: Yes {Variable}

Grade: Grade 1

Handing: Non-Handed

Hold Open: Yes

Installation: Commercial

Limited Warranty: 2 Years

Mounting Group: Electrohydraulic

Mounting Location: Push or Pull Side

Mounting Style: Slide Track

Origin: USA

Screw Type: Machine and Wood

Series: 4040SE Series Fire/Life Safety Closers/Holders

Ship Weight: 12 lbs.

Subtype: Surface Closers

Type: Surface

Ul Listing: UL 10C

Unit of Measure: Each

Voltage: 120V

Resources

• 4040SE Series Fire/Life Safety Closers/Holders Cut Sheet
• LCN 4040-SE Installation Guide
• LCN 4040-SEL Installation Guide
• LCN 4040SE Double Egress Installation Guide
• LCN 4040SE Series Sell Sheet
• LCN Closers & Auto Operators Installation Guide
• LCN Electrified Door Control Product Guide
• LCN Fire/Life Safety Closers/Holders Series Product Guide 1
• LCN Fire/Life Safety Closers/Holders Series Product Guide 2
• LCN Low Energy Automatic Operators Brochure
• LCN SEH Sentronic Electric Door Holder Installation Guide
• Von Duprin Finishes Chart
