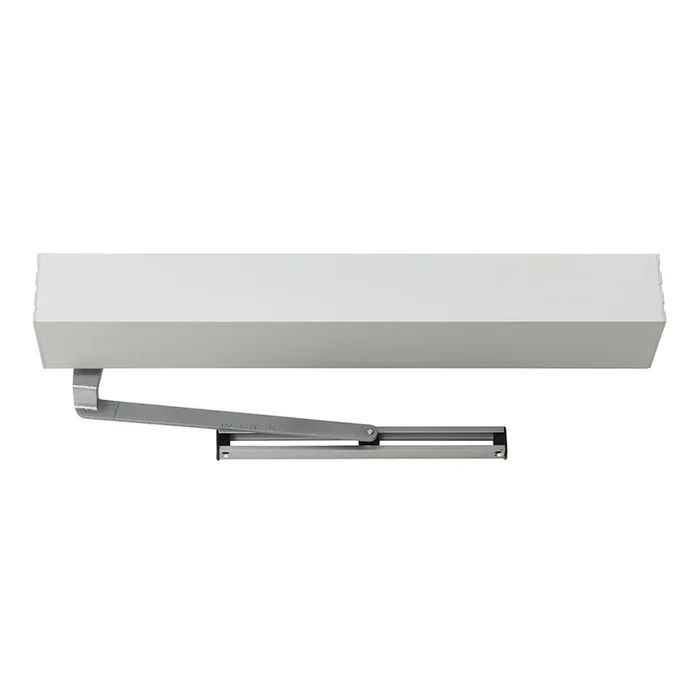

SeniorSwing AutoOperator ANCLR by LCN – Advanced Door Operator

Description

LCN 9531-STD 42 LH 628 SeniorSwing AutoOperator ANCLR Instructions

LCN 9531-STD 42 LH 628 SeniorSwing AutoOperator ANCLR is a Grade 1 surface-mounted electromechanical benchmark door operator designed for optimal accessibility. Featuring a 42″ header and a slide track arm, it is perfect for pull side mounting on doors ranging from 33″ to 48″ in width. This unit accommodates a 90-degree swing, making it an ideal choice for high-traffic areas requiring easy wheelchair access. The 9531 model is particularly notable for its dual functionality; it automatically opens doors for wheelchair users while also allowing for manual operation by pedestrians. This ensures that all individuals can navigate the entrance effortlessly. The operator includes essential components such as a motor gearbox, control box, and mounting hardware, ensuring a seamless installation. With a satin aluminum clear anodized finish, this operator is not only durable but also aesthetically pleasing. It meets ADA requirements in power mode and features an adjustable hold open period of 2 to 32 seconds, accommodating varying traffic flow. Designed for commercial use, the 9531-STD also offers cold weather fluid compatibility and a limited 2-year warranty, underscoring LCN’s commitment to quality and reliability in door hardware solutions.

SeniorSwing AutoOperator ANCLR

Grade 1 Surface Mounted Electromechanical Benchmark Door Operator, 42″ Header, Slide Track Arm Standard, Pull Side Mounted, 33″ – 48″ Door, 90 Deg. Swing, Machine Screws, Satin Aluminum Clear Anodized Finish, Left Handed

The 9530 Senior Swing by LCN is an ADA door operator that is a two in one swing door operator. The Senior Swing operators when activated, opens doors automatically for wheelchair access, yet allows for manual operation for regular pedestrian traffic.

he 9530 Senior Swing Series by LCN is an ADA door operator that is a two-in-one swing door operator.

The 9530 Series is a Senior Swing operator, which meanswhen activated itopens doors automatically for wheelchair access, yet allows for manual operation for regular pedestrian traffic.

• 9530 series operator is shipped with motor gearbox, control box, standard arm, header, and mounting hardware. Actuators available separately
• Single door, surface mounted.
• Meets ADA requirements (power mode only).
• Handed product.
• 36” header length is standard. Specify length 33” to 49” max.
• Double door header available up to 98”, specify other length 49” to 98” max. Consult factory regarding this option.
• Adjustable hold open period of 2 to 32 seconds in automatic or manual mode.

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Ansi: A156.19

Arm Type: Slide Track Arm, Standard

Baa Qualified: Yes

Back Check: Adjustable

Base Material: Aluminum

Bracket: Included

Cold Weather Fluid: Yes

Commercial Residential: Commercial

Country of origin: USA

Degree Hold Open: 90 Deg.

Degree Swing: 90 Deg.

Delay: Yes

Door Size: 33″ to 48″

Door Weight: 254 lbs. Push, 198 lbs. Pull

Finish: 628/US28

Finish Family: Matte Silver

Grade: Grade 1

Handing: Left-Handed

Hold Open: Yes

Hold Open Type: Electric

Installation: Commercial

Limited Warranty: 2 Years

Mounting Group: Electromechanical

Mounting Location: Pull Side

Mounting Style: Offset

Origin: USA

Pack Height: 16″

Pack Length: 43″

Pack Qty: 1

Pack Volume: 7568 in³

Pack Width: 11″

Physically Handicapp: Yes

Reveal Size: Up to 4″

Screw Type: Machine

Series: 9530 Series Electromechanical Senior Swing Operators

Ship Weight: 78 lbs.

Subtype: Door Operators

Type: Surface

Ul Listing: UL325/228, UL1998

Unit of Measure: Each

Resources

• 9530 Series Electromechanical Senior Swing Operators Cut Sheet
• Choosing the Right LCN Auto Operator
• LCN 2800 Series Installation Instructions
• LCN 2800 Series Senior Swing Control Box Installation Instructions
• LCN 4840 Series Product Guide – Automatic Operators
• LCN Auto Operators Catalog
• LCN Electromechanical Auto Operator Series Product Guide
• LCN Electromechanical Automatic Operators Data Sheet
• LCN Senior Swing Installation Video
• Von Duprin Finishes Chart
