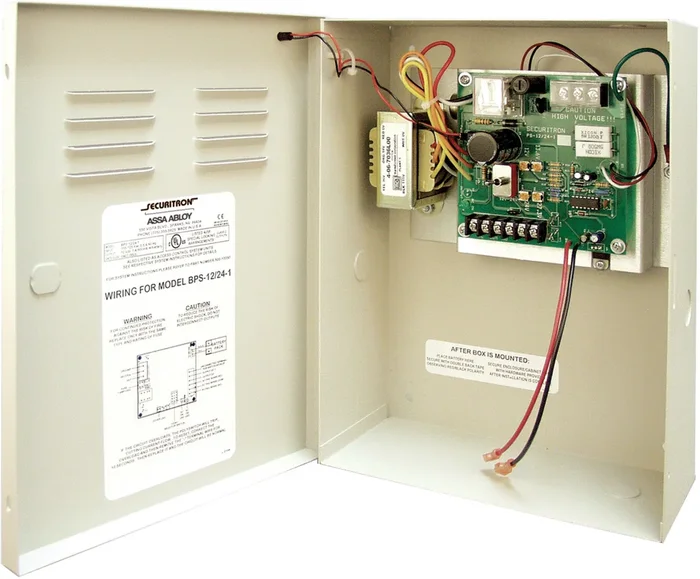

Securitron Single-Voltage Linear Power Supply 24VDC 4 Amp with Enclosure

Description

Securitron BPS24-4 Power Supply

Assa Abloy Electronic Security Hardware – Securitron BPS244 24 Volt DC 4 Amp Power Supply

• 1, 4 or 8 polyswitch (PTC) 2A circuit breakers based on model
• LEDs monitor zone status (voltage, no voltage)
• Slide switches connect or disconnect load from power (excludes 1 Amp)
• Sealed lead acid-gel battery charging capability (battery not included)
• Rugged steel enclosure
• Provided with terminals for fire alarm relay connection, allowing release of all devices upon fire alarm activation
• Clean linear power for flawless operation with all sensitive active electronic components
• BPS UL Listed
• MagnaCare® lifetime replacement, no fault warranty
• 1, 4, or 8 Outputs Protected with Polyswitch 2A Circuit Breakers
• LEDs Provide an Easy to Read Voltage Indicator for Output Zone Status
• Slide Switches Connect or Disconnect Load From Power
• Battery Charging and Backup Capability
• MagnaCare, The Best Warranty in the Industry, Lifetime Replacement, No Fault, No Questions Asked

Attributes

Access Type: Power Supply

Alternate Codes: 124451, BPS24-4, BPS244

Amperage: 4 Amp

Ansi: 294

Baa Qualified: Yes

Batteries Included: No

Battery Backup: Yes

Battery Type: Lead Acid or Gel

Burglar Rated: No

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Wire & Power Supplies

Class 2 Power Limited: No

Commercial Residential: Commercial

Country of Origin: Usa

Country of origin: USA

Door Application: Power Supplies

Enclosure: Yes

Finish: Gray

Finish : Applied

Finish Family: Gray

Fire Alarm Interface: Yes

Fire Rated: No

Fire Rating: No

Fuse Type: PTC polyswitch

Input Voltage: 120

Installation: Commercial

LED: Yes

LED Indicates: Voltage Status

Limited Warranty: Lifetime

Max Depth (in): 6

Max Height (in): 18

Max Output Amps: 10

Max Width (in): 15

Maximum Operating Temperature (° F): 105

Minimum Operating Temperature (° F): 32

Origin: USA

Outdoor Rated: No

Output Amps: 4 AMPS

Output Volts: 24VDC

Pack Qty: 1

Power Supply Type: Linear

Restrictions: None

Series: Securitron Power Supplies

Ship Weight: 24.8 lbs.

Subtype: Power Supplies

Transformer Output: Up to 5 Amps

Transformer Type: DC

Type: Electronics

Ul Listing: 294,FWAX2.SA6635

Unit of Measure: Each

Upc: 784607020066

Voltage: 12 or 24

Voltage/ Amp Rating: 24V DC
