Description

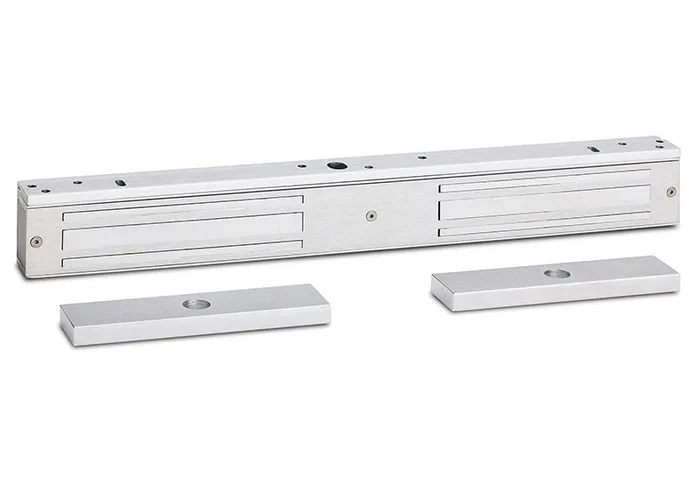

SDC 1582VD Double Magnetic Lock
SDC 1582VD Double Mag Lock offers an exceptional solution for securing your commercial spaces with its robust design and advanced features. This double electromagnetic lock boasts a formidable 650 lbs holding force, ensuring reliable security for interior doors, perimeter exit doors, and entrances requiring failsafe emergency release capabilities. Its automatic voltage sensing input allows for seamless integration with various access control systems, making it a versatile choice for any facility. Constructed with an ANSI Grade 1 rating, the SDC 1582VD is built for durability and longevity. Its modular assembly simplifies installation and maintenance, eliminating the need to remove the lock from the door frame for servicing. The patented EMLock® design not only enhances the lock’s functionality but also presents a sleek, less obtrusive appearance compared to traditional stainless steel epoxy-sealed locks. The EZ mount assembly feature ensures that installation is quick and efficient, leaving hands free for wiring and securing mounting screws. Ideal for use in commercial buildings, warehouses, technology centers, and long-term living facilities, the SDC 1582VD Double Mag Lock is covered by a lifetime warranty, providing peace of mind for your investment. Upgrade your security with this reliable and aesthetically pleasing locking solution.
Double Mag Lock
Double EMLock Magnetic Locks, Automatic Voltage Sensing Input, 650 lbs. Holding Force, Door Position Sensor, Satin Aluminum Clear Anodized
ANSI Grade 1, Modular Magnetic Lock, 650 lbs Holding Force. Field upgradeable outputs and servicing without removing from the door frame.
Suited for interior doors, perimeter exit doors and entrances that require failsafe emergency release capability.
Our patented EMLock® design represents the pinnacle of magnetic lock evolution with modular assembly that makes them easy to stock, install, upgrade, and maintain. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. The Excel™ product line is an economically priced, fully featured alternative to low-cost imports with a quick mount assembly to reduce installation time. They provide superior, less obtrusive appearance compared to stainless steel epoxy sealed magnetic locks. All SDC magnetic locks are compatible with any access control system and covered by a lifetime warranty, see price list for details.
Applications
- Commercial Buildings
- Technology Centers
- Warehouses
- Industrial Facilities
- Technology Centers
- Convention Centers
- Long Term Living Facilities
Attributes
Commercial Residential: Commercial
Finish: 628/US28
Finish Family: Matte Silver
Installation: Commercial
Operating Voltage: 12/24 VDC
Series: SDC Magnetic Locks and Door Holders
Subtype: Maglocks
Type: Electric Strikes, Bolts, Magnets
Upc: 7.12905E+11
