Schlage Magnetic Stripe Stand Alone Classroom/Storeroom Lock – Athens Lever, Cylindrical Lock

Description

Schlage AD200-CY70MSK-ATH626-RD C 8B Magnetic Stripe Stand Alone Lock, Athens Lever, FSIC, Grade 1, Satin Chrome

Schlage Electronic Security AD200-CY70MSK-ATH626-RD C 8B KIT is an advanced magnetic stripe standalone lock designed specifically for classroom and storeroom applications. This cylindrical lock features the elegant Athens lever and comes equipped with a Schlage Full Size IC core, ensuring robust security and ease of use. The lock is finished in a sleek brushed chrome (626) and meets strict Grade 1 standards for durability and reliability. This versatile lock supports up to 5,000 users and audits, allowing for comprehensive tracking of access events. The credential verification time is an impressive ≤ 1 second, ensuring quick and efficient entry. Its modular design means that it can be customized to fit current needs while remaining adaptable for future upgrades, including the option to transition to a networked solution without removal. The AD200 is also equipped with features like request-to-exit sensors, tamper guards, and door position switches, making it a smart choice for facilities looking to enhance their security without the complexity of a full access control system. With a dual voltage power supply option and a wide operating temperature range, this lock combines convenience with high-level security, making it ideal for various commercial environments.

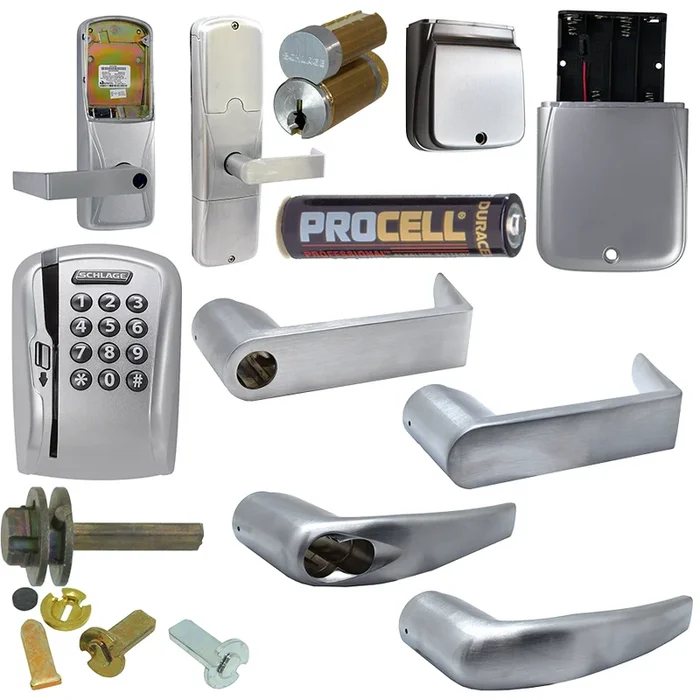

KIT – Magnetic Stripe (Swipe Card) Stand Alone Classroom/Storeroom, Cylindrical Lock, Athens Lever, FSIC (Schlage Full Size IC), Core Included, C Keyway (1-Bitted Brushed Chrome Cylinder 626), 2-3/4in Backset, UL, ANSI Strike, Field Reversible Handing, Grade 1, 626/US26D Satin Chrome

Notice: The info below is not item specific.

AD Series electronic locks from Schlage are designed to be modular and provide more options to choose from, more functionality in the lock and more compatibility with existing systems. Its patent-pending modular design allows the lock to be customized to fit the needs of an application now, and can change to meet future needs without removing it from the door. Factory orderable options include choices of credential readers, chassis type, locking functions, power options, lever styles and finishes. It also offers a wide selection of features that can be configured in the field to customize your openings. The AD-200 is a simple, economical solution if no access control system currently exists in facility, or for openings that don’t require the control of a networked solution. The AD-200 is easily upgradable to a networked lock if requirements change in the future. On all AD series standalone locks, Schlage has built in many of the incremental features needed in a networked system such as request-to-exit and -enter sensors, interior cover tamper guard, as well as the door position switch. This way, if the customer chooses to network this opening in the future, all the components will be there to make the transition an easy one.

Features:

• Security that’s more intelligent and convenient than traditional mechanical locking devices
• Audit trail reports that allow you to track usage and events
• Update users and access rights at the lock using the keypad or handheld device
• The ability to upgrade to a networked solution without removing the lock from the door
• Available in cylindrical, mortise, mortise deadbolt and exit trim
• Compatible with major brands of master key systems and exit devices
• Hardwired remote push button release capability
• Programmable option for lighted occupancy indication. Available on privacy function locks manufactured after May 2019 with firmware version AD.A.126 or higher.

AD-200 Electronic Lock Specifications:

• Users: Up to 5000
• Audits: Up to 5000
• Credential verification time: ≤ 1 second
• Visual/audible communications: Tri-colored LEDs and audible indicators (field configurable)
• System interface: Handheld device (HHD)
• Power supply: 4AA, 8AA, 12 VDC or 24 VDC
• Voltage range: 4 VDC to 26 VDC
• Max current requirement: Up to 250 mA
• Battery life: Up to 2 yrs with 4AA
• Operating temperature: exterior -31° to 151°F (-35° to 66°C)
• Operating temperature: interior 32° to 120°F (0° to 49°C) (battery)
• Operating humidity: 0 – 100 non-condensing
• Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10C, FCC Part 15, ADA, RoHS
• Accessories: Handheld device (HHD)

Mechanical Specifications:

• Handing: Handed to order, field reversible
• ANSI standard (meets or exceeds):
• Cylindrical: A156.25 locked outdoor A156.2 series 4000 grade 1
• Mortise: A156.25 locked outdoor A156.13 series 1000 grade 1
• Exit Trim: A156.25 locked outdoor A156.3 grade 1
• Door thickness: 1-3⁄4″ standard, 1-3⁄8″ to 2-3⁄4″ optional (available in 1⁄8″ increments)
• Backset:
• Cylindrical: Standard: 2-3⁄4″. Optional: 2-3⁄8″, 3-3⁄4″, 5″
• Mortise: 2-3⁄4″ only
• Exit Trim: Defined by exit device
• Latch bolt:
• Cylindrical: Standard: 1⁄2″ throw. Optional: 3⁄4″ throw
• Mortise: Standard: 3⁄4″ throw. Optional: 1″ throw on mortise deadbolt
• Exit Trim: Provided by exit device
• Levers: Pressure cast zinc, plated
• Strike: Standard: 1-3⁄16″ lip, ANSI, 1-1⁄4″ x 4-7⁄8″.
• Cylinder and keys: 6-pin Everest 29 S123 keyway conventional cylinder with two patented keys standard.

Functions:

• 40: Privacy
• 50: Office/classroom
• 60: Apartment
• 70: Storeroom

Reader:

• KP: Keypad
• MG: Magnetic stripe (insertion)
• MGK: Magnetic stripe + keypad (insertion)
• MS: Magnetic stripe (swipe)
• MSK: Magnetic stripe + keypad (swipe)
• MT: Multi-technology (125 kHz, 13.56 MHz, NFC)
• MTK: Multi-technology + keypad (125 kHz, 13.56 MHz, NFC)
• Si: HID support
• SiK: HID support + keypad
• DT: Dummy trim

Chassis:

• CY: Cylindrical
• MS: Mortise
• MD: Mortise deadbolt
• 993R: Exit trim – Rim/CVC/CVR
• 993S: Exit trim – SVR
• 993M: Exit trim – mortise
• 993DT: Non-functioning dummy trim for exit

Levers:

• ATH: Athens
• BRK: Boardwalk
• BRW: Broadway
• LAT: Latitude
• LON: Longitude
• RHO: Rhodes
• SPA: Sparta
• TLR: Tubular

Finishes:

• 626 – Satin chrome
• 605 – Bright brass
• 606 – Satin brass
• 612 – Satin bronze
• 619 – Satin nickel
• 625 – Bright chrome
• 643e – Aged bronze
• 626AM – Satin chrome antimicrobial

Attributes

Access Type: Hardwired, Keypad, Magnetic Stripe, Rights On Lock, Standalone

Alternate Codes: AD200-CY70MSK-ATH626-RD-8B, AD200CY70MSKATH626RD8B, AD200-CY70MSK-ATH626-RD C 8B, AD200CY70MSKATH626RDC8B

Battery Type: 8x, AA, Alkaline

Category: Access Control, Commercial Electric Locks, Electric Locks, Lock Sets, Standalone, Standalone Locks, Standalone/Pushbutton Locks

Cylinder Type: 6-Pin, FSIC – Schlage

Door Application: Commercial Electric Locks

Door Bore Prep: Cylindrical Lockset 2.125in Prep

Door Thickness: 1-3/4″

Finish Code: 626

Finish Color: Brushed Chrome, Satin Chrome

Function: Storeroom

Grade: Grade 1

Keyway: Schlage C

Lever Design: Athens

Lock Category: Cylindrical Lockset – Lever

Manufacturer: Schlage Electronic Security

Power Supply Type: Battery, Dual Voltage

Series: AD Networked

Voltage: 12, 24

Voltage Type: VDC – Direct
