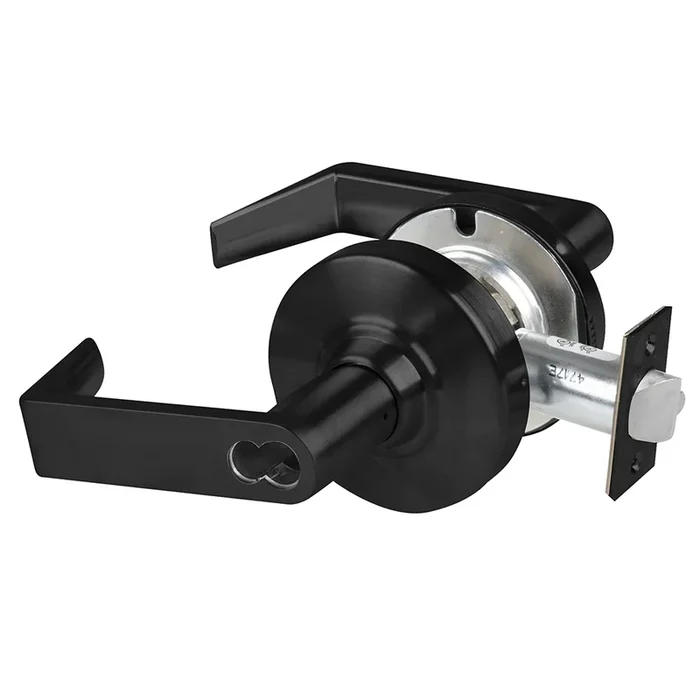

Schlage ND70BDRHO622 ND Series Classroom Small Format Less Core Rhodes with 13-247 Latch 10-025 Strike Matte Black Finish
Schlage Commercial ND70BDRHO622 ND Series Classroom Small Format Less Core Rhodes with 13-247 Latch 10-025 Strike Matte Black Finish
- Classroom, Outside Lever Locked and Unlocked by Key, Inside Lever Always Unlocked for Immediate Egress
- ANSI/BHMA Certified A156.2-2011
- 1-5/8″ to 2-1/8″ Door Range
- Commercial Grade 1
- UL Listed for 3 Hour Fire Door
- No access with minimum 3,100 in-lbs of lever torque (2.6x BHMA, for general abuse)
- No access with minimum 1,600 lbs of offset lever pull (8x BHMA, for pry-bar attacks)
- No access with minimum 100 vertical impacts (20x BHMA, for sledgehammer attacks)
- Near-zero droop and wobble beyond 16 million cycles (after 16x BHMA) – without the use of set screws or O-rings
- Latch retraction with up to 200 pound preload (4x BHMA) for confident operation in warped and preloaded doors
- Cast steel spindle construction exceeding 16 million cycles
- Withstood aggressive Schlage development testing including lever-snap and abusive cycling
- 31 mechanical functions
- 6 wired functions with:
- Autodetecting 12-24V DC input
- Switch-selectable EL/EU operation
- Modular request to exit (RX)
- 0.230A max/0.010A holding current
- Available in 10 finishes, 5 lever designs, and 2 rose designs
- Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
- Support for 10 non-Schlage cylinders including Best, Corbin Russwin, Medeco, Sargent and Yale
- Certifications: Exceeds BHMA A156.2 requirements for grade 1 cylindrical locks. Exceeds BHMA A156.25 requirements for indoor electrified locks.
Attributes
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: ND70BDRHO622
Ansi: ANSI A156.2 Series 4000, Grade 1
Ansi Function: F84 – Classroom
Baa Qualified: Yes
Backset: 2-3/4″ Backset
Bolt Projection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Less Core, SFIC
Cylinders Present: Single Cylinder
Design: Rhodes
Door Application: Cylindrical Levers
Door Thickness: 1-5/8 In. to 2-1/8 In.
Finish: Matte Black
Finish Code: 622
Finish Color: Black, Flat Black, Flat Black Coated, Matte Black
Finish : Matte Black
Finish Family: Black
Fire Rated: Yes
Fire Rating: 180 min
Function: Classroom
Function Family: Classroom
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1 In.
Lever Design: Rhodes
Lever Knob: Lever
Lever Knob Design Name: Rhodes
Leverknob Design: RHO – Rhodes Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8 In. x 2-1/4 In.
Manufacturer Function: Classroom Lock
Maximum Door Thickness: 2-1/8 In.
Minimum Door Thickness: 1-5/8 In.
Origin: Mexico
Pack Height: 4.75″
Pack Height 2: 10″
Pack Length: 9.5″
Pack Length 2: 16.38″
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25″
Pack Width 2: 14.63″
Pbs Options: ‘4540301,4541421
Product Height: 3.44″
Product Length: 6.28″
Product Width: 2.94″
Projection: 2-15/16 In.
Rose Escutcheon: Rose
Roseescutcheon Design: 3-7/16″ Rose Diameter
Roseescutcheon Dimensions: 3-7/16″
Screws: Wood/Machine Screws
Series: ND
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4 In.
Std Latch Number: 13-247
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8 In.
Std Strike Number: 10-025
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4 In.
Strike: ASA Strike
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing: UL/cUL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
