Schlage Grade 1 Entrance Lock – Durable and Secure Door Hardware

Description

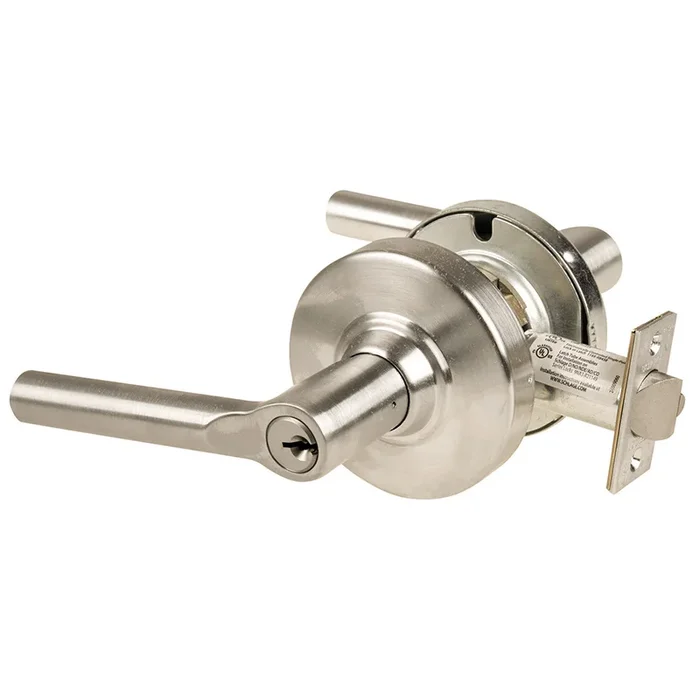

Schlage ND53PD BRW 619 Lock Cylindrical Lock

The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant.

• Entrance, Turn/Push-Button Locking, Pushing and Turning Button Locks Outside Lever, Requiring Use of Key Until Button is Manually Unlocked, Pushing Button Locks Outside Lever Until Unlocked By Key or By Turning Inside Lever, Inside Lever is Always Free
• ANSI/BHMA Certified A156.2-2011
• 1-5/8″ to 2-1/8″ Door Range
• Commercial Grade 1
• UL Listed for 3 Hour Fire Door

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Ansi: ANSI A156.2 Series 4000, Grade 1

Ansi Function: F109 – Entry/Office

Ansi Function : Entry/Office

Baa Qualified: Yes

Backset: 2-3/4″ Backset

Bolt Projection: 1/2 In.

Bolt Protection: 1/2″

Bore Hole Diameter: 2-1/8 In.

Box Depth Fraction: 9-1/2 In.

Box Height Fraction: 4-3/4 In.

Box Width Fraction: 8-1/4 In.

Commercial Residential: Commercial

Country of Origin: Mexico

Country of origin: Mexico

Cylinder Type: Conventional Cylinder

Cylinders Present: Single Cylinder

Design: Broadway

Door Thickness: 1-5/8 In. – 2-1/8 In.

Finish: 619/US15

Finish : Satin Nickel Plated Clear Coated

Finish Family: Matte Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 53-Entrance Lock

Function Family: Entrance

Grade: Grade 1

Hand: Not Handed

Handing: Non-handed

Installation: Commercial

Keying: Keyed Different

Keys: Cut

Keyway: S123

Latch Backset Dim: 2-3/4 In.

Latch Bore Diameter: 1 In.

Latch Number: 13-247

Latch Type: Dead Latch (Guarded)

Lever Knob: Lever

Lever Knob Design: BRW – Broadway

Lever Knob Design Family: Straight Lever

Lever Knob Design Name: Broadway

Leverknob Design: BRW – Broadway Lever

Leverknob Design Family: Straight Lever

Limited Warranty: 10 Years

Lock Face Size: 2-1/4 In. x 1-1/8 In.

Manufacturer Function: Entrance Lock

Manufacturer Function : Turn/push-button locking; pushing and turning button locks outside lever, requiring use of key until button is manually unlocked. Push-button locking; pushing button locks outside lever until unlocked by key or by turning inside lever. Inside lever is always free for immediate egress.

Maximum Door Thickness: 2-1/8 In.

Minimum Door Thickness: 1-5/8 In.

Num Of Keys: 2

Num Pins: 6

Of Keys: 2

Origin: Mexico

Pack Height: 4.75″

Pack Height 2: 10″

Pack Length: 9.5″

Pack Length 2: 16.38″

Pack Qty: 1

Pack Volume: 372.28 in³

Pack Volume 2: 2394.84 in³

Pack Width: 8.25″

Pack Width 2: 14.63″

Pbs Options: ‘4541274,4541421

Pins: 6

Product Height: 3.44″

Projection: 3-1/16 In.

Rose Escutcheon: Rose

Rose Escutcheon Design: 3-7/16 In. Diameter

Rose Escutcheon Dimensions: 3-7/16″

Roseescutcheon Design: 3-7/16″ Rose Diameter

Roseescutcheon Dimensions: 3-7/16″

Screws: Combination

Series: ND Series Lever Locks

Ship Weight: 5 lbs.

Std Latch Backset Dim: 2-3/4 In.

Std Latch Number: 13-247

Std Latch Type: Deadlatch

Std Strike Height: 4-7/8 In.

Std Strike Number: 10-025

Std Strike Type: ANSI Strike

Std Strike Width: 1-1/4 In.

Strike: ASA Strike

Strike Dimensions: 1-1/4 In. x 4-7/8 In.

Strike Height: 4-7/8″

Strike Number: 10-025

Strike Type: ASA

Strike Width: 1-1/4″

Structure Cylinder: P

Structure Function: 53

Structure Latch: D

Structure Latch Number: 13-247

Structure Outside Finish: 619

Structure Outside Trim: BRW

Structure Series: ND

Structure Strike Number: 10-025

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: UL/cUL Listed

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 6
