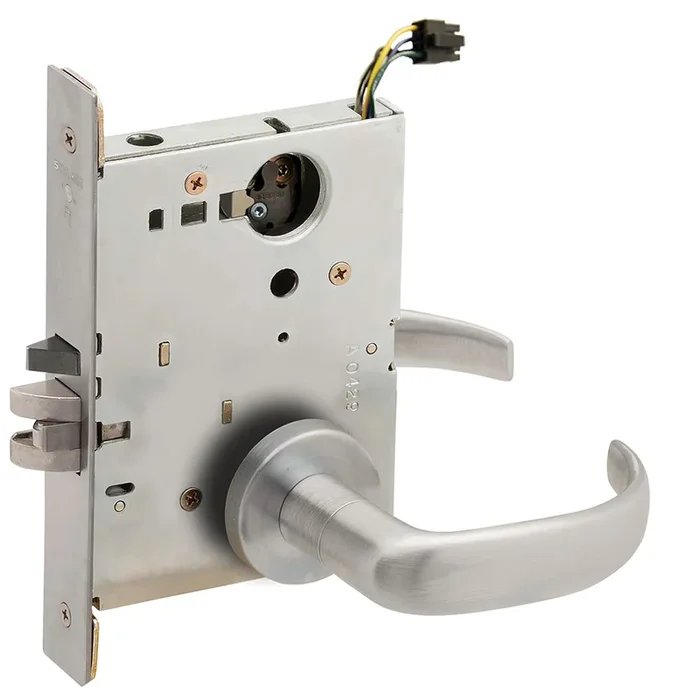

Schlage Grade 1 Electric Mortise Lock noDB Fail Secure

Description

Schlage L9092EUL 17A 630 Grade 1 Electric NoDB Fail Secure Instructions

Schlage L9092EUL 17A 630 Grade 1 Elec noDB, Fail Sec is a cutting-edge electric mortise lock designed for commercial applications. This Grade 1 lock features a fail secure function, ensuring that the lock remains secure during power outages, providing peace of mind for building managers and occupants alike. The sleek satin stainless steel finish (630/US32D) not only enhances durability but also complements modern architectural styles. A standout feature of the L9092EUL is its universal input voltage capability, accommodating both 12VDC and 24VDC systems. Its user-selectable fail safe/fail secure function can be easily adjusted in the field by flipping a switch within the lock case, offering flexibility tailored to specific security needs. The innovative RX switch monitors the inside lever’s activity with enhanced sensitivity, allowing for quick access while maintaining security integrity. With a robust bolt projection of 3/4″ and field-reversible handing, this lock is adaptable to various door configurations. It is designed for doors with a thickness of 1-3/4″ and is fire-rated for up to 3 hours, ensuring compliance with safety standards. The Schlage L9092EUL combines advanced technology with reliable security, making it an ideal choice for high-traffic commercial environments.

Grade 1 Elec noDB, Fail Sec

Grade 1 Fail Secure Electric Mortise Lock, Less Cylinder, 17 Lever, A Rose, Satin Stainless Steel Finish, Field Reversible

The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Amp Draw: 400mA

Base Material: Stainless Steel

Bolt Projection: 3/4″

Commercial Residential: Commercial

Cylinder Type: Less Cylinder

Door Thickness: 1-3/4″

Dust Box: Plastic

Finish: 630/US32D

Finish Family: Matte Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 9092EU-Fail Secure

Grade: Grade 1

Handing: Field Reversible

Installation: Commercial

Leverknob Design: 17 Lever

Limited Warranty: 1 Year

Lock Face Size: 8″ x 1-1/4″

Operating Voltage: 12VDC/24VDC

Pack Qty: 1

Power: Hard Wired

Roseescutcheon Design: A Rose

Screws: Combination

Series: L9090 Series Electrified Mortise Lock

Std Strike Height: 4-7/8″

Std Strike Number: 10-072

Std Strike Type: ASA

Std Strike Width: 1-1/4″

Subtype: Electric Mortise Lock

Type: Electric Locks

Unit of Measure: Each
