Schlage Grade 1 Electric Mortise Lock – Fail Safe Elec noDB

Description

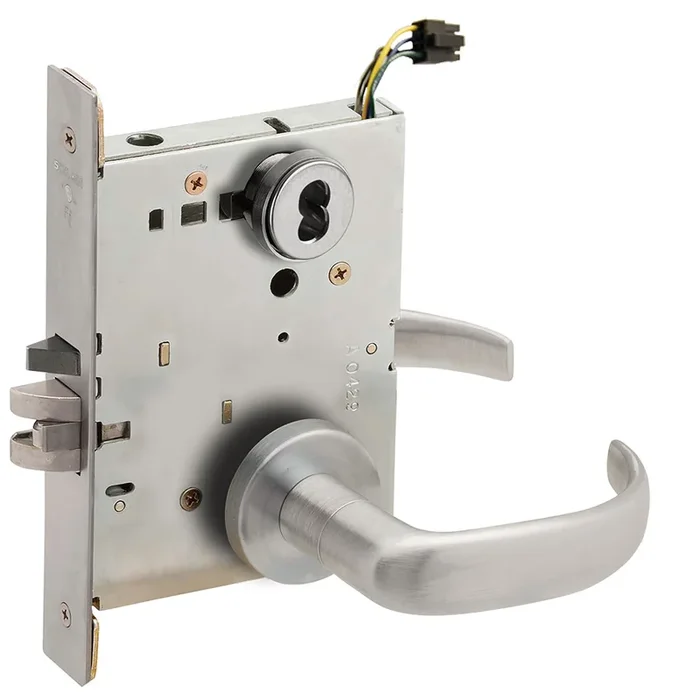

Schlage L9092ELJ 17A 626 Grade 1 Electric NoDB Fail Safe Lock

Schlage L9092ELJ 17A 626 Grade 1 Elec noDB, Fail Safe is a state-of-the-art electric mortise lock designed to meet the highest security standards. This Grade 1 lock features a fail-safe function that ensures doors remain secure even during power failure, making it an ideal choice for commercial installations. The universal input voltage accepts both 12VDC and 24VDC, allowing for flexible integration into various systems.The innovative RX switch enhances security by monitoring the inside lever with precision, providing a balance between accessibility and control. Installation is straightforward, with the ability to select fail-safe or fail-secure functions in the field by simply flipping a switch in the lock case. Constructed with a satin chromium plated finish, this lock not only offers durability but also adds a modern touch to any door. The lock is field-reversible and designed to fit doors with a thickness of 1-3/4 inches. It features a robust bolt projection of 3/4 inch and is ADA compliant, ensuring accessibility for all users. With a limited one-year warranty, the Schlage L9092ELJ is a reliable choice for those seeking a high-quality, secure, and versatile locking solution for commercial applications.

Grade 1 Elec noDB, Fail Safe

Grade 1 Fail Safe Electric Mortise Lock, Schlage FSIC Prep Less Core, 17 Lever, A Rose, Satin Chromium Plated Finish, Field Reversible

The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Amp Draw: 400mA

Base Material: Brass or Bronze

Bolt Projection: 3/4″

Commercial Residential: Commercial

Cylinder Type: Schlage FSIC Prep Less Core

Door Thickness: 1-3/4″

Dust Box: Plastic

Finish: 626/US26D

Finish Family: Matte Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 9092EL-Fail Safe

Grade: Grade 1

Handing: Field Reversible

Installation: Commercial

Leverknob Design: 17 Lever

Limited Warranty: 1 Year

Lock Face Size: 8″ x 1-1/4″

Operating Voltage: 12VDC/24VDC

Pack Qty: 1

Power: Hard Wired

Roseescutcheon Design: A Rose

Screws: Combination

Series: L9090 Series Electrified Mortise Lock

Std Strike Height: 4-7/8″

Std Strike Number: 10-072

Std Strike Type: ASA

Std Strike Width: 1-1/4″

Subtype: Electric Mortise Lock

Type: Electric Locks

Unit of Measure: Each
