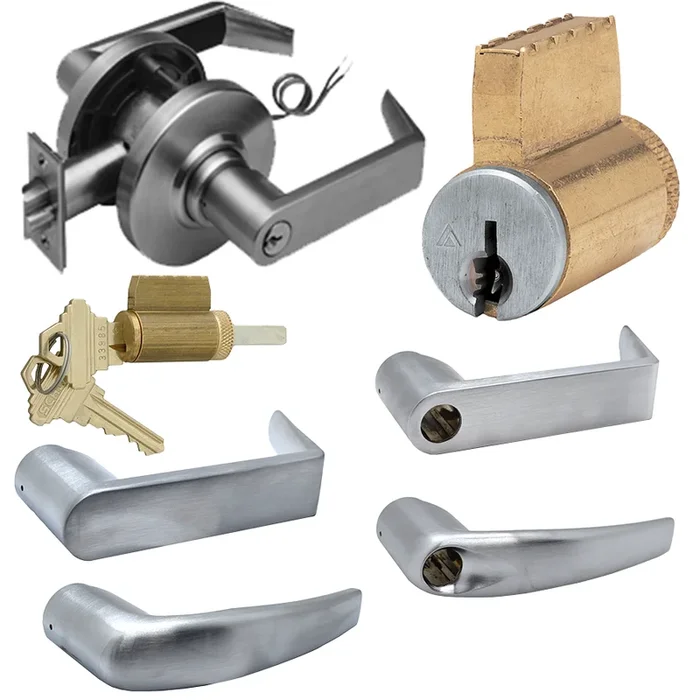

Schlage Grade 1 Electric Lock/Unlock Storeroom Cylindrical Lock with Athens Lever

Description

Schlage ND80EU-PD-ATH-626 S145 Grade 1 Electric Lock/Unlock Storeroom, Athens Lever, Satin Chrome, 12/24VDC

Schlage Lock Company ND80EU-PD-ATH-626 S145 KIT combines robust security and advanced functionality in a Grade 1 Electric Lock/Unlock storeroom solution. Designed for demanding environments, this cylindrical lock withstands up to 3,100 in-lb. of lever torque and 1,600 lbs of offset lever pull, significantly surpassing standard requirements. Its Athens lever design offers an elegant touch while maintaining high durability, making it suitable for both new construction and retrofitting projects. This lock operates on autodetecting 12/24V DC, facilitating easy integration into various systems. With a fail secure mode, the outside lever remains locked when power is removed, ensuring consistent security. The modular design supports extensive customization, including multiple keying formats and compatibility with non-Schlage cylinders. Constructed from zinc and steel components, the ND80EU exhibits exceptional resistance to wear, withstanding over 16 million cycles. It features a satin chrome finish (626) that not only enhances aesthetics but also provides corrosion protection.Certified to exceed BHMA A156.2 and A156.25 standards, this lock is ideal for high-security applications. Experience peace of mind with the Schlage ND80EU-PD-ATH-626 S145 KIT, where strength meets functionality.

KIT – Grade 1 Electric Lock/Unlock (EL/EU) Storeroom, Cylindrical Lock, Athens Lever, 12/24VDC, Key in Lever, 6-Pin S145 Keyway (0-Bitted Brushed Chrome Cylinder 626), 2-3/4in Backset, UL, ANSI Strike, 626/US26D Satin Chrome

Notice: The info below is not item specific.

Beyond grade 1 performance is the hallmark of the mechanical and electrified ND series locks. These locks are put through extreme levels of testing and are proven to withstand 3,100 in-lb. of abusive lever torque-more than 2-1/2 times the grade 1 standard requirement. Offset lever pull testing up to 1,600 lbs. assures you of the lock’s superb resistance against pry bar attacks. More than strong, ND series is built to last and shows nearly zero droop or wobble after 16 million cycles. All ND series locks including electronic functions, ligature-resistant trims, and ground-breaking, high-visibility status indication trims use the common cylindrical ANSI 161L door preparation making them easily interchangeable. They are ideal for all new construction and retrofit applications where grade 1 strength and security are desired.

Features:

• No access with minimum 3,100 in-lbs of lever torque (2.6x BHMA, for general abuse)
• No access with minimum 1,600 lbs of offset lever pull (8x BHMA, for pry-bar attacks)
• No access with minimum 100 vertical impacts (20x BHMA, for sledgehammer attacks)
• Near-zero droop and wobble beyond 16 million cycles (after 16x BHMA) – without the use of set screws or O-rings
• Latch retraction with up to 200 pound preload (4x BHMA) for confident operation in warped and preloaded doors
• Cast steel spindle construction exceeding 16 million cycles
• Withstood aggressive Schlage development testing including lever-snap and abusive cycling
• 31 mechanical functions
• 6 wired functions with:
• Autodetecting 12-24V DC input
• Switch-selectable EL/EU operation
• Modular request to exit (RX)
• 0.230A max/0.010A holding current
• Available in 10 finishes, 5 lever designs, and 2 rose designs
• Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
• Support for 10 non-Schlage cylinders including Best, Corbin Russwin, Medeco, Sargent and Yale
• Certifications: Exceeds BHMA A156.2 requirements for grade 1 cylindrical locks. Exceeds BHMA A156.25 requirements for indoor electrified locks.

Specifications:

• Material: Modular design of zinc and steel components plated for corrosion protection
• Door thickness: Standard: 1-5⁄8″ (41 mm) to 2-1⁄8″ (54 mm) Optional: 1-3⁄8″ (35 mm) – 6″ (152 mm) EE, EO, EI, ED configurations
• Handing: Non-handed
• Backset: Standard: 2-3⁄4″ (70 mm). Optional: 2-3⁄8″, 3-3⁄4″, 5″ (60, 92, 127 mm)
• Latch bolt: Standard: 1⁄2″ (12 mm) throw spring latch or deadlatch (stainless steel). Optional: 3⁄4″ (19 mm) throw anti-friction deadlatch available for pairs of doors
• Strike: Standard: ANSI curved lip: 1-1⁄4″ x 4-7⁄8″ x 1-3⁄16″ (32 mm x 124 mm x 30 mm). Optional: T Strike, ANSI strikes with alternative lip lengths, dust box options.
• Keying Formats:
• Standard: 6-pin Conventional cylinder with two patented keys
• Optional: FSIC, SFIC, and 7-pin SL cylinder formats plus less cylinder options made to fit non-Schlage cylinders from Best, Corbin Russwin, Medeco, Sargent and Yale.
• Access security:
• Standard: 6-pin, patented Everest 29 S123 keyway
• Optional: Open, restricted, Primus®, master keying, and construction keying
• Input voltage: Autodetecting 12-24V DC, +/- 10%
• Operating mode: Fail safe or fail secure via switch on chassis
• Current draw: 0.23 amps maximum; 0.01 amps holding
• Request to Exit: Modular – 3A @ 125VAC / 2A @ 30VDC
• Wired electrified:
• Warranty: 10 years mechanical, 1 year wired electrified.

Lever Styles:

• ATH: Athens Width: 4.56″. Projection: 3.31″
• BRK: Boardwalk Width: 4.94″. Projection: 3.06″
• BRW: Broadway Width: 4.50″. Projection: 3.06″
• LAT: Latitude Width: 4.50″. Projection: 3.13″
• LON: Longitude Width: 4.94″. Projection: 3.13″
• OME: Omega Width: 5.06″. Projection: 3.31″
• RHO: Rhodes Width: 4.56″. Projection: 2.94″
• SPA: Sparta Width: 4.94″. Projection: 3.50″
• TLR: Tubular Width: 4.94″. Projection: 3.00″
• Rose Standard: Diameter: 3.44″
• Return to door meets 1⁄2″ requirement for Boardwalk (BRK), Longitude (LON), Omega (OME), Rhodes (RHO), Sparta (SPA) and Tubular (TLR) levers.

Wired Electrified Functions:

• ND12EL: Exit lock, electrically locked outside lever (fail safe)
• Lever both sides; deadlatch
• Powered state: outside lever continuously locked (when in EL mode)
• When power is removed (via switch or power failure), in EL mode either lever will retract latch
• Inside lever always free for immediate egress
• Note: Auto detects 12 or 24V DC. Chassis mounted switch allows field selectable EL/EU setting.
• Ordering: Unless EL or EU is specified, order will default to an EU setting. Optional RX function can be ordered configured by specifying RX under special options or add later using kit part N123-062.
• ND12EU: Exit lock, electrically unlocked outside lever (fail secure)
• Lever both sides; deadlatch
• Powered state: outside lever continuously unlocked (when in EU mode)
• When power is removed (via switch or power failure), in EU mode outside lever is locked
• Inside lever always free for immediate egress
• Note: Auto detects 12 or 24V DC. Chassis mounted switch allows field selectable EL/EU setting.
• ND80EL: Storeroom lock, electrically locked outside lever (fail safe)
• Lever with key cylinder outside; lever inside; deadlatch
• Powered state: outside lever continuously locked (when in EL mode)
• When power is removed (via switch or power failure), in EL mode either lever will retract latch
• Key outside retracts latch but cannot change the normal locked or unlocked state of the outside lever
• Inside lever always free for immediate egress
• Note: Auto detects 12 or 24V DC. Chassis mounted switch allows field selectable EL/EU setting.
• Ordering: unless EL or EU is specified, order will default to an EU setting. Optional RX function can be ordered configured by specifying RX under special options or add later using kit part N123-062.
• ND80EU: Storeroom lock, electrically unlocked outside lever (fail secure)
• Lever with key cylinder outside; lever inside; deadlatch
• Powered state: outside lever continuously unlocked (when in EU mode)
• When power is removed (via switch or power failure), in EU mode outside lever is locked
• Key outside retracts latch but cannot change the normal locked or unlocked state of the outside lever
• Inside lever always free for immediate egress
• Note: Auto detects 12 or 24V DC. Chassis mounted switch allows field selectable EL/EU setting.
• ND96EL: Vandlgard storeroom lock, electrically locked outside lever (fail safe)
• Lever with key cylinder outside; lever inside; deadlatch
• Powered state: outside lever continuously locked (when in EL mode)
• Vandlgard feature allows outside lever, when locked, to rotate without engaging latch
• When power is removed (via switch or power failure), in EL mode either lever will retract latch
• Key outside retracts latch but cannot change the normal locked or unlocked state of the outside lever
• Inside lever always free for immediate egress
• Note: Auto detects 12 or 24V DC. Chassis mounted switch allows field selectable EL/EU setting.
• Ordering: unless EL or EU is specified, order will default to an EU setting. Optional RX function can be ordered configured by specifying RX under special options or add later using kit part N123-062.
• ND96EU: Vandlgard storeroom lock, electrically unlocked outside lever (fail secure)
• Lever with key cylinder outside; lever inside; deadlatch
• Powered state: outside lever continuously unlocked (when in EU mode)
• When power is removed (via switch or power failure), in EU mode outside lever is locked
• Vandlgard feature allows outside lever, when locked, to rotate without engaging latch
• Key outside retracts latch but cannot change the normal locked or unlocked state of the outside lever
• Inside lever always free for immediate egress
• Note: Auto detects 12 or 24V DC. Chassis mounted switch allows field selectable EL/EU setting.

Finishes:

• 605/US3 – Bright brass
• 606/US4 – Satin brass
• 612/US10 – Satin bronze
• 613/US10B – Oil rubbed bronze
• 619/US15 – Satin nickel
• 622/US19 – Matte black
• 625/US26 – Bright chrome
• 626/US26D – Satin chrome
• 626AM – Satin chrome, antimicrobial
• 643e/716 – Aged bronze

Attributes

Alternate Codes: ND80EU-PD-ATH-626 S145, ND80EUPD-ATH626 S145, ND80EUPDATH626S145, SCHND80EUPD-ATH626 S145

Category: Commercial Electric Locks, Cylindrical Electric Locks, Deadbolts, Electric Locks, Lock Sets, Standalone/Pushbutton Locks

Cylinder Type: 6-Pin, Conventional – Schlage

Door Application: Cylindrical Levers

Finish Code: 626

Finish Color: Brushed Chrome, Satin Chrome

Fire Rated: Yes

Fire Rating: 180 min

Function: Electric Unlocked

Keyway: Schlage S145

Lever Design: Athens

Series: ND
