Description

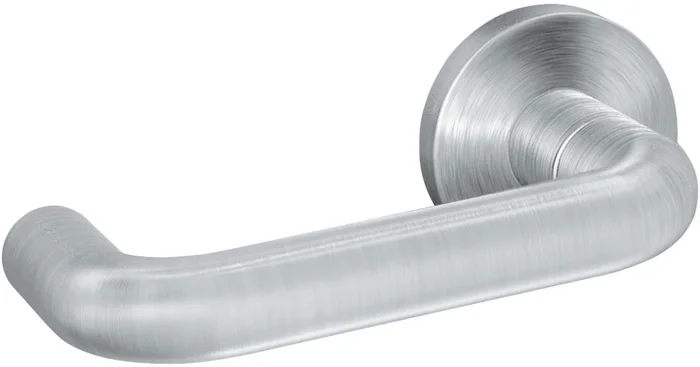

Schlage L9480B03A626 Storeroom Mortise Lock, Deadbolt, IC Core, 03 Lever, Satin Chrome Finish
Schlage Commercial L9480B03A626 Storeroom with Deadbolt Mortise Lock offers robust security and convenience for storeroom applications. This high-quality lock features a storeroom function combined with a deadbolt, ensuring that only authorized personnel can access restricted areas. The lock is designed with a small format IC less core, making it ideal for institutions that require flexibility in key management. With a 2-3/4″ backset, the L9480 is compatible with most standard door frames. Its satin chrome finish not only enhances its aesthetic appeal but also provides durability against wear and tear. The lock features a 2-1/8″ rose, a 4-3/4″ lever, and a 2-13/16″ projection, making it a practical choice for various door styles.The reversible handing allows for easy installation on either right or left-handed doors, ensuring versatility in any setting. Additionally, the inclusion of an ANSI strike ensures compatibility with existing hardware. This Schlage Commercial lock is a reliable choice for building professionals and knowledgeable homeowners alike, combining functionality with a sleek design that complements modern architecture.
Storeroom with Deadbolt Mortise Lock with Small Format IC Less Core with 03 Lever and A Rose Satin Chrome Finish
- Tested and certified to ANSI/BHMA grade 1 operational and security standards
- UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
- Deadbolt features include anti-saw pin in bolt to prevent cut-through
- Security blocking hub prevents lock access by removing levers
- Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
- Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
- Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
- Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
- Two piece anti-friction tongue in latch bolt reduces wear
- Breakaway spindle keeps door secured in the event of vandalism
- Field reversible latch bolt allows handing change without opening case
- Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
- Commercial Grade 1
- UL Listed for 3 Hour Fide Door
- ANSI/BHMI Certified A156.13-2012
- Lock Body Mortises Inside the Edge of the Door
- Storeroom Lock with Deadbolt, Latchbolt Retracted By Key or Lever, Outside Always Fixed, Deadbolt Thrown By Key or Thumbturn, Turning Inside Lever Retracts Both Dead and Latchbolt, Auxiliary Latch Deadlocks Latchbolt When Locked, Inside Lever Always Free
Attributes
Alternate Codes: L9480B03A626
Baa Qualified: Yes
Backset: 2-3/4″ Backset
Base Material: Brass or Bronze
Bolt Projection: 3/4″ Latch, 1″ Deadbolt
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Less Core, SFIC
Design: NULL
Dimension: 2-1/8″ Rose with 4-3/4″ Lever and 2-13/16″ Projection
Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets
Door Range: 1-3/4″
Door Thickness: 1-3/4″
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Storeroom with Deadbolt
Grade: Grade 1
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Faceplate Dimension: 1-1/4″ x 8″
Lever Design: 3
Lever Knob Design: 03 Lever
Leverknob Design: 03 Lever
Limited Warranty: 3 Years
Lock Category: Mortise Lockset – Latch and Deadbolt
Lock Face Size: 8″ x 1-1/4″
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 5.63″
Pack Height 2: 5.63″
Pack Length: 10.38″
Pack Length 2: 10.38″
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38″
Pack Width 2: 5.38″
Rose Escutcheon Design: A Rose
Rose/ Escutcheon: A Rose
Roseescutcheon Design: A Rose
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Strike Height: 4-7/8″
Std Strike Number: 10-072
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Strike: ANSI Strike
Strike Dimension: 4-7/8″ with 1-1/4″ Lip
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: LOCK SETS
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
Resources
- L Series Mounting Plate Installation Instructions
- L400 Installation Instructions
- L9000 Indicator Handing Instructions
- L9000 Indicator Lever w/ Escutcheon Installation Instructions
- L9000 Indicator Lever w/ Sectional Installation Instructions
- L9000 Installation Instructions
- L9000 Knob Installation Instructions
- L9000 Series Mortise Lock Cut Sheet
- Schlage L Indicator Data Sheet
- Schlage L Series Parts Diagram
- Schlage L Series Service Manual
- Schlage L9000 Gen 2 Indicator Pricing Addendum
- Video: AL Lock Installation
- Von Duprin Finishes Chart
