Schlage Commercial Entry/Office Deadbolt Mortise Lock – Large Format IC Core C Keyway

Description

Schlage L9453R17B613 Mortise Deadbolt Lock, Large Format IC Core, 17 Lever, Oil Rubbed Bronze

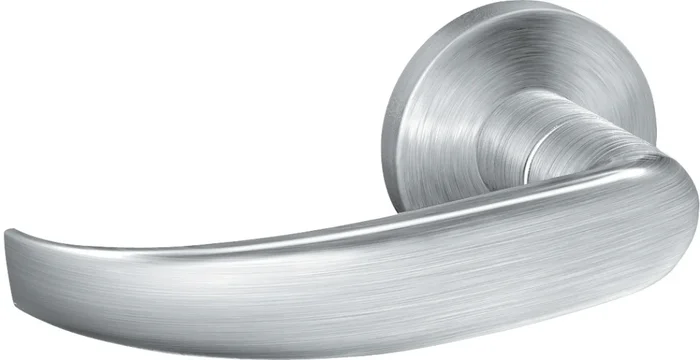

Schlage Commercial L9453R17B613 Entry / Office with Deadbolt Mortise Lock features a robust design ideal for securing both commercial and residential spaces. This mortise lock comes equipped with a large format IC core C keyway, ensuring compatibility with various keying systems while providing an extra layer of security. The 17 lever design, paired with a B rose, offers an elegant touch in a classic oil rubbed bronze finish that enhances any door’s aesthetic. Designed with practicality in mind, this lockset features a reversible handing, allowing for versatile installation on both right and left-handed doors. The ANSI strike ensures a reliable fit, enhancing the durability and performance of the lock. With a backset of 2-3/4 inches, the L9453R model is engineered for functionality and ease of use.The dimensions of the lockset include a 2-9/16-inch rose, a lever length of 4-3/4 inches, and a 3-inch projection, making it a substantial yet unobtrusive addition to any entryway. Whether used for entry or office settings, the Schlage Commercial L9453R17B613 delivers security and style, making it an excellent choice for professionals seeking both functionality and form.

Entry / Office with Deadbolt Mortise Lock with Large Format IC Core C Keyway with 17 Lever and B Rose Oil Rubbed Bronze Finish

• Handing:
• L9000 Series lock bodies are field-reversible without disassembly. L400 Series locks are non-handed.
• Door thickness: 1-3/4″ (44 mm) standard. 1-3/8″ (35 mm) to 2-1/2″ (64 mm) optional. Over 2-1/2″ (64 mm) door ranges vary by function. No escutcheon available for 1-3/4″ (44 mm) doors standard. 2″ to 2-3/8″ (51 mm to 60 mm) optional. Specify door thickness if other than 1-3/4″.
• Backset: 2-3/4″ (70 mm) only.
• Armored front:
• L9000 Series: 1-1/4″ x 8″ x 7/32″ (32 mm x 203 mm x 6 mm) standard. 1-1/16″ x 8″ x 1-7/32″ (27 mm x 203 mm x 6 mm) optional.
• L400 Series: 4-7/16″ x 3-5/8″ x 1″ (113 mm x 92 mm x 25 mm)
• Case size:
• L9000 Series: 4-7/16″ x 6-1/16″ x 1″ (113 mm x 154 mm x 25 mm)
• Spacing: Knob or lever to cylinder, 3-7/8″ (98mm); knob or lever to thumbturn hub, 2-11/16″ (68mm).
• Bolts: 1″ (25mm) throw stainless steel deadbolt and 3/4″ (19mm) throw stainless steel latch with anti-friction tongue.
• Exposed trim:
• Knobs: #41 and #42 heavy-duty wrought brass, bronze or stainless steel knobs match D Series knobs.
• Levers: Forged brass or bronze and cast stainless steel. Designs available to match D Series levers. 93 Lever design: Extruded brass, bronze or stainless steel. Mediterranean designs: Forged-brass lever and rose.
• Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.
• Trim combinations: Available with knob both sides, lever both sides, or knob and lever with rose or escutcheon both sides.
• Strike: L9000 Series: ANSI curved lip strike 1-1/4″ x 4-7/8″ (32 mm x 124 mm) x 13/16″ (30 mm) lip to center with dust box standard. L400 Series: 1-1/8″ x 3-5/8″ (29 mm x 92 mm) with dust box.
• Cylinder & keys: 6-pin Everest C123 keyway cylinder with two patented keys standard.
• Tested and certified to ANSI/BHMA grade 1 operational and security standards
• UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
• Deadbolt features include anti-saw pin in bolt to prevent cut-through
• Security blocking hub prevents lock access by removing levers
• Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
• Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
• Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
• Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
• Two piece anti-friction tongue in latch bolt reduces wear
• Breakaway spindle keeps door secured in the event of vandalism
• Field reversible latch bolt allows handing change without opening case
• Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
• Commercial Grade 1
• UL Listed for 3 Hour Fide Door
• ANSI/BHMI Certified A156.13-2012
• Lock Body Mortises Inside the Edge of the Door
• L Series

Attributes

Alternate Codes: L9453R17B613

Ansi Function: F20 – Entry/Office

Baa Qualified: Yes

Backset: 2-3/4″ Backset

Bolt Protection: 3/4″ Latch, 1″ Deadbolt

Category: Lock Sets, Mortise Locks, Mortise Lock Sets

Country of Origin: Mexico

Cylinder Included: Yes

Cylinder Type: FSIC Cylinder

Dimension: 2-9/16″ Rose with 4-3/4″ Lever and 3″ Projection

Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets

Door Bore Size: 2-1/8″

Door Range: 1-3/4″

Door Thickness: 1-3/4″

Door Thickness Min: 1-3/4″

Dust Box: Plastic

Finish: Oil Rubbed Bronze

Finish Code: 613

Finish Color: Oil Rubbed Bronze

Finish : Dark Oxidized Satin Bronze Oil Rubbed

Fire Rated: 3 Hours {A}

Function: 9453-Entrance Office Lock w Deadbolt

Grade: Grade 1

Hand: Field Reversible

Handing: Reversible

Hazardous Material: NO

Keying: 1 Bitted

Keys: Cut

Keyway: S123

Knob/ Lever Design: 17

Knob/ Lever Style: Lever

Latch Bolt Face Type: Square Corner

Latch Bolt Faceplate Size: 8″ x 1-1/4″

Latch Bolt Type: Deadbolt, Deadlatch

Latch Faceplate Dimension: 1-1/4″ x 8″

Lever Design: 17

Lever Knob Design: 17 – Lever

Limited Warranty: 3 Years

Lock Category: Mortise Lock

Lock Face Size: 8″ x 1-1/4″

Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty

Material: Zinc Base

No Of Inners: 1

No Of Pins: 6 Pin Cylinder

Num Of Keys: 2

Num Pins: 6

Order_ Qty: 1

Restricted Keyway: No

Rose Escutcheon Design: B – Rose

Rose/ Escutcheon: B Rose

Rose/ Escutcheon Size: 2-9/16″

Rose/ Escutcheon Style: Rose

Screws: Combination

Series: L Series

Strike: ANSI Strike

Strike Dimension: 4-7/8″ with 1-1/4″ Lip

Strike Height: 4-7/8″

Strike Number: 10-072

Strike Size: 4-7/8″ x 1-1/4″

Strike Type: ASA

Strike Width: 1-1/4″

Subcategory: Mortise Locksets

Subtype: Mortise Lock

Supplier: Schlage

Type: LOCK SETS

Ul Listing Type: UL Listed for 3 Hour Fire Door
