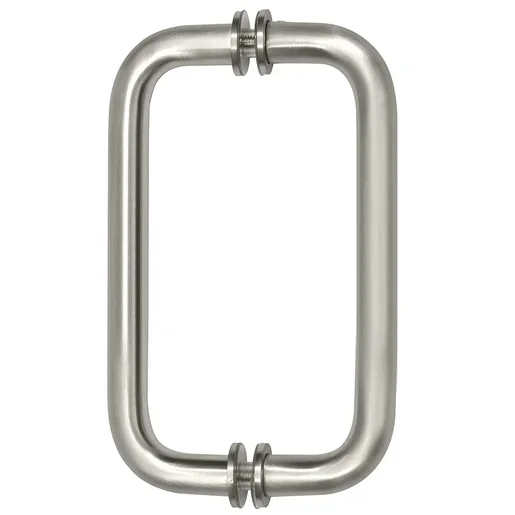

Satin Nickel 8″ BM Series Tubular Back-to-Back Pull Handle by C.R. Laurence

Description

CRL BM8X8SN Satin Nickel 8″ BM Series Tubular Back-to-Back Pull Handle

C.R. Laurence BM8X8SN Satin Nickel 8″ BM Series Tubular Back-to-Back Pull Handle is a standout choice for enhancing both functionality and style in glass applications. This popular handle features a robust 3/4″ (19 mm) diameter brass construction with a 1.5 mil thickness, ensuring durability while maintaining an elegant appearance. The back-to-back design allows for easy installation on glass doors, with a center-to-center hole spacing of 8″ (203 mm) and a required hole diameter of 1/2″ (12 mm). Included decorative metal washers not only serve an aesthetic purpose but also effectively cover any potential hole defects in the glass, providing a polished look. With a glass thickness range of 1/4″ (6 mm) to 1/2″ (12 mm), this handle is versatile enough for various applications, making it an excellent choice for commercial and residential spaces. Available in multiple finish options, including custom finishes, the BM8X8SN can complement any décor. The handle projects 2-1/2″ (64 mm) from the surface, offering a comfortable grip. Whether you’re outfitting a shower or wardrobe door, this pull handle combines quality craftsmanship with timeless style, ensuring satisfaction for years to come.

Satin Nickel 8″ BM Series Tubular Back-to-Back Pull Handle

• Our Most Popular Handle
• Decorative Metal Washers Also Serve to Cover Any Hole Defects in Glass
• Numerous Finish Choices in 6″ and 8″ (152 and 203 mm)
• Custom Finishes Available
• Heavy 3/4″ (19 mm) Diameter Tubular Construction (1.5 mil Thick)
• Use Monolithic Tempered Glass

The
CRL BM Series of Back-to-Back Tubular Pull Handles with Metal Washers are constructed of 1.5 mil thick heavy brass tubing. Decorative metal back-up washers are included, as well as plastic washers to protect against glass-to-metal contact. Consists of one pull for each side of the door (back-to-back), and come in 6″ and 8″ sizes.

Our offering of quality Pull Handles has grown to over a dozen distinct models in numerous different finishes. There’s a handle to complement the décor of virtually any shower or wardrobe door, and each one is constructed of only the finest materials. Whether you choose a back-to-back or single-sided handle, you can rest assured that it will be easy-to-install, and will serve its purpose beautifully for many years. Custom designs and finishes are also available when you need something special.

SPECIFICATIONS:

Material: 3/4″ (19 mm) Diameter Brass Tubing (1.5 mil thick); 1-1/4″ (32 mm) Diameter Washers

Glass Thickness Range: 1/4″ (6 mm) to 1/2″ (12 mm)

Hole Diameter Required: 1/2″ (12 mm)

Center-to-Center Hole Spacing: 6″ (152 mm); 8″ (203 mm)

Thread Size: 1/4″-20

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Construction: Tubular

Diameter: 3/4 in. (19 mm)

Finish/ Color:: Satin Nickel

Glazing Thickness: 1/4 in. To 1/2 in. (6 mm To 12 mm)

Material: Brass

Mounting Center To Center: 8 in. (203 mm)

Mounting Type: Glass Mount – Back To Back

Projection From Surface: 2-1/2 in. (64 mm)

Series: BM

Shipping Limitations: None

Style Washer Diameter: 1-1/4 in. (32 mm)

Style Washers: Yes

Thread Size: 14-20

Resources

• BM6X6 BM8X8 Detailed CAD Drawings.dwg
• BM6X6 BM8X8 Detailed CAD Drawings.pdf
• Door Pull Specifications
• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Quote Request Form
