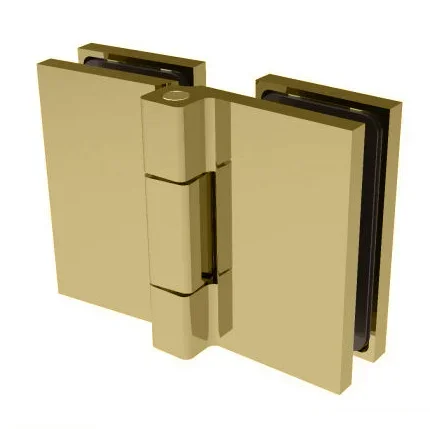

Satin Brass Como Series 180 Glass-to-Glass Hinge by C.R. Laurence

Description

CRL C0M180SB Satin Brass Como 180 Glass-to-Glass Hinge

C.R. Laurence C0M180SB Satin Brass Como Series 180 Glass-to-Glass hinge offers an elegant solution for your glass installations, featuring a sleek satin brass finish. Designed for use with monolithic tempered glass, this hinge accommodates glass thicknesses from 5/16″ to 3/8″ (8 to 10 mm). Its innovative design allows for a saloon door configuration, making it an ideal choice for wheelchair accessibility. Engineered to provide exceptional durability, the C0M180SB hinge has been rigorously tested to withstand 100,000 cycles-five times the industry standard. This ensures long-lasting performance in both residential and hotel settings. With just two holes required per hinge panel, installation is straightforward and does not necessitate any cut-outs. When using two hinges, this model supports door weights of up to 110 lbs (50 kg) with a maximum door width of 39″ (914 mm). For added strength, three hinges can support weights up to 150 lbs (68 kg). Each hinge comes complete with gaskets, screws, and glass fabrication dimensions, ensuring a comprehensive solution for your project.Note that custom finishes are available upon request. The C.R. Laurence C0M180SB hinge combines functionality with style, making it a top choice for discerning professionals.

Satin Brass Como Series 180Glass-to-Glass hinge

• Use Monolithic Tempered Glass
• Works with 5/16″ to 3/8″ (8 to 10 mm) glass
• Allows Saloon Door Configuration
• Ideal for Wheelchair Accessibility
• Snap-on Covers Conceal Screws
• Rigorously Tested to 100,000 Cycles – 5x More than the Industry Standard

The CRL COMO Series of professional Hinges for 5/16″ (8 mm) to 3/8″ (10 mm) tempered safety glass. Only two holes per Hinge per panel are required, with no cut-out necessary.

NOTE: Not Available in Germany.

Using two hinges with 5/16″ to 3/8″ glass (8 to 10 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 39″ (914 mm).

Using three hinges with 5/16″ to 3/8″ glass (8 to 10 mm) the hinge will hold up to 150 lbs. (68 kg) with a maximum door width of 39″ (914 m).

SPECIFICATIONS:

Glass Thickness: 5/16″ (8 mm) to 3/8″ (10 mm) Tempered Safety Glass

Construction: Stainless Steel or Solid Brass

Hinge Swings: See s next to photos of hinges.

Closing Type: Free-Swinging

Two Holes Required Per Hinge Per Panel (No Cut-Out)

Includes: Gaskets, Screws, and Glass Fabrication Dimensions

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
