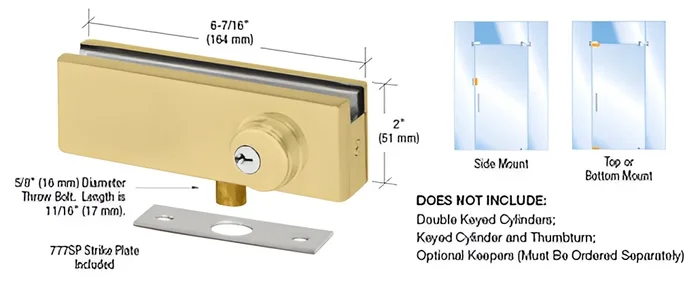

CRL AMR205SB Satin Brass AMR Series Patch Lock
C.R. Laurence AMR205SB Satin Brass AMR Series Patch Lock offers a robust locking solution designed for both aesthetic appeal and functionality. Constructed with a high-density cast body, this patch lock ensures durability and reliability in various applications. It accommodates glass thicknesses of 3/8″ or 1/2″ (10 mm or 12 mm) and is versatile enough to be mounted at the top, bottom, or vertical edge of the door. The AMR205SB comes with gaskets tailored for your glass installations and is available in five stunning architectural finishes, allowing you to match your hardware to your design vision. For added versatility, this patch lock can be secured to a glass panel using the optional AMR206 Sidelite Mount Keeper or other keepers, such as the AMR207 and AMR208, to suit different installation requirements. Installation is straightforward, aided by the provided template and instructions. Please note that cylinders are sold separately, with options including the AMR205CC Double Keyed Cylinder and the AMR205CT Single Keyed Cylinder with Thumbturn. For double door applications, a bottom patch lock is needed for the inactive leaf to ensure security. When choosing the AMR205SB, you’re investing in a reliable locking mechanism that enhances both the security and elegance of your glass doors.
Satin Brass AMR Series Patch Lock
- High Density Cast Body with Lock Mechanism
- Gaskets for use with 3/8″ or 1/2″ (10 or 12 mm) Glass
- Five Architectural Finishes
The
CRL American Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using theAMR206 Sidelite Mount Keeper. A variety of optional keepers, such as AMR207 and AMR208 are available to accommodate most types of installations.
NOTE: Cylinders not included. Must be ordered separately.
Optional Cylinders include either AMR205CC Double Keyed Cylinders or AMR205CT Single Keyed Cylinder with Thumbturn.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4″ (19 mm) Diameter Hole and One Corner Notch
Side Mount:
One 3/4″ (19 mm) Diameter Hole and One U-Cutout (Hole on Top)
COMES WITH:
Template and Instructions
DOES NOT INCLUDE:
Double Keyed Cylinders;
Keyed Cylinder/Thumbturn;
Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
Product Warning:
Cylinders are optional and not included with lock body.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Finish/ Color:: Satin Brass
Glazing Thickness: 3/8 in. (10 mm)
Height: 2 in. (51 mm)
Shipping Limitations: None
Width: 6-7/16 in. (164 mm)
