Description

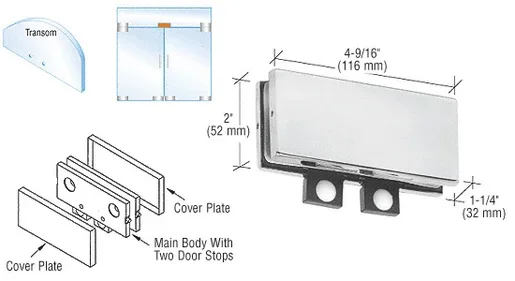

CRL PH70A Satin Anodized Transom Connector with Reversible Door Stops
C.R. Laurence PH70A Satin Anodized Transom Mounted Connector With Two Reversible Door Stops offers a versatile solution for your glass door installations. Designed to accommodate 3/8″ or 1/2″ (10 or 12 mm) monolithic tempered glass, this connector allows doors to swing either in or out, providing flexibility for various architectural layouts. One of the standout features of the PH70A is its adaptability; the door stops can be adjusted to permit one door to open inward while the other opens outward, catering to your specific needs. This connector is suitable for both single and double lite transoms, enhancing its functionality. When the stops are removed, the unit can serve purely as a connector, and it is recommended to orient the fitting so that the notches in the cover plates are not visible, preserving a clean aesthetic. For installation, the connector requires glass fabrication involving two 3/4″ (19 mm) diameter holes. Each purchase comes complete with a template and detailed instructions, ensuring a straightforward installation process. Please note, these fittings are not intended for use with laminated glass, and compliance with safety regulations is advised. Elevate your glass door systems with the PH70A, a perfect blend of style and practicality.
Satin Anodized Transom Mounted Connector With Two Reversible Door Stops
- For 3/8″ or 1/2″ (10 or 12 mm) Glass
- Doors Can Swing Either In or Out
- Use Monolithic Tempered Glass
CRL Door Stops can be set for the doors to only open in or out. You can also make it so one door opens in and the other door opens out. The Connector can be used on one lite or two lite transoms, and with the stops removed can be used as a Connector only. When used as Connector only, it is suggested that you turn the fitting around so the notches in the Cover Plates face up, and are not visible.
The connector can be used on one lite or two lite transoms, and with the stops removed, can be used as a Connector only. When used as Connector only, it is suggested that you turn the fitting around so the notches in the Cover Plates face up, and are not visible.
GLASS FABRICATION REQUIRED:
Two 3/4″ (19 mm) Diameter Holes
COMES WITH:
Template and Instructions
Product Warning:
NOTE: These Fittings are not for use with laminated glass.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Finish/ Color:: Satin Anodized
Glazing Thickness: 1/2 in. (12 mm)
Shipping Limitations: None
Resources
- PH70 Template.dwg
- PH70 Template.pdf
- Template gc-ph70.dwg
