Satin Anodized Aluminum Manhattan Series Post Mounted Hand Rail Bracket by C.R. Laurence

Description

CRL HR2SPSA Satin Anodized Aluminum Manhattan Post-Mounted Handrail Bracket

C.R. Laurence HR2SPSA Satin Anodized Aluminum Manhattan Series Post Mounted Hand Rail Bracket combines durability and elegance, making it an essential addition for any architectural project. Designed for easy installation, this bracket is ready-to-mount to either 1-1/4″ or 1-1/2″ (32 or 38 mm) Schedule 40 vertical posts, ensuring versatility and adaptability to various applications. Crafted from high-quality aluminum, the HR2SPSA is available in several architectural finishes, allowing you to select the perfect aesthetic for your space. It accommodates 1-1/2″, 1.9″, or 2″ (38, 48.3, or 50.8 mm) diameter hand rail tubing, providing flexibility in design and functionality. The bar angle and railing bracket angle are adjustable, enabling precise alignment for a polished finish. With a centerline projection of 2-7/8 in. (73 mm), this bracket is engineered for optimal performance while adhering to compliance standards. The satin anodized finish not only enhances visual appeal but also offers resistance against wear and corrosion.Whether you’re working on a commercial project or a residential renovation, the C.R. Laurence HR2SPSA Hand Rail Bracket ensures a sturdy, stylish solution for your railing needs.

Satin Anodized Aluminum Manhattan Series Post Mounted Hand Rail Bracket

• Ready-to-Mount to Either 1-1/4″ or 1-1/2″ (32 or 38 mm) Schedule 40 Vertical Posts
• Available in Several Architectural Finishes
• For 1-1/2″, 1.9″ or 2″ (38, 48 or 51 mm) Diameter Hand Rail Tubing

This

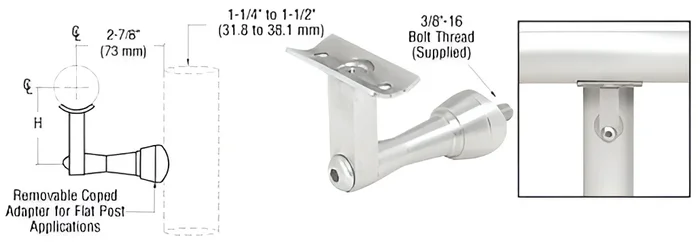

CRL Manhattan Series Post Mounted Hand Rail Bracket is available in several architectural finishes for 1-1/2″, 1.9″ or 2″ (38, 48.3 or 50.8 mm) diameter hand railing tubing. Bar angle and railing bracket angle adjust.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Centerline Projection: 2-7/8 in. (73 mm)

Centerline Width Projection: 2-7/8 in. (73 mm)

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Finish/ Color:: Satin Anodized

Material: Aluminum

Shipping Limitations: None

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• HR2SP Detailed CAD Drawings.dwg
• HR2SP Detailed CAD Drawings.pdf
• HRS Quote Request Form
• HRS System CAD Drawings.dwg
• HRS System CAD Drawings.pdf
