Description

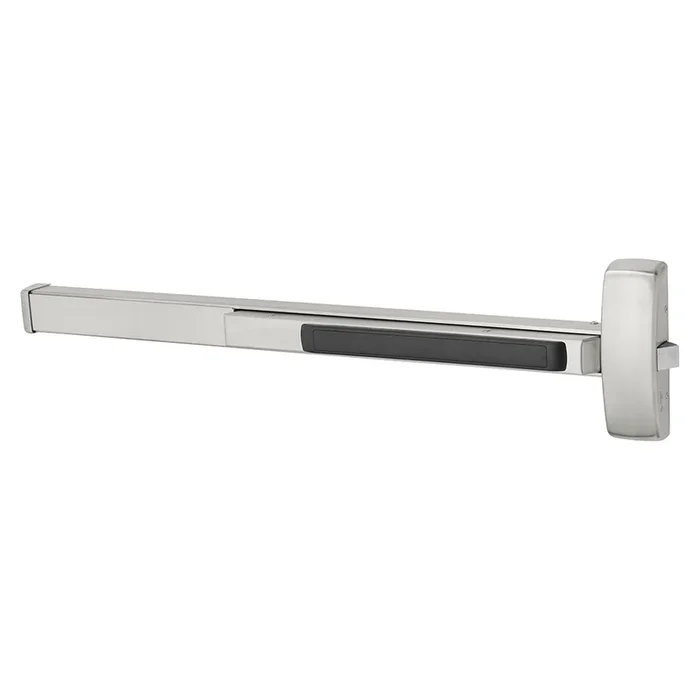

Sargent 12-8804G 32D NL Function Rim Exit Device
Sargent 12-8804G 32D Rim Exit Device, NL Function is a robust Grade 1 exit bar designed for commercial applications where safety and reliability are paramount. Featuring a wide stile pushpad and a fire-rated design, this 48″ rim exit device incorporates a night latch function, ensuring secure locking while facilitating easy egress. The satin stainless steel finish not only enhances its aesthetic appeal but also ensures durability in high-traffic environments. Engineered to exceed ANSI/BHMA Grade 1 standards, the Sargent 8800 Series exit devices are constructed with modular design and fewer moving parts, making them virtually maintenance-free. The device is field reversible, allowing for versatile installation on wood or metal doors with a thickness of 1-3/4″ to 2-1/4″. It supports door widths ranging from 24″ to 48″, accommodating various configurations including single and double door applications with mullions. With a UL listing for fire and panic safety, the Sargent 12-8804G provides peace of mind for facility managers and building professionals. Its quiet operation and solid security features make it an ideal choice for enhancing safety standards in any commercial setting. Backed by a five-year limited warranty, this exit device is built to last, ensuring long-term reliability.
Rim Exit Device, NL Function
Grade 1 Rim Exit Bar, Wide Stile Pushpad, 48″ Fire-Rated Device, Night Latch Function, Less Dogging, Satin Stainless Steel Finish, Field Reversible
The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
The 8800 series is designed for standard width stile applications on wood and metal doors.
The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent’s full line of exit devices.
Door Types: Wood or metal 1-3/4″(44mm) Thick Door; Over 1-3/4″ specify thickness and order as a 31- prefix.
Door Widths:E Rail – 24″ to 32″ (61cm to 81cm) No cutting required for 32″ door;F Rail – 33″ to 36″ (84cm to 91cm) No cutting required for 36″ door;J Rail – 37″ to 42″ (94cm to 107cm) No cutting required for 42″ door; G Rail – 43″ to 48″ (110cm to 122cm) No cutting required for 48″ door
Features:
- Single point rim latching device
- Single door & double door applications with mullions
- Quiet operation and solid security
- Devices are ANSI A156.3 – Grade 1
- UL Fire and Panic listed
Attributes
Accessible: No
Ada Compliance: No
Ansi: ANSI/BHMA A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Rim
Device Length: 48″
Device Type: Rim
Dogging Options: Less Dogging
Door Material: Metal or Wood
Door Thickness: 1-3/4″ – 2-1/4″
Door Width: 43″ to 48″
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Grade: Grade 1
Handing: Non-Handed
Includes Cylinders: Yes
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Night Latch
Minimum Stile Size: 4-3/4″
Origin: USA
Pack Height: 6″
Pack Length: 51″
Pack Qty: 1
Pack Volume: 2295 in³
Pack Width: 7.5″
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 8800 Series Rim Exit Devices
Ship Weight: 15 lbs.
Strike Standard: 649
Subtype: Rim Exit Devices
Trim Type: Cylinder Only
Type: Exit Devices
Ul Listing: UL10C & UL305
Unit of Measure: Each
