Description

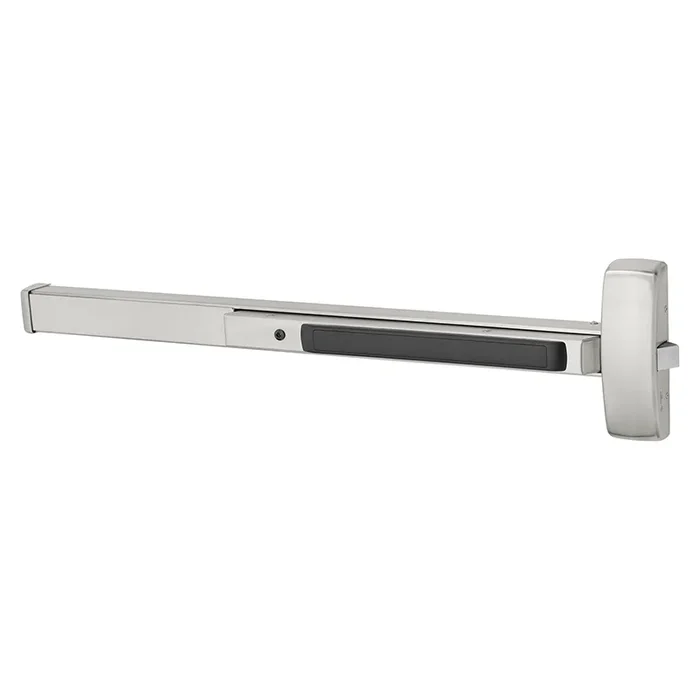

Sargent 8876J-12V ETP LHR 32D Fail Secure Rim Exit Device
Sargent 8876J-12V ETP LHR 32D Rim Exit Device, Fail Secure offers robust security and reliability for high-traffic environments. As a Grade 1 rim exit bar, it features a wide stile pushpad and a 42″ device length designed for easy operation. This exit device is compatible with electrified trim functions, utilizing a P keyed electric lever for seamless access control. The fail secure design ensures that the door remains locked in the event of a power failure, providing peace of mind. Constructed from satin stainless steel, the Sargent 8876J boasts a sleek, matte finish that enhances both aesthetics and durability. Its hex key dogging feature allows for easy manual operation, while the field-reversible handing accommodates various installation needs. The device meets ANSI/BHMA A156.3 Grade 1 standards, ensuring exceptional performance and longevity. Suitable for both single and double door applications with mullions, the 8876J is designed for wood or metal doors with a thickness of 1-3/4″ to 2-1/4″. With options for delayed egress and alarmed exit, this exit device is versatile enough to meet unique security requirements. Trust the Sargent 8876J for a maintenance-free, high-security solution that stands the test of time.
Rim Exit Device, Fail Secure
Grade 1 Rim Exit Bar, Wide Stile Pushpad, 42″ Device, Device to Accept Electrified Trim Function, P Keyed Electric Lever, Fail Secure, Hex Key Dogging, Satin Stainless Steel Finish, Field Reversible
The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
The 8800 series is designed for standard width stile applications on wood and metal doors.
The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent’s full line of exit devices.
Door Types: Wood or metal 1-3/4″(44mm) Thick Door; Over 1-3/4″ specify thickness and order as a 31- prefix.
Door Widths:E Rail – 24″ to 32″ (61cm to 81cm) No cutting required for 32″ door;F Rail – 33″ to 36″ (84cm to 91cm) No cutting required for 36″ door;J Rail – 37″ to 42″ (94cm to 107cm) No cutting required for 42″ door; G Rail – 43″ to 48″ (110cm to 122cm) No cutting required for 48″ door
Features:
- Single point rim latching device
- Single door & double door applications with mullions
- Quiet operation and solid security
- Devices are ANSI A156.3 – Grade 1
- UL Fire and Panic listed
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI/BHMA A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Rim
Device Length: 42″
Device Type: Rim
Dogging Options: Hex Key Dogging
Door Material: Metal or Wood
Door Thickness: 1-3/4″ – 2-1/4″
Door Width: 37″ to 42″
Electric Options: Fail Secure
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Left Hand Reverse
Includes Cylinders: Yes
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Device to Accept Electrified Trim
Minimum Stile Size: 4-3/4″
Origin: USA
Pack Height: 6″
Pack Length: 38″
Pack Qty: 1
Pack Volume: 1710 in³
Pack Width: 7.5″
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 8800 Series Rim Exit Devices
Ship Weight: 18 lbs.
Strike Standard: 649
Subtype: Rim Exit Devices
Trim Design: Keyed Electric Lever
Trim Part No: 776-8 ETP 12V LHRB 26D
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL10C & UL305
Unit of Measure: Each
