Sargent Rim Exit Device – Exit Only | Durable Door Hardware

Description

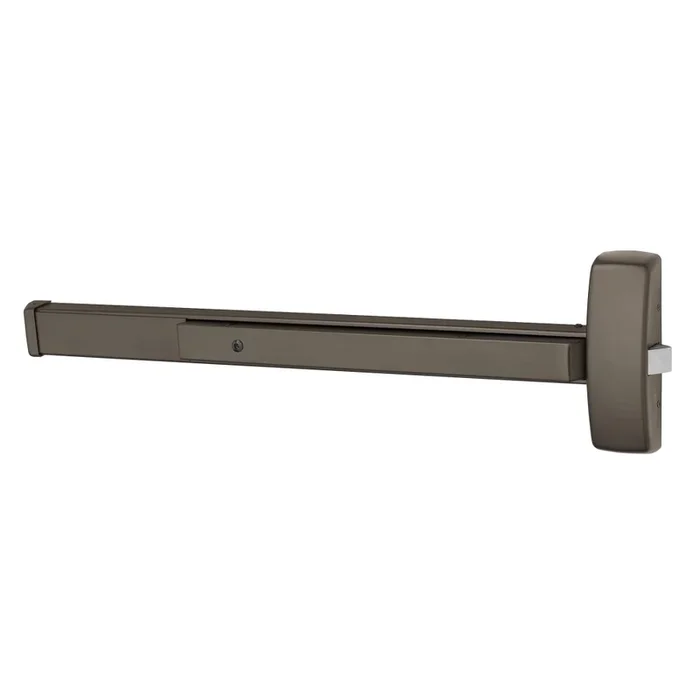

Sargent 19-8810F 10BE Rim Exit Device – Exit Only

Sargent 19-8810F 10BE Rim Exit Device, Exit Only provides a robust security solution ideal for commercial environments. This Grade 1 Rim Exit Bar features a wide stile pushpad and a 36″ device length, ensuring easy and reliable egress while meeting the highest ANSI/BHMA standards. Designed for single door and double door applications with mullions, it operates quietly, maintaining solid security without compromising on functionality. Equipped with hex key dogging, the Sargent 19-8810F is a non-handed device that can be reversed to suit your installation needs. Its durable construction is made to withstand the rigors of daily use, making it a maintenance-free choice for any facility. The dark oxidized bronze finish not only enhances its aesthetic appeal but also provides additional resistance to wear and tear. Compatible with wood or metal doors that are 1-3/4″ to 2-1/4″ thick, this exit device accommodates various door widths. The Sargent 8800 Series devices exceed expectations in security and reliability, making them a trusted choice for building professionals. With a limited warranty of five years, you can confidently rely on the Sargent 19-8810F to deliver exceptional performance for years to come.

Rim Exit Device, Exit Only

Grade 1 Rim Exit Bar, Wide Stile Pushpad, 36″ Device, Exit Only, Hex Key Dogging, Less Lexan Push Pad Touchbar, Dark Oxidized Bronze Finish, Field Reversible

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

The 8800 series is designed for standard width stile applications on wood and metal doors.

The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent’s full line of exit devices.

Door Types: Wood or metal 1-3/4″(44mm) Thick Door; Over 1-3/4″ specify thickness and order as a 31- prefix.

Door Widths:E Rail – 24″ to 32″ (61cm to 81cm) No cutting required for 32″ door;F Rail – 33″ to 36″ (84cm to 91cm) No cutting required for 36″ door;J Rail – 37″ to 42″ (94cm to 107cm) No cutting required for 42″ door; G Rail – 43″ to 48″ (110cm to 122cm) No cutting required for 48″ door

Features:

• Single point rim latching device
• Single door & double door applications with mullions
• Quiet operation and solid security
• Devices are ANSI A156.3 – Grade 1
• UL Fire and Panic listed

Attributes

Accessible: No

Ada Compliance: No

Ansi: ANSI/BHMA A156.3

Baa Qualified: Yes

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: Non-Keyed

Device Length: 36″

Device Type: Rim

Dogging Options: Hex Key Dogging

Door Material: Metal or Wood

Door Thickness: 1-3/4″ – 2-1/4″

Door Width: 33″ to 36″

Finish: 613E/US10BE

Finish Family: Dark Bronze

Fire Rated: No

Fire Rating: No

Grade: Grade 1

Handing: Non-Handed

Includes Cylinders: No

Includes Trim: No

Installation: Commercial

Limited Warranty: 5 Years

Mechanical Function: Exit Only

Minimum Stile Size: 4-3/4″

Origin: USA

Pack Height: 6″

Pack Length: 38″

Pack Qty: 1

Pack Volume: 1710 in³

Pack Width: 7.5″

Physical Appearance: Wide Stile Pushpad

Restrictions: None

Reversible: Yes

Series: 8800 Series Rim Exit Devices

Ship Weight: 15 lbs.

Strike Standard: 649

Subtype: Rim Exit Devices

Touch Bar Options: Less Lexan Push Pad

Trim Type: Less trim

Type: Exit Devices

Ul Listing: UL10C & UL305

Unit of Measure: Each
