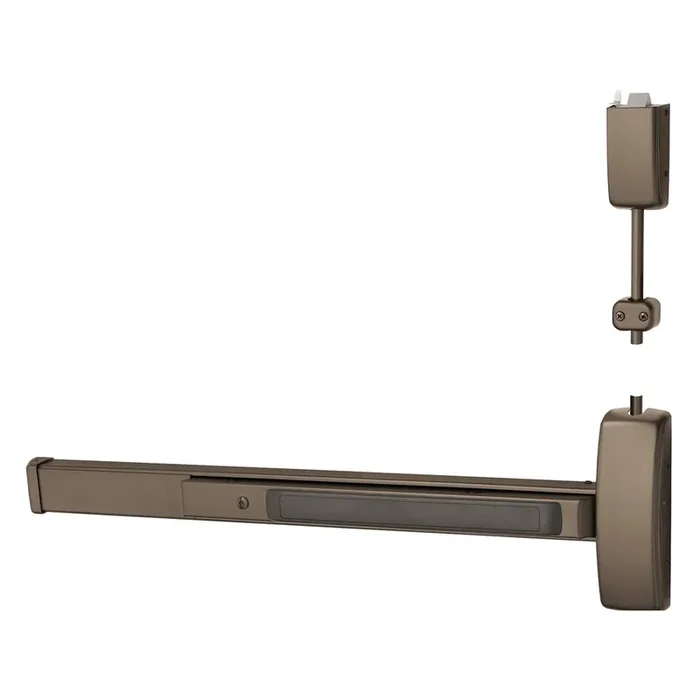

Sargent NB8710F LHR 10B NB-SVR Exit Device – Exit Only
Sargent NB8710F LHR 10B NB-SVR Exit Device, Exit Only offers robust security and reliability, making it an essential choice for commercial environments. This Grade 1 surface vertical rod exit device features a wide stile pushpad and is designed to fit 36″ devices on doors up to 84″ high. Constructed to exceed ANSI/BHMA Grade 1 standards for cycle and strength, the NB8700 Series promises maintenance-free operation thanks to its modular design and minimal moving parts. The device is ideal for both wood and metal doors with a thickness of 1-3/4″ to 2-1/4″. It is compatible with door widths ranging from 33″ to 36″, ensuring versatility for various installations. Notably, this exit device includes hex key dogging and comes in a dark oxidized satin bronze oil-rubbed finish, enhancing both aesthetics and durability. With options for unique applications, such as delayed egress and alarmed exits, the Sargent NB8710F provides a comprehensive solution for safety and accessibility. Backed by a 5-year limited warranty, this exit device exemplifies Sargent’s commitment to quality, making it a reliable choice for any facility’s security needs.
NB-SVR Exit Device, Exit Only
Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 36″ Device, 84″ Door Height, Exit Only, Less Bottom Rod, Hex Key Dogging, Dark Oxidized Satin Bronze Oil Rubbed Finish, Left Hand Reverse
The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
The NB8700 Series is a top latch surface vertical rod exit device.
The NB8700 Series is part ofSargent’s full line of exit devices that provide the best combination ofsimplicity, strength, durability, aesthetics and innovation. This series has both rated and non-rated openings.
- Door Types: Wood or metal 1-3/4″(44mm) Thick Door; Over 1-3/4″ to 2-1/4″ specify thickness and order as a 31- Prefix; 4-1/2″ (114mm) minimum stilewith trim and 3-1/2″ (44mm) minimum stile without trim
- Door Widths:E Rail – 24″ to 32″ (61cm to 81cm) No cutting required for 32″ door;F Rail – 33″ to 36″ (84cm to 91cm) No cutting required for 36″ door;J Rail – 37″ to 42″ (94cm to 107cm) No cutting required for 42″ door;G Rail – 43″ to 48″ (110cm to 122cm) No cutting required for 48″ door
Attributes
Accessible: No
Ada Compliance: No
Ansi: ANSI/BHMA A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36″
Device Type: Surface Vertical Rod
Dogging Options: Hex Key Dogging
Door Height: 84″
Door Material: Metal or Wood
Door Thickness: 1-3/4″ to 2-1/4″
Door Width: 33″ to 36″
Finish: 613/US10B
Finish Family: Dark Bronze
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Left Hand Reverse
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Exit Only
Mechanical Options: Less Bottom Rod
Minimum Stile Size: 3-1/2″
Origin: USA
Pack Height: 6″
Pack Length: 38″
Pack Qty: 1
Pack Volume: 1710 in³
Pack Width: 7.5″
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: No
Series: NB8700 Series Surface Vertical Rod Exit Devices
Ship Weight: 15 lbs.
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 646
Trim Type: Less Trim
Type: Exit Devices
Ul Listing: UL10C & UL305
Unit of Measure: Each
Resources
- 8700 Series Surface Vertical Rod Exit Devices Cut Sheet
- NB8700 Series Installation Instructions
