Description

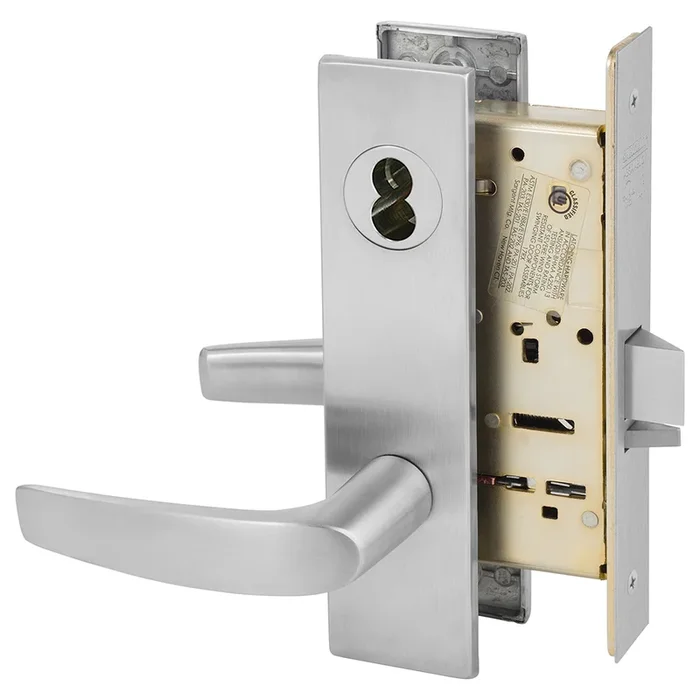

Sargent 70-8205 LE1B 26D Grade 1 Entry with Turn Knob, No Deadbolt Instructions

Sargent 70-8205 LE1B 26D Gr 1 Entry wT-turn, No DB is a premier choice for secure office or entry applications. This robust mortise lock features the LE1 Escutcheon and B Lever design, crafted to exceed ANSI/BHMA A156.13 Series 1000 Grade 1 standards, ensuring exceptional strength and durability. With its SFIC preparation and satin chrome finish, it combines aesthetic appeal with practical security. The 8200 series is recognized as the industry benchmark for mortise locks, offering a variety of lever designs, escutcheons, and architectural finishes to suit diverse environments, including schools, hospitals, and corporate offices. Engineered for maximum performance, this lock is UL-cUL listed for three-hour fire doors and windstorm applications. Installation is straightforward with the field-reversible handing and multifunctional lock body, which allows for easy switching of functions while minimizing inventory needs. Sargent’s 70-8205 also comes with a 10-year warranty, reinforcing its reliability. Key features include a 3/4″ latch bolt projection, compatibility with various security key systems, and a selection of 58 functions. This lock not only delivers superior security against unauthorized access but also enhances the visual design of any door it adorns.

Gr 1 Entry wT-turn, No DB

Office or Entry Mortise Lock, LE1 Escutcheon, B Lever, SFIC Prep Less Core, Satin Chrome

When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability

Constructed with the highest quality components to provide maximum security, durability and performance.

Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.

Features:

• ANSI/BHMA Grade 2 certified for cycle and strength requirements
• UL-cUL listed for three-hour fire doors and windstorm applications
• Thru-bolted lever trim and strengthened cylinder retainer
• Available with security key systems (Degree, Signature, KESO, and XC)
• Available in 58 different functions, including electromechanical, security (freewheeling, security escutcheon, anti-vandal pull trim) and monitoring
• 6 lever designs, 2 roses/escutcheons designs, and 14 architectural finishes offered
• Available with behavioral health trim
• 10-year warranty
• Patented design and construction

Benefits:

• Strength & Reliability: Exceeds independent testing, making it the most durable mortise lock in the industry.
• Security: Security features provide resistance against unauthorized entry and vandalism.
• Flexibility & Aesthetics: Visual designwith a variety of functions, lever designs and architectural finishes match a wide range of styles and make it perfect for all types of applications (such as offices, hospitals, behavioral health environments, schools/universities).
• Ease of Installation & Maintenance: Multifunctional lockbody makes switching functions easy and reduces inventory requirements.

Attributes

Ansi Function: F04 – Entry/Office

Application: Complete Lock

Baa Qualified: Yes

Base Material: Brass or Bronze

Bolt Projection: 3/4″ Latch

Country of origin: USA

Cylinder Type: SFIC Prep Less Core

Door Thickness: 1-3/4″

Finish: 626/US26D

Fire Rated: 2 Hours {B}

Fire Rating: 2 Hours {B}

Function: 05-Office or Entry

Grade: Grade 1

Handing: Field Reversible

Leverknob Design: B – Lever

Limited Warranty: 10 Years

Lock Face Size: 8″ x 1-1/4″

Origin: USA

Pack Height: 4.38″

Pack Length: 9.25″

Pack Qty: 1

Pack Volume: 227.64 in³

Pack Width: 5.63″

Roseescutcheon Design: LE1 – Escutcheon

Screws: Combination

Series: 8200 Line Lever Mortise Locks

Ship Weight: 6.1 lbs.

Std Strike Height: 4-7/8″

Std Strike Number: 82-0110

Std Strike Type: ASA

Std Strike Width: 1-1/4″

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each

Resources

• 7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructions
• 7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructions
• 7800/8200 Series Mortise Locks Installation Instructions
• 7900/8200 Series Mortise Locks Installation Instructions
• 8200 Line Lever Mortise Locks Cut Sheet
• 8200 Mortise Sectional Indicator Trim Template
• Sargent 8200 Series Environmental Product Declaration (EPD)
• Sargent 8200 Series Mortise Locks Sell Sheet
• Video: 8200 Series Mortise Lock Installation
