Description

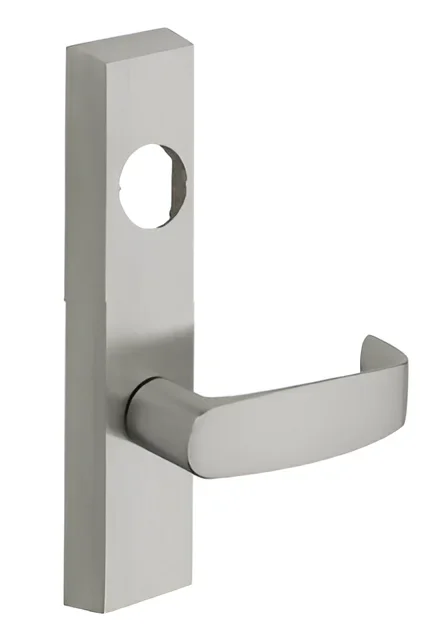

Sargent P704-NEL-26D RHR LA Next Gen Exit Trim L Lever for PE8888 Night Latch, RHR, Satin Chrome
Sargent P704-NEL-26D RHR LA Exit Trim L Lever Next Generation is expertly designed for the PE8888 night latch system, offering a storeroom function that combines security and convenience. The trim features a right-hand reverse (RHR) configuration with a key that retracts the latch, ensuring easy access while maintaining a high level of security. This non-handed trim is through-bolted to the chassis, enhancing durability and resistance to tampering. It comes with a 34 rim cylinder and is equipped with an LA keyway, allowing for single-bitted operation. The satin chrome (626) finish not only provides a sleek appearance but also meets ANSI/BHMA standards for durability and aesthetics. One of the standout features of this exit trim is the easy-operating lever handle, facilitating one-handed operation-ideal for high-traffic areas. The trim is compatible with various Sargent exit devices, expanding its versatility. With multiple functions available, including key retraction and electrified options, it caters to a variety of needs and applications. Whether you are a building professional or a knowledgeable homeowner, the Sargent P704-NEL-26D offers a reliable, stylish, and functional solution for your exit trim requirements. Secure your space with this next-generation lever trim that aligns safety with modern design.
Exit Trim L Lever Next Generation for PE8888, Night Latch (Storeroom Function), Key Retracts Latch, RHR Right Hand Reverse, Handing Field Reversible, 34 Rim Cylinder Supplied, LA Keyway 1-Bitted, 626/US26D Satin Chrome
Notice: The info below is not item specific.
The 700 series ET control is sold separately from the exit device and can be used with 8888 & 8810 exit device. The trim is non handed and is through bolted to the chassis for greater security and durability. Available in 7 functions and Sargent studio, coastal and standard lever designs to accommodate most requirements.
Features:
- ANSI/BHMA Finishes
- Easy operating lever handle allows convenient one hand operation
- ET trim is not available in 32 or 32D
- Stainless steel levers are available
Functions:
- 04: Night latch key retracts latch #34 cylinder supplied. ANSI 03
- 10: No O/S operation or cylinder (pull only). ANSI 02
- 13: Key outside unlocks/locks trim #41 cylinder supplied. ANSI 08
- 15: Passage only (no cylinder). ANSI 14
- 63: Key outside unlocks/locks thumbpiece #34 cylinder supplied. ANSI 05
- 66: Key outside retracts latch; key inside unlocks/locks O/S trim O/S #34 & I/S #44. ANSI 07
- 73: Electrified ET trim – fail safe power off, unlocks lever (no cylinder)
- 74: Electrified ET trim – fail secure power off, locks lever (no cylinder)
- 75: Electrified ET trim – fail safe power off, unlocks lever, key retracts latch #34 cylinder supplied
- 76: Electrified ET trim – fail secure power off, locks lever, key retracts latch #34 cylinder supplied
Finishes:
- 0-3/605 – Bright brass, clear coated
- 0-4/606 – Satin brass, clear coated
- 0-9/611 – Bright bronze, clear coated
- 1-0/612 – Satin bronze, clear coated
- 10B/613 – Dark oxidized satin bronze, oil rubbed
- 10BE/613E – Dark oxidized satin bronze, equivalent
- 10BL/613L – Dark oxidized satin bronze clear coated
- 20D/624 – Dark statuary bronze lacquered
- 2-6/625 – Bright chrome plated
- 26D/626 – Satin chrome plated
- 3-2/629 – Bright stainless steel
- 32D/630 – Satin stainless steel
- BSP – Black suede powder coat
- WSP – White suede powder coat
Attributes
Alternate Codes: P704-NEL-26D-RHR, P704NEL26DRHR, P704-NEL-26D RHR LA, P704-NEL-26D-RHR-LA, P704NEL26DRHRLA, SARP704-NEL-26D-RHR, SARP704-NEL-26D-RHR-LA, SARP704-NEL-26D RHR LA-1BIT
Category: Panic Devices & Exit Alarms, Panic Device Trims
Door Application: Panic Device Trims
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Function: Key Retracts Latchbolt
Handing: Right Handed Reverse
Keying: 1-Bitted
Keyway: Sargent LA
Lever Design: L
Trim Option: Narrow Trim
