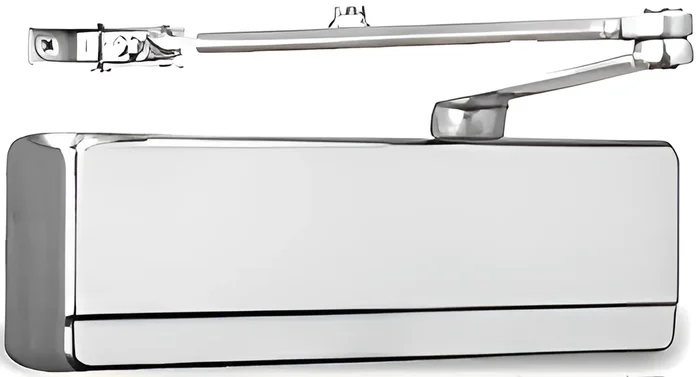

Sargent 1431 Series Surface Door Closer – RUO Regular/Universal Arm

Description

Sargent 1431RUO-EN TB 1431 Series Surface Door Closer, RUO Arm, ADA Powerglide, UL Listed, Grade 1

Sargent 1431RUO-EN TB 1431 Series Surface Door Closer delivers unmatched durability and performance, making it an ideal choice for high-traffic environments such as schools, healthcare facilities, and commercial buildings. This heavy-duty door closer features a robust aluminum alloy body with a Grade 1 rating, ensuring long-lasting wear resistance and strength. The adjustable spring size ranges from 1 to 6, accommodating various door types and settings. Designed with versatility in mind, the 1431 Series supports multiple mounting options, including standard, top jamb, and parallel installations. Its user-friendly design includes self-sticking templates for easy installation, while the captured valves prevent accidental removal, enhancing safety and reliability. With a 1-1/2″ diameter piston, this closer provides superior door control, while standard pressure relief valves protect against damage during both opening and closing cycles. The all-weather fluid allows the closer to operate efficiently in extreme temperatures, ensuring consistent performance year-round. Furthermore, it exceeds 15 million cycles, reflecting its robust design and stringent testing for reliability. With a 30-year limited warranty, the Sargent 1431RUO-EN TB is a dependable investment for any facility requiring effective door control and security.

1431 Series Surface Door Closer, RUO Regular/Universal Arm with Parallel Mounting Bracket, ADA Aluminum Powerglide Series, Adjustable Spring Size 1-6, UL Listed for Fire Rated Doors, All Weather Fluid, Grade 1, 689/EN Sprayed Aluminum

Notice: The info below is not item specific.

The 1431 series Powerglide door closer features heavy-duty construction for superior strength and wear resistance. It is ideally suited for highly trafficked environments like schools, healthcare facilities, office buildings, and commercial buildings. With a full complement of arm types and front-facing valves, this door closer can be easily installed and maintained—for interior and exterior applications.

Features:

• Exceeds 15 million cycles
• User friendly versatile mounting applications permit standard, top jamb, parallel and track installations
• Self sticking templates supplied for most applications
• Adjustable spring power allows 1431 closers a size range of 1 through 6.
• One door closer body for all applications
• High impact non-corrosive plastic covers with two machine screws standard, metal covers and lead lined are optional
• All weather fluid allows closer to operate effectively in extreme temperatures without readjustment
• 1-1/2″ diameter piston for superior door control
• Standard pressure relief valves for both opening and closing cycles protect the door and frame from damage caused by abuse
• All valves are captured to prevent accidental removal
• Heavy duty one piece high silicon content aluminum alloy body provides corrosion resistance, superior strength and wear resistance
• Heat treated full rack and pinion for high strength and wear resistance
• Stringent testing supports a long-life of reliability
• Heavy duty forged steel arms are finely finished and interchangeable between Sargent 281 and 1431, and 351 series
• All valves are captured to prevent accidental removal
• Adjustable backcheck protects the door and hardware from damage during the opening cycle
• Standard pressure relief valves for both opening and closing cycles protect the door and frame from damage caused by abuse

Specifications:

• Arm Material: Forged steel
• Body Material: Aluminum alloy
• Closer Type: Surface
• Warranty: 30-year limited warranty

Arms and Accessories for Standard Applications:

• O – Standard Arm:
• Forged steel arm 11-1/4″ (286mm) long
• Non-handed
• Permits 120° door opening with standard mounting
• Permits 180° door opening with alternate mounting or corner bracket
• RO Regular Arm:
• Cold formed steel arm 11-1/4 (286mm) long
• For reveal depths up to 2″ (51mm)
• Arm is not handed
• Permits 180° door opening
• H – Hold Open Arm:
• Forged steel arm 11-1/4″ (286mm) long
• Non-handed
• Hand is changed by inverting the foot assembly
• Friction type holder easily adjusted by a wrench
• Permits 180° door opening
• Holds open from 80° – 180°
• O8 – Mortise Foot Arm:
• Forged steel arm 11-1/4″ (286mm) long
• Non-handed
• Permits 120° door opening
• Commonly used with bull nose frames
• H8 – Mortise Foot Hold Open Arm:
• Forged steel arm 11-1/4″ (286mm) long
• Handed same as door
• Friction type holder easily adjusted by a wrench
• Holds open from 80° – 180°
• OLC – Standard Arm for Low Ceiling:
• Forged steel arm 11-1/4″ (286mm) long
• Non-handed
• Must be used when the distance between the top of door to ceiling is less than 1-1/4″ (32mm)
• Permits 120° door opening with standard mounting
• UH Package: Universal hold open arm package provides brackets and arms to install closer in top jamb, standard or parallel applications
• UO/RUO Packages: Universal arm package provides brackets and arms to install closer in standard top jamb or parallel applications
• 1431-W Corner Bracket:
• Fastens securely to both the head and jamb
• Malleable iron, painted to match closer finish
• Non-handed
• Requires 1-1/4″ (32mm) minimum wide stop
• Order as 1431-W x finish
• 1431-J Cover Plate: Can be used to improve appearance when narrow door rail permits closer to be viewed through glass panel. Specify finish.

Finishes:

• EB/695 – Bronze powder coated to match finish 10B
• EN/689 – Aluminum powder coated
• ED/693 – Black powder coated to match finish 20D
• EAB/696 – Brass powder coated
• EP/691 – Bronze powder coated to match finish 10
• 03/605 – Bright brass, clear coated
• 04/606 – Satin brass, clear coated
• 09/611 – Bright bronze, clear coated
• 10/612 – Satin bronze, clear coated
• 10B/613 – Dark oxidized satin bronze, oil rubbed
• 10BE/613E – Dark oxidized satin bronze – equivalent
• 10BL/614 – Oxidized satin, bronze, clear coated
• 14/618 – Bright nickel plated, clear coated
• 15/619 – Satin nickel, clear coated
• 20D/624 – Statuary dark bronze, clear coated
• 26/625 – Bright chromium plated
• 26D/626 – Satin chromium plated
• BSP – Black suede powder coat
• WSP – White suede powder coat

Attributes

Alternate Codes: 1431RUO-EN TB, 1431RUOENTB, SARTB1431RUO-EN, SARTB1431RUOEN, TB1431RUO-EN, TB1431RUOEN

Arm Type: Wrought Universal Arm

Category: Door Closers, Surface Mount Closers, Surface Mount Misc. Parts

Door Application: Surface Mount Closers
