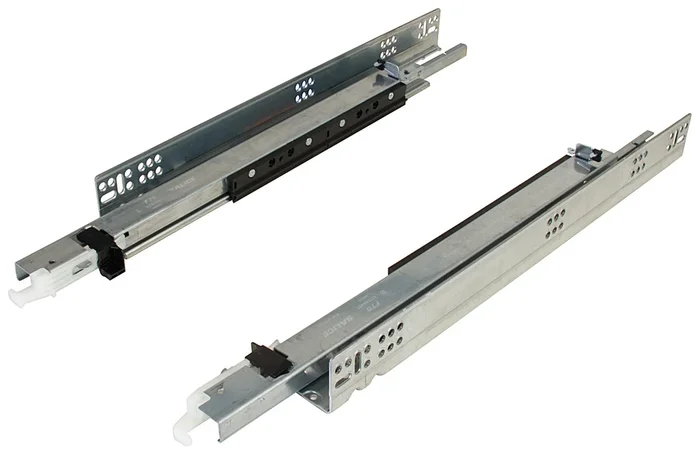

Salice Progressa+ Smove Drawer Slide – Full Extension for 12mm to 16mm Drawer Material

Description

Hafele 421.23.414 Salice Progressa+ Smove Full Extension Drawer Slide, 12-16mm

Hafele 421.23.414 Salice Progressa+ Smove Drawer Slide offers exceptional functionality and ease of use for frameless cabinetry. Designed for drawer materials ranging from 12 mm (1/2″) to 16 mm (5/8″), this full-extension slide boasts a length of 610 mm (24″), ensuring smooth operation and accessibility. Crafted in Italy, the slide features adjustable clips, making drawer insertion and removal a breeze. With tool-less adjustments for height (+2.5 mm / 3/32″), side (+/-1.5 mm / 1/16″), and depth (+/-3 mm / 1/8″), you can achieve the perfect fit without the hassle of extra tools. The integrated soft-close mechanism ensures quiet and gentle closure, enhancing the overall user experience. Constructed with a robust steel material, the Hafele drawer slide supports a dynamic load-bearing capacity of 70 kg (154 lbs) and a static capacity of 77 kg (170 lbs), making it suitable for various applications. For drawers exceeding 30″ in width, a synchronizer kit is recommended for optimal performance.With elongated holes for depth and height adjustment, the Salice Progressa+ Smove Drawer Slide is the ideal choice for building professionals and discerning homeowners looking for reliability and versatility in their cabinetry solutions.

Salice – Undermount Drawer Slide, Progressa+ Smove, Full Extension for 12 mm (1/2″) to 16 mm (5/8″) drawer material

Drawer length: 610 mm (24″) for frameless

Adjustable clips allow for easy drawer insertion and removal 100% made in Italy
Tool-less height adjustments: +2.5 mm (3/32″) Tool-less side adjustments: +/-1.5 mm (1/16″) Tool-less depth adjustment: +/- 3 mm (1/8″)

Face frame construction runners inside cabinet depth include metal socket For drawers wider than 30″, a synchronizer kit is recommended

Attributes

Cabinet depth: Min: 630 mm (24 25/32″)

Drawer length: 610.00 mm

Features: Elongated holes for depth and height adjustment Fully integrated soft close mechanism

For internal cabinet depth min.: N/A

For max. internal cabinet depth: N/A

Load bearing capacity: 70.00 kg

Material: Steel

Nominal length: 621.00 mm

Note on load bearing capacity: Dynamic: 70 kg (154 lbs) Static: 77 kg (170 lbs)

Type of pull out: Full extension

Version: For Frameless Construction

Resources

• Manufacturer information
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 8.62A
