Description

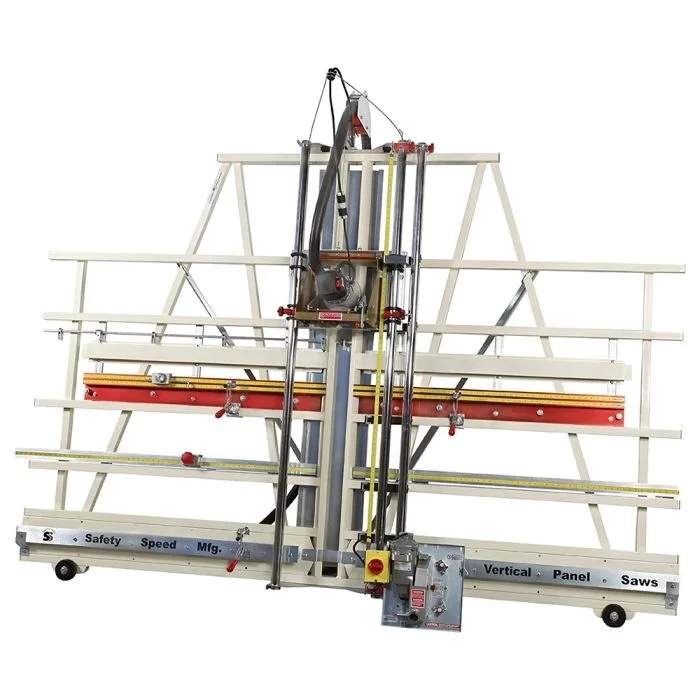

The SR5U is equipped with a heavier duty worm drive motor, a 3+ Hp router motor and aluminum material rollers. Photos are shown with a stand, and wheels which are optional accessories. This machine is perfect for cabinet shops, composite panel fabrication and other applications where both panel sizing and panel routing are required functions. Ask about our V-grooving package.
More Information
| Manufacturer |
Safety Speed Cut |
| Condition |
New |
| Features |
- 10 ft. welded steel frame
- Chrome-plated 1.75″ guide tubes
- 8 Nylatron roller bearing system
- Adjustable vertical and horizontal rulers
- Quick change from vertical to horizontal cutting
- Thin material pressure guard 4 material clamps
- Integrated dust collection bonnets
- Solid aluminum material rollers
- Enclosed counterweight system
- Adjustable floating router head
- MID-WAY FENCE flip stop
- 2 Blind dado stops
- Extended warranty
- TUV certified to UL/CSA standards
- Extended warranty
|
| Video |
|
| Type |
Panel Saw / Router Combo |
| Dimension |
124″ × 17″ × 92″ |
| Frame Length |
120″ |
| Maximum Cutting Height |
62″ |
| Maximum Rip Cut |
Unlimited |
| Maximum Cutting Depth |
1.75″ |
| Cutting Accuracy (Straight / Square) |
1/64″ |
| Blade Diameter |
8″ |
| Saw Motor Amperage |
13 Amps |
| Motor Voltage (Router / Saw) |
120 V |
| Router Motor Amperage |
15 Amps |
| Saw Motor Horsepower |
3 HP |
| Maximum Cutting Thickness |
1 3/4″ |
| Router Motor Horsepower |
3+ HP (Heavy Duty) |
| Rollers Material |
Solid Aluminum |
