Rim Exit Device, Fail Secure – Sargent

Description

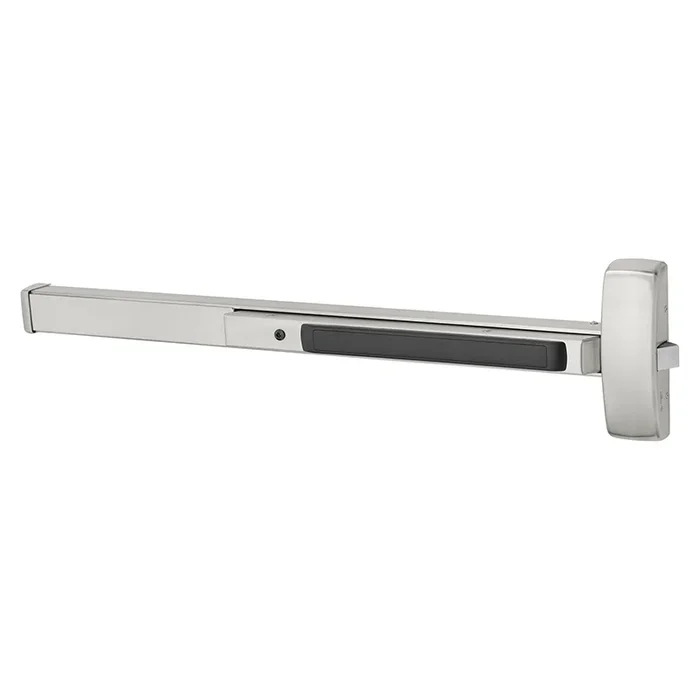

Sargent 8876F-24V ETJ LHR 32D Fail Secure Rim Exit Device

Sargent 8876F-24V ETJ LHR 32D Rim Exit Device, Fail Secure is a Grade 1 rim exit bar designed for superior security and reliability in commercial settings. This 36-inch device features a wide stile pushpad that ensures easy operation while accommodating electric trim functions with its J keyed electric lever. The fail secure design provides added safety, making it ideal for high-traffic areas. Constructed to exceed ANSI/BHMA Grade 1 requirements, the 8876F offers robust performance and durability. Its modular design minimizes maintenance needs, ensuring it can withstand the rigors of daily use in a variety of environments. The exit device is field reversible, allowing for flexible installation on both left-hand and right-hand doors.Compatible with wood or metal doors between 1-3/4″ and 2-1/4″ thick, the device accommodates various door widths, from 24″ to 48″, without the need for cutting. It is UL Fire and Panic listed, ensuring adherence to safety standards.With features like hex key dogging and a satin stainless steel finish, the Sargent 8876F-24V ETJ enhances both security and aesthetics. Trust this exit device to deliver reliable performance that meets your building’s demands while providing peace of mind.

Rim Exit Device, Fail Secure

Grade 1 Rim Exit Bar, Wide Stile Pushpad, 36″ Device, Device to Accept Electrified Trim Function, J Keyed Electric Lever, Fail Secure, Hex Key Dogging, Satin Stainless Steel Finish, Field Reversible

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

The 8800 series is designed for standard width stile applications on wood and metal doors.

The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent’s full line of exit devices.

Door Types: Wood or metal 1-3/4″(44mm) Thick Door; Over 1-3/4″ specify thickness and order as a 31- prefix.

Door Widths:E Rail – 24″ to 32″ (61cm to 81cm) No cutting required for 32″ door;F Rail – 33″ to 36″ (84cm to 91cm) No cutting required for 36″ door;J Rail – 37″ to 42″ (94cm to 107cm) No cutting required for 42″ door; G Rail – 43″ to 48″ (110cm to 122cm) No cutting required for 48″ door

Features:

• Single point rim latching device
• Single door & double door applications with mullions
• Quiet operation and solid security
• Devices are ANSI A156.3 – Grade 1
• UL Fire and Panic listed

Attributes

Accessible: Yes

Ada Compliance: Yes

Ansi: ANSI/BHMA A156.3

Baa Qualified: Yes

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: Rim

Device Length: 36″

Device Type: Rim

Dogging Options: Hex Key Dogging

Door Material: Metal or Wood

Door Thickness: 1-3/4″ – 2-1/4″

Door Width: 33″ to 36″

Electric Options: Fail Secure

Finish: 630/US32D

Finish Family: Matte Silver

Fire Rated: No

Fire Rating: No

Grade: Grade 1

Handing: Left Hand Reverse

Includes Cylinders: Yes

Includes Trim: Yes

Installation: Commercial

Limited Warranty: 5 Years

Mechanical Function: Device to Accept Electrified Trim

Minimum Stile Size: 4-3/4″

Origin: USA

Pack Height: 6″

Pack Length: 38″

Pack Qty: 1

Pack Volume: 1710 in³

Pack Width: 7.5″

Physical Appearance: Wide Stile Pushpad

Restrictions: None

Reversible: Yes

Series: 8800 Series Rim Exit Devices

Ship Weight: 18 lbs.

Strike Standard: 649

Subtype: Rim Exit Devices

Trim Design: Keyed Electric Lever

Trim Part No: 776-8 ETJ 24V LHRB 26D

Trim Type: Lever

Type: Exit Devices

Ul Listing: UL10C & UL305

Unit of Measure: Each
